Item#: N82E16815158046

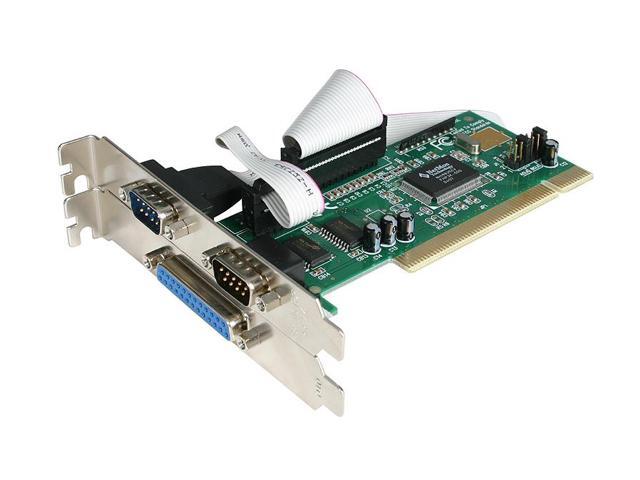

StarTech PCI2S1P Serial Parallel Combo Card with 16550 UART

(3)
Write a Review
  • PCI to Parallel / Serial Port Card
  • Data Transfer Rate Serial Data Transfer Rate: Up to 920 Kbits/sec.
  • Parallel Data Transfer Rate: Up to 1.5 Mbits/sec.

ICON Loading...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews
  • newegg One Parallel Port The StarTech PCI2S1P features a parallel port to add additional high-speed parallel capability to your computer. Just connect your computer with parallel port devices such as printers or scanners easily!
  • newegg Two Serial Ports The StarTech PCI2S1P features two 9-pin serial ports to add additional serial capability to your computer. Just connect your computer with serial port devices such as modems easily!
  • newegg PCI Interface The StarTech PCI2S1P features a PCI interface compliant with Plug-n-Play. Simply install the card into your PC's free PCI slot without powering down the system!

Learn more about the STARTECH PCI2S1P

Model

|
Brand
StarTech
Model
PCI2S1P

Details

|
Type
PCI to Parallel / Serial Port Card
External Ports
1 - DB25 Female
2 - DB9 Male
Data Transfer Rate
Serial Data Transfer Rate: Up to 920 Kbits/sec.
Parallel Data Transfer Rate: Up to 1.5 Mbits/sec.
Operating Systems Supported
Windows 95/98/NT4/ME/2000/XP/Server 2003, DOS and Linux
Specifications
Bus Type: PCI / PCI-X (5 / 3.3V)
Card Type: Standard Profile (LP bracket incl.)
Chipset ID: ASIX/MosChip - MCS9835CV
Connector Type(s): PCI / PCI-X (Universal 3.3 & 5V ; 32-bit) Male
External Ports: DB-25 (25 pin ; D-Sub) Female
DB-9 (9 pin ; D-Sub) Male
FIFO: Serial: 32 BytesParallel: 16-Bytes
Humidity: 5~85% RH
Included in Package: DB9 Ribbon Cable
Driver CD
Instruction Manual
Low Profile Brackets
PCI 2S1P Card
Interface: Parallel
Serial
Max Baud Rate: 115.2 Kbps
Maximum Data Transfer Rate: Up to 1.5 Mbits/sec.
Operating Temperature: -10°C to 80°C (14°F to 176°F)
OS Compatibility: Windows® 8 / 8.1 (32/64bit), 7 (32/64), Vista (32/64), XP (32/64), XP Embedded, POS Ready 2009, Embedded System 2009, CE 5.0 / 6.0, 2000, 98SE, 95, DOS
Windows Server® 2012, 2008 R2, 2003
Linux
Port Style: Integrated on Card
Ports: 2
Product Height: 120 mm [4.7 in]
Product Length: 120 mm [4.7 in]
Product Weight: 70 g [2.5 oz]
Product Width: 20 mm [0.8 in]
Serial Protocol: RS-232
Shipping (Package) Weight: 0.2 kg [0.5 lb]
Storage Temperature: -20°C to 100°C (-4°F to 212°F)

Features

|
Features
Compatible with all versions of Windows including Windows XP
IRQ sharing eliminates conflicts between multiple cards
Parallel port supports EPP, ECP, SPP and BPP

Dimensions & Weight

|
Dimensions
4.7" x 2.2"
Weight
0.49 lbs.(include package)
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 0 day
  • Limited Warranty period (labor): 1 year
  • Read full details

Customer Reviews of the STARTECH PCI2S1P

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Jochen S.
  • 7/15/2008 8:11:59 AM
  • Ownership: 1 day to 1 week
  • Verified Owner

2 out of 5 eggsNot compatible with Vista x64 ?

Pros: Adds 2 serial and 1 parallel port to your computer. Very useful if you would like to connect older hardware to a new computer that does not have these ports.

Cons: The product is supposed to work with Vista 64bit. Confirmed this also on StarTech's website. Are installing the product Windows recognizes the hardware and installs drivers. The ports show in Device Manager as working properly. However after a reboot Windows won't start up anymore and stop with a blue screen. Only way to resolve this was to remove the hardware again.

1 out of 1 people found this review helpful. Did you? Yes No

  • Michael K.
  • 2/4/2008 9:30:30 AM
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsWorks perfectly

Pros: Buy a new PC and you won't be getting any serial or parallel ports. That's a problem if you have old devices that you would like to attach. I needed two serial ports and one parallel port on my new Dell XPS420 PC.

The Startech 16C550 was easy to install and worked immediately. I didn't need to use the included CD. The PC recognized the card and did what was necessary. The serial ports configured themselves to com 4 and com 5 and the parallel port to LPT1. My device software wanted lower com port numbers so I renumbered the ports in the Vista device manager as 1 and 2. No problems, they worked perfectly.

Cons: None

2 out of 2 people found this review helpful. Did you? Yes No

  • Anonymous
  • 6/15/2007 4:32:48 PM
  • Ownership: 1 day to 1 week

2 out of 5 eggsSerial disappointment

Pros: Easy to install.

Cons: Vendor represents: Serial Data Transfer Rate: Up to 920 Kbits/sec.

It wouldn't go faster than 115Kbaud, under Hyperterminal, despite installation of latest drivers. Unfortunately, relies on the same MosChip MCS9835CV chip, as a SYBA Model SD-PCI-2S1P uses, with the same disappointing result.

1 out of 1 people found this review helpful. Did you? Yes No
