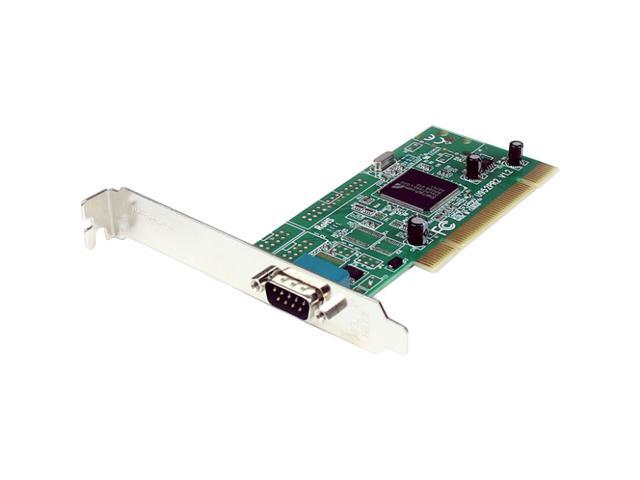

StarTech 1 Port PCI 16950 RS-232 Dual Voltage / Dual Profile Serial Card Model PCI1S950DV

Transfer rates up to 420 Kbps
Standard and low profile/half-height bracket included
Universal PCI card works in both 3.3 and 5.0 volt PCI/PCI-X slots for maximum compatibility

Overview
Specifications
Warranty & Returns
Reviews
Q&A

This PCI Serial Card offers high performance 16950 UART channels/ports for connecting any new or legacy serial peripheral, with data transfer rates of up to 460kbps.

A cost-effective solution for connecting serial modems, POS devices, printers, ISDN terminal adapters and more, the PCI serial card offers dual voltage support, allowing you to use a PCI (5V) or PCI-X (3.3V) slot for installation.

A versatile solution, the PCI Serial card supports Windows Vista, XP, ME, 2000, 98, 95 and NT4, and offers IRQ sharing and a PCI plug and play interface to guarantee convenient, hassle-free serial device connections. This high quality PCI Serial card is backed by StarTech.com's Lifetime Warranty and free lifetime technical support.

One Serial Port The StarTech PCI1S950DV features one 9-pin high-speed RS-232 serial port to add serial capability directly to your computer for connections with various serial devices such as scales, touchscreens, magnetic card readers, bar code scanners, receipt printers and label printers in POS retail applications, bank teller workstations or ATMs.
PCI Interface The StarTech PCI1S950DV features a PCI interface compliant with Plug-n-Play. Simply install the card into your PC's free PCI slot without powering down the system!

Learn more about the STARTECH PCI1S950DV

Model

Brand: StarTech

Model: PCI1S950DV

Details

Type: PCI to Serial Port Card

External Ports: DB-9 (9 pin D-Sub) Male

Data Transfer Rate: 460Kbps

Operating Systems Supported: Windows® 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), 2000, 98SE, 95
Windows Server® 2012, 2008 R2, 2003 (32/64)
Linux

Specifications: Bus Type: PCI / PCI-X (5 / 3.3V)
Card Type: Standard Profile (LP bracket incl.)
Chipset ID: PLX/Oxford - OX16PCI952
Connector Type(s): PCI / PCI-X (Universal 3.3 & 5V 32-bit) Male
External Ports: DB-9 (9 pin D-Sub) Male
FIFO: 128 Bytes
Humidity: 5~85% RH

Features

Features: 128-byte deep FIFO per transmitter and receiver
Automated in-band software flow control using programmable Xon/Xoff in both directions
Automated out-of-band hardware flow control using RTS / CTS and/or DSR / DTR
Maximum data transfer rate of 460 Kbps
One high performance 16C950 UART channels
PCI 2.2 and PCI Power Management 1.0 compliant
UART’s fully compatible with 16C550 type devices

Dimensions & Weight

Dimensions: 4.70" x 0.850" x 4.70" (H x W x L)

Weight: 0.33 lb.

Packaging

Package Contents: Driver CD
Instruction Manual
Low Profile Bracket
PCI / PCI-X Serial Card
