Item#: N82E16815158314

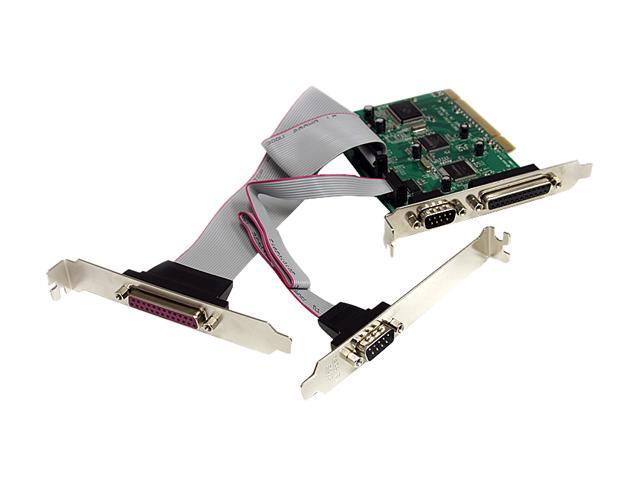

StarTech 2S2P PCI Serial Parallel Combo Card with 16C1050 UART Model PCI2S2PMC

  • PCI to Parallel / Serial Port Card
  • 1.5Mbps (Parallel) Data Transfer Rate

ICON Loading...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

The PCI2S2PMC 2S2P PCI Serial/Parallel Combo Card (16C1050 UART) adds 2 RS232 serial, and 2 IEEE-1284 Parallel ports to your system, through a PCI slot.

Supporting RS232 speeds up to 115.2 Kbps and parallel rates up to 1.5 Mbps, the serial/parallel adapter offers the added connectivity needed for industrial and business applications, while only occupying a single 3.3/5V PCI slot.

This 2S-2P card offers a broad operating system compatibility list that includes Windows 7, Windows Server 2003, XP, DOS and Linux, for simple integration into mixed environments.

  • newegg Add Serial and Parallel Connectivity The StarTech PCI2S2PMC is designed to add two RS232 serial ports (one port onboard, one port via ribbon cable) and two IEEE 1284 Parallel ports (one port onboard, one port via ribbon cable) to any PCI-equipped computer for easy connection to legacy equipment.
  • newegg Broad Compatibility Universal support for 32/64-bit, 3.3/5V PCI or PCI-X slots makes this a suitable expansion card for almost any system

Learn more about the STARTECH PCI2S2PMC

Model

|
Brand
StarTech
Model
PCI2S2PMC

Details

|
Type
PCI to Parallel / Serial Port Card
External Ports
2 - DB-25 (25 pin; D-Sub) Female
2 - DB-9 (9 pin; D-Sub) Male
Data Transfer Rate
1.5Mbps (Parallel)
Operating Systems Supported
Windows 7 (32/64bit)/ Vista(32/64)/ XP(32/64)/ 2000/ NT 4.0/ DOS 6.2
Windows Server 2003(32/64)
Linux 2.6.x
Specifications
Bus Type: PCI / PCI-X (5 / 3.3V)

Card Type: Standard Profile (LP bracket incl.)

Port Style: Integrated on Card

Industry Standards: PCI Local Bus Specification, Revision 2.3

Chipset ID: Moschip MS9865IV-AA(2P) SystemBase SB10C1052PCI(2S) Pericom PI7C8140A

Serial Protocol: RS-232

Max Baud Rate: 115.2 Kbps

Data Bits: 5, 6, 7, 8

FIFO: 256 byte

Flow Control: None, Xon/Xoff, RTS/CTS

Parity: None, Odd, Even, Space, Mark

Stop Bits: 1, 1.5, 2

Supported Protocols: RS232, EPP, ECP, SPP, PS2

Operating Temperature: 0 degree C to 85 degrees C (32 degrees F to 185 degrees F)

Storage Temperature: -45 degrees C to 150 degrees C (-49 degrees F to 302 degrees F)

Humidity: 0~60% RH

Features

|
Features
2x 16C1050 compatible UART serial ports, and 2x IEEE 1284 Parallel ports

Supports RS232 baud rates up to 115.2 Kbps

256 Byte deep transmit/receive FIFO

Universal 3.3/5V PCI card

Compliant with PCI Local Bus Specification, Revision 2.3

Dimensions & Weight

|
Dimensions
5.2" x 0.7" x 3.5"
Weight
2.8 oz.

Packaging

|
Package Contents
1 - PCI 2S2P Combo Card
1 - Ribbon Cable with bracket
2 - Low Profile Brackets
1 - Driver CD
1 - Instruction Manual
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): Lifetime
  • Limited Warranty period (labor): Lifetime
  • Read full details
