Item#: N82E16815201054

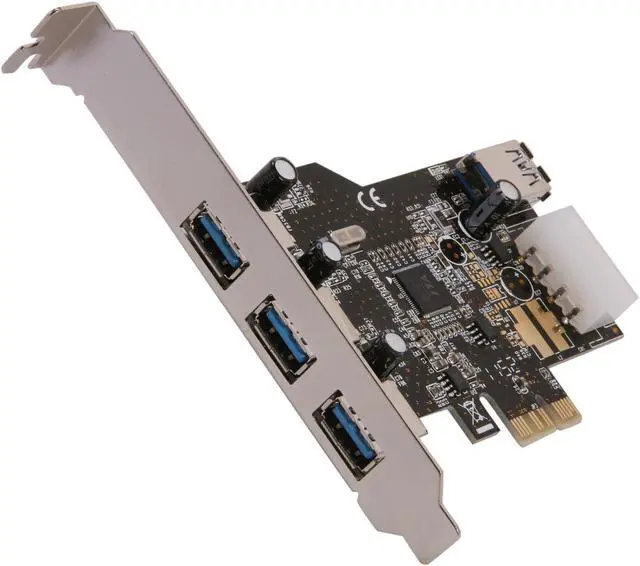

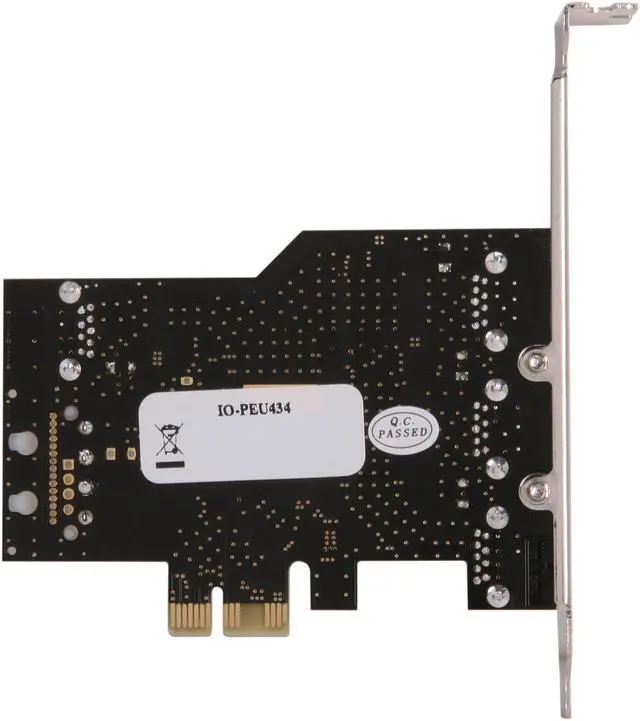

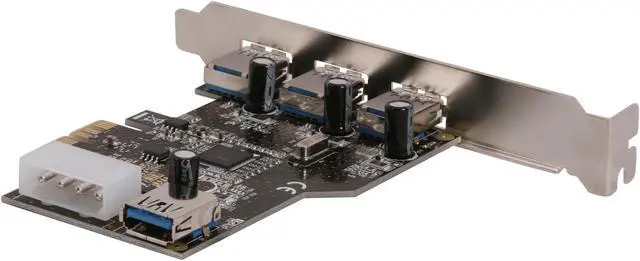

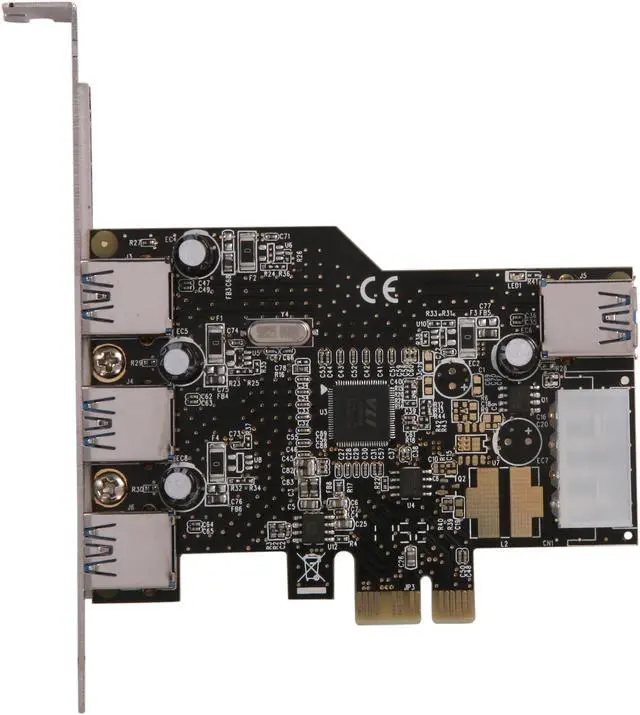

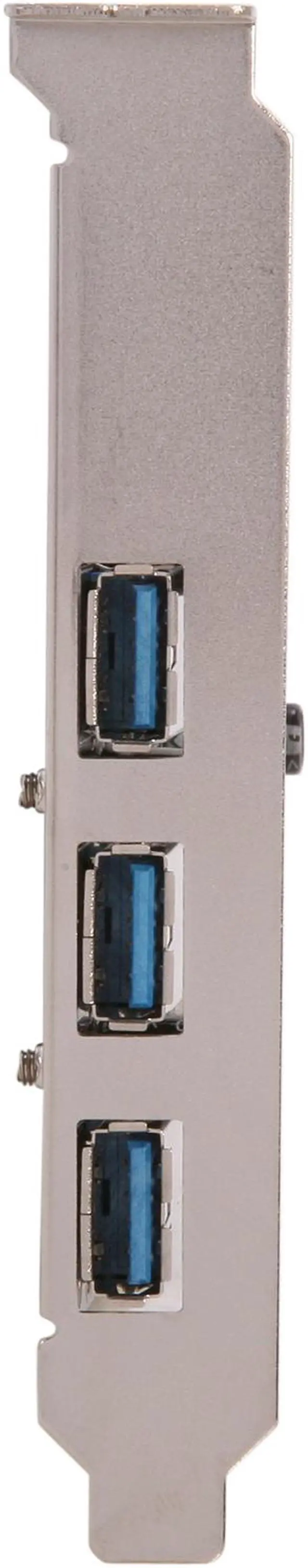

Koutech 4-Port SuperSpeed USB 3.0 PCI Express (x1) (3x Ext + 1x Int) with 4-pin Molex PoModel IO-PEU434

  • PCI Express to USB Card
  • USB 3.0
  • Up to 5.0 Gbps Data Transfer Rate
ICON Loading...

Easily add four USB 3.0 ports (Three external and one internal) to your computer. Koutech’s PCI-e to USB 3.0 solution, IO-PEU434, provides ultra-fast data transfers at up to 5Gbps to address the needs of higher performance connections between the PC and increasingly sophisticated peripherals. USB 3.0 is backward compatible with USB 1.0/1.1/2.0 devices and fully plug-n-play and hot swap compatible. The IO-PEU434 is a great way to take advantage of the latest USB 3.0 data transfer technology.

  • newegg PCI Express to USB 3.0 Solution The Koutech IO-PEU434 uses one free PCI Express (x1) slot to provide four USB 3.0 ports (3 external + 1 internal). With up to 5Gbps maximum transfer rate, the IO-PEU434 offers an ideal connection for digital cameras, scanners, printers, external CD/DVD/Blu-ray writers, hard disk drives, flash memory drives and etc. (To meet available maximum transfer speed, high quality USB 3.0 cables and devices are required.)
  • newegg External Power Connector The IO-PEU434 has built-in 4-pin SATA power connector for added power source to better support power hungry bus-powered devices.

Learn more about the Koutech IO-PEU434

Model

Brand
Koutech
Model
IO-PEU434

Spec

Type
PCI Express to USB Card
External USB Ports
3x USB Ports
Internal USB Ports
1x USB Port
Standard
USB 3.0
Data Transfer Rate
Up to 5.0 Gbps
Operating Systems Supported
32-bit & 64-bit Windows Vista/Server 2008/Windows 7/Windows 8
Specifications
Fully compliant with one-lane (x1) PCI Express 2.0 specification

Three (3) external 5Gbps SuperSpeed USB 3.0 ports

One (1) internal 5Gbps SuperSpeed USB 3.0 port

SuperSpeed USB 3.0 offers 10 times performance increase over Hi-Speed USB 2.0?

USB 3.0 complies with Intel eXtensible Host Controller Interface (xHCI)

SuperSpeed USB 3.0 is backwards compatible with USB 1.0/1.1/2.0 devices (data transfer rate at 1.5/12/480Mbps)

SuperSpeed USB 3.0 is fully compatible with original USB system, peripherals and cables

Built-in with 4-pin Molex Power Connector for added power source to better support power hungry bus-powered devices

Ideal connection for digital cameras, scanners, printers, external CD/DVD/Blu-Ray writers, hard disk drives, flash memory drives and etc.

Fully Plug-N-Play and Hot Swap compatible

Electrical Specifications:
Power Input: 4-pin Molex power connector
Output Voltage per Port: DC +5V
Output Current per Port: 900mA (max)

Packaging

Package Contents
One (1) PCI Express card
One (1) low-profile bracket
Software drivers CD
User manual

Quick Info

Warranty

  • Limited Warranty period (parts): 2 years
  • Limited Warranty period (labor): 2 years


Customer Reviews of the Koutech IO-PEU434

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Oscar L.
  • 10/13/2013 11:49:34 AM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

1 out of 5 eggsSimply stated...do NOT buy!

Pros: None

Cons: Simply stated...do NOT buy! One star because its a required field.

I have a Win 7 SP1 install on an Intel-based PC. The card was received WITHOUT the normal NewEgg paperwork - bad omen. I installed the card, including attaching a spare 4-pin Molex.

When I went to install the driver the install errored out, "Windows cannot verify the digital signature for the drivers required for this device. A recent hardware or software change might have installed a file that is signed incorrectly or damaged, or that might be malicious software from an unknown source. (Code 52)".

I went to the driver site noted in the "User's Manual" that came with the card and downloaded and appeared to install the driver provided, dated 6/28/2013 (DL-0313102). Restarted and went into Device Manager...yellow triangle and the same error message.. Uninstalled and tried again - same result.

I then went to the Koutech site downloaded and appeared to install the only driver they had (dated 3/2012). Same problem.

I will now "gently" remove the card from the system and return it to NewEgg for refund, left to run my nice new external USB 3.0 HDD off a USB 2.0 port.

Seriously urinated!

Other Thoughts: Now who do I trust to have a card - and drivers - that work?

Did you find this review helpful? Yes No

  • Anson S.
  • 4/18/2013 9:41:00 AM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsNO DRAMA

Pros: Windows 8 recognized it right away without using the CD. But I still went to their website to download their latest driver.

Cons: NONE YET

Other Thoughts: Newegg is the best. I paid for and received the very next day business. Thanks

Did you find this review helpful? Yes No

  • Javier L.
  • 2/1/2013 9:40:06 AM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week

3 out of 5 eggsEasy install, great speed, but couldn't handle two drives.

Pros: Easy install, just popped it in, powered up, threw in the CD, installed drivers, and restarted.

Got 100 MB/S transfer speeds when moving from my internal HD to a 3.0 USB Toshiba 1.5TB and a 3.0 USB WD 500 GB external drive (at different times).

Three outside and one inside 3.0 USB ports on a small card is a good deal for older systems.

I think the internal port has some potential in the future in regards to internal upgrades.

Cons: When trying to use two 3.0 USB external drives at the same time (one was copying files from the mobo, the other was having files downloaded to them), the card would provide fast transfer speeds but would crash after a minute or so of continuous use.

The only remedy I could find would be to not tax the card or just use one drive at a time through the card.

Another smaller, more specific con to my system was having to rearrange my PCI X cards due to the 4 pin power cable that was required.

Other Thoughts: Could drive if you want to get the most out of your 3.0 external drives, cheap price, and easy install.

Did you find this review helpful? Yes No

  • Anonymous
  • 10/11/2012 3:55:36 PM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

3 out of 5 eggsYou might need a power cable adapter

Pros: I plugged it in to a PCI-Express slot, turned on the computer, and then installed the drivers using the setup program. It seemed to install easily, but I am not sure it works yet.

Cons: This card apparently needs power from a Molex plug to work. My computer only has SATA power connectors. I had to order a SATA to LP4 Molex Power Adapter Cable.

Other Thoughts: I would think that computers that have PCI-Express are likely to have SATA power cables. They should really include an adapter cable with this board.

2 out of 3 people found this review helpful. Did you? Yes No

  • Jesus D.
  • 7/7/2012 7:08:09 AM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsAwesome Performance from Pcie x1

Pros: Awesome, works as intended. Easy upgrade.

Cons: None Yet.

2 out of 4 people found this review helpful. Did you? Yes No
