Question 1

- VT6426CHIPSET PC I Host Controller                                                                                           - 2 internal ports                                                                                                  - 1 external is shared by one of the internal, What is the external port connector cord or socket?

Accepted Answer

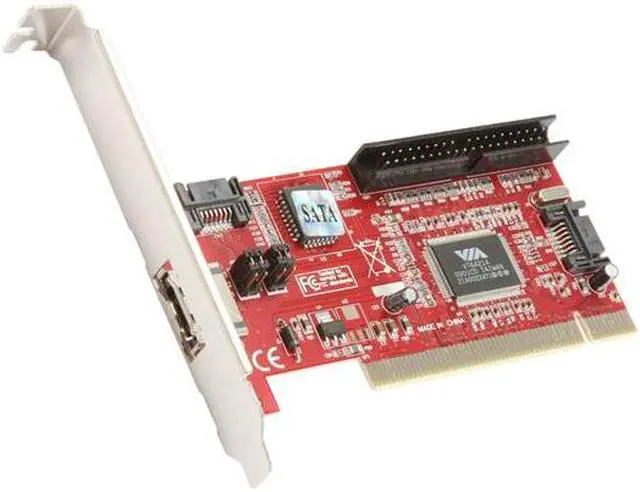

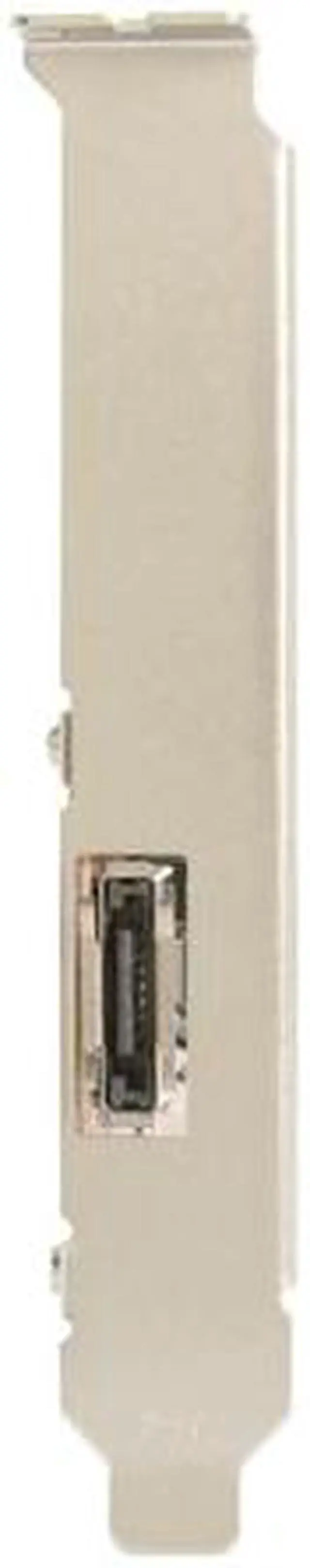

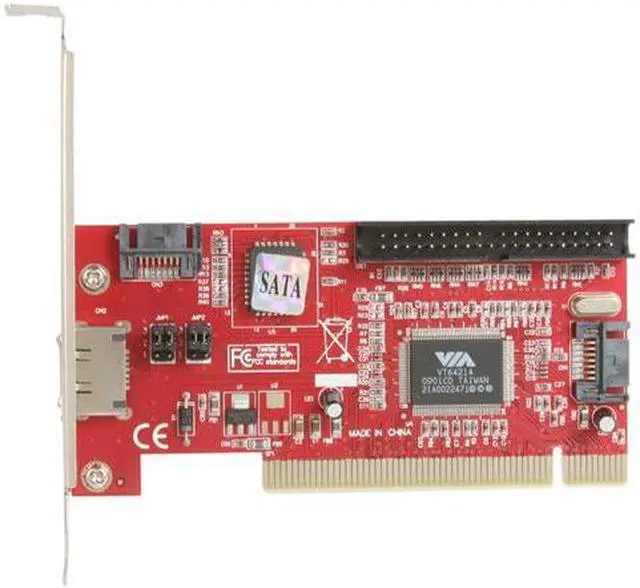

Glad to help.  This is basically a two port only card.  You have one IDE ribbon cable port for devices that still use this connection.  I have a very high quality DVD reader/burner that has an IDE connection.  You will notice that this card uses a PCI slot, which is slower than a PCIe X 1 slot, so you have two Sata 1 ports, but you can only use one or the other, therefore a two port card.  The external Sata port is e-Sata, the internal Sata port is standard Sata.

Question 2

I want to build a RAID1 using two 320GB EIDE drives I own.  This will be in an old Dell Dimension 4500.  Will this card support RAID on IDE drives and will I be able to boot XP from the drives attached to the card?  Speed isn't critical.  This is mainly for experimenting and testing.

Accepted Answer

As per manufacturers page: SATA host controller chip with 32-bit interfacing
Compliant with SATA 1.0 specification
Supports two independent SATA ports with data transfer rate up to 1.5Gb/s
Built-in 256 bytes FIFO per port for fast read/write operations
Supports microsoft generic IDE operation and intel bus master DMA operations
RAID function optional
Supports RAID function 0 and 1
Adjustable stripe size for RAID 0
Supports co-exist RAID set and Non-RAID HDD
Allow HDDs with different sizes to be configurated in a RAID set

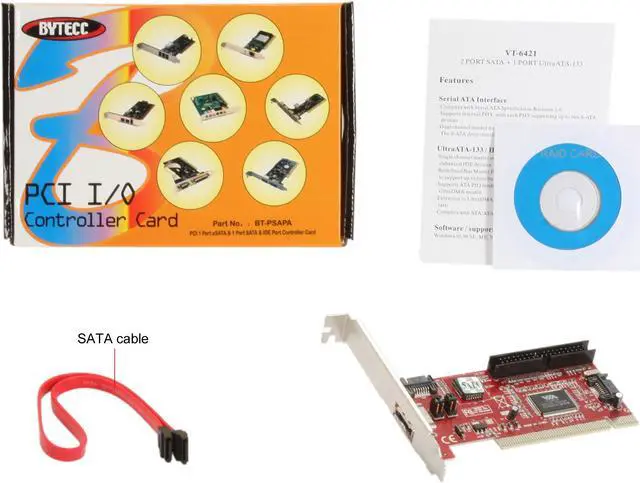

Contents:
PCI SATA Controller Card
1 x Sata cable.
1 x User Manual
1 x Driver CD

I have not tried raid but it should work.

Question 3

Will this work with Windows 2003 SP2 server? I do not need to boot the OS, just add in storage

Accepted Answer

I would think it should.  I use it with Windows Home Server V1 to add storage.  WHS is based on Windows Server 2003.

Question 4

I have Windows 7 and data on a SATA HHD, but cpu fried ,as well as Mobo and won't run longer than 5 minutes. I have extra excellent tower, however it's mobo doesn't have SATA power connection for HHD, will this card make a Windows 7 HHD usable?

Accepted Answer

Yes and No. You motherboard will need to support booting from sata and will be listed in the bios if it is available.

Brand	BYTECC
Model	BT-PSAPA

Type	PCI to SATA / IDE Card / eSATA
External Ports	1 x e-SATA
Internal Ports	1 x SATA 1 x IDE(UltraATA 133)

BYTECC Add-On Card Model BT-PSAPA

Learn more about the BYTECC INC BT-PSAPA

Customer Reviews of the BYTECC INC BT-PSAPA

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Item#: N82E16815283030
