IOGEAR AVIOR 2-Port HD Audio / Video Splitter GHSP8112

(1) |

Write a Review

HDMI Interface
1 x HDMI

The AVIOR's 2-Port HD Audio / Video Splitter is used to take high definition audio and video from a single HDMI media source and direct it to 2 separate HD TVs, displays or projectors with support for 3D. Being HDCP compliant, the unit is able to support the highest quality HD video and multi-channel digital audio; enabling the splitting of HD content from DVR / Set-top boxes, Blu-ray players, Media servers and other HD or non HD devices.

Distribute Full HD 1080p (24/60Hz) or your 3D content with multi-channel digital audio and 12-bit Deep Color.

The AVIOR's 2-Port HD Audio / Video Splitter can cascade up to 3 levels supporting up to 8 HDMI signals. Cascading distance from source to device 6ft, device to device 50ft and device to display 65ft; makes a total of 121ft through cascading.

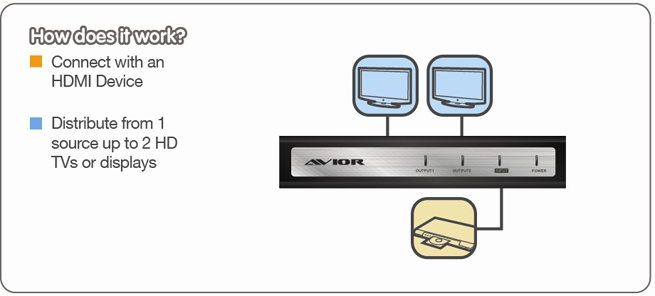

2-Port HDMI Splitter Equipped with 1x HDMI input and 2x HDMI outputs, the IOGEAR AVIOR GHSP8112 is capable of splitting and outputting one HDMI signal to two display devices, ideal for multi-room, digital signage, game rooms, sports bars, place of worship, schools, tradeshow / expo, etc. (Backward compatible with DVI devices with HDMI to DVI adapter, Part No. GHDFDVIMW6, sold separately)
Superior Performance HDCP compliant, this HDMI splitter is a high performance device that boasts the state of the art specifications including full 3D support and 12-bit Deep Color support. It also auto-detects the highest common resolution of connected displays. (For HD media sources that support auto video resolution scaling.)
Cascadable Design This unit supports 3-level daisy chain configuration allowing you to distribute the content up to 8 HDMI devices. (If your media content is HDCP enabled, the splitters will only support up to the maximum HDCP keys that are available (127 keys). In other words, with HDCP enabled content, the splitters can support up to 127 displays. If your media content is not HDCP enabled, then the splitters can support the full three-level cascade (8 displays).)

Learn more about the IOGEAR GHSP8112

Model

Brand: IOGEAR

Model: GHSP8112

General

Type: Video Splitter

Interface: HDMI

Features

Features: Distribute a single HD media source to up to 2 HDMI displays

Works with DVR / Set-top boxes, Blu-ray / DVD players, video game consoles, media servers, computers, and many more

Full 3D Support

Supports high-resolution video
- HDTV resolution of 480p, 720p, 1080i and 1080p

Auto-detects the highest common resolution of connected displays*

Supports 12-bit Deep Color

Cascadable***

LED indication of displays

HDCP Compliant

Backward compatible with DVI devices with HDMI to DVI adapter**

* Note: For HD media sources that support auto video resolution scaling.
**Via HD (F) to DVI (M) Adapter - IOGEAR Part No. GHDFDVIMW6
***HDCP Limitation While Cascading:
If your media content is HDCP enabled, the splitters will only support up to the maximum HDCP keys that are available (127 keys). In other words, with HDCP enabled content, the splitters can support up to 127 displays. If your media content is not HDCP enabled, then the splitters can support the full three-level cascade (8 displays).

Specifications

Ports In: 1 x HDMI

Ports Out: 2 x HDMI

Specifications: Data Rate: Up to 2.25Gbps
Video Resolution: 480i / 480p / 720p / 1080i / 1080p; VGA / SVGA / XGA / SXGA / UXGA

Cable Connections
Input: HDMI
Output: HDMI

Connectors (Input): 1 x HDMI Type A 19 Pin Female
Connectors (Output): 2 x HDMI Type A 19 Pin Female

LEDs
Power On: 1
Port Status: 2 (Output)

Power
Voltage: DC 5V
Amps: 375mA
Power Consumption: 1.875 Watts (max)

Environment
Operation Temperature: 0~50 degree
Storage Temperature: -20~60 degree
Humidity: 0-80% RH (Non Condensing)

Case: Metal
Dimensions: 4.94" x 3.2" x 1"

System Requirements

Others: Display
- 1 HDMI input
Media Source
- 1 HDMI output

Packaging

Package Contents: 1 x 2-Port HD Audio/Video Splitter
1 x Power Adapter
1 x Quick Start Guide
1 x Warranty Card

Misc

Variation: 2-port

Quick Info

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years

Manufacturer Contact Info
