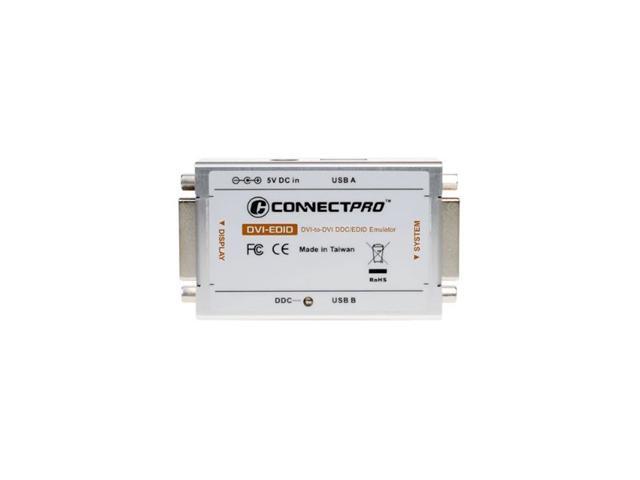

Connectpro DVI-EDID-KITU1 Video Emulator

Overview
Specifications
Warranty & Returns
Reviews
Q&A

The ConnectPRO DVI-EDID-KITU1 Video Emulator is designed to solve the problem that computers can sometimes lose the Extended Display Identification Data (EDID). The DDC EDID data is vital for the video extension; it is a data structure provided by a computer display to describe its characteristics to a graphics card.

Learn more about the ConnectPRO DVI-EDID-KITU1

Model

Brand: CONNECTPRO

Model: DVI-EDID-KITU1

Details

Specifications: Power supply: If required, USB or 5V DC adaptor

Power LED / Default EDID: Green

Clone EDID: Push button switch

Clone indication: Change to Orange color

Resolution: Up to 1920 x 1200@60 Hz, Up to 3840 x 2400 (with Dual-Link)
Connectors: HDB-15 Female x 2 (on VGA DDC Emulator), DVI-I Female x 2 (on DVI DDC Emulator)

A/D: Analog signal (on VGA DDC Emulator), Digital Signal (DVI-I) (on DVI Emulator)

Video level: 0.700, 0.000 ( 0.700 Vp-p )

Sync. support: Separate

Features

Features: Store EDID information for DVI display with full EDID Cloning of existing display.

True DDC emulation: Support dual page DDC for compatible resolutions

Supplies standard EDID information when no cloned information is available

Installs in seconds: Easy and Compact design for installation and operation

Interface Powered by DVI connector or optionally externally supplied by USB connector or 5V power supply

Multiple options for providing external power when necessary

USB pass-through port means no USB port is wasted when using USB power option. Connect USB devices to USB A port and use them as if directly connected to computer.
