Blackmagic Design ATEM Production Studio 4K Live Switcher SWATEMPSW4K

  • Pin It
  • Email this page
ICON Loading...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

The World’s Most Advanced Live Production Switchers.

Create stunning multi camera live production with the high-performance ATEM Production Studio 4K Live Switchers. It features all the video and audio connections you need. Four 6G-SDI inputs and four HDMI inputs let you easily connect to large Ultra HD monitors for an amazing big screen video experience. With two balanced XLR audio inputs, and the Hi-Fi audio inputs, it’s easy to connect any audio source. You get powerful features – like chroma key, creative transitions, media pool, downstream keyers, audio mixer, multi view and more! Moreover, its front panel with dedicated buttons, along with included software control panel makes handy operation.

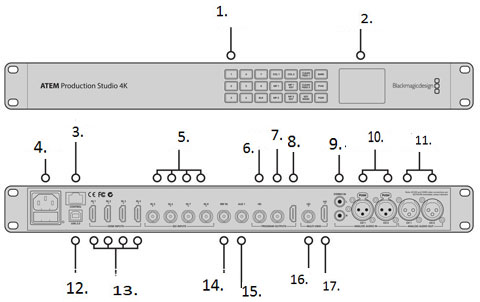

detailed view and application

  1. Illuminated Input Selection Buttons
  2. LCD Preview Output
  3. Ethernet
  4. Power Connection
  5. SDI In
  6. HD-SDI Out
  7. SDI Out
  8. HDMI Out
  9. Stereo L/R
  10. Analog Audio In
  11. Analog Audio Out
  12. USB2.0
  13. HDMI In
  14. REF In
  15. AUX Out
  16. HD-SDI Out
  17. HDMI Out
  • newegg Amazing Ultra HD Take your live production beyond broadcast quality. The ATEM Production Studio 4K Live switcher take advantages of super-fast 6G-SDI and HDMI 4K technology, enabling you to easily connect an Ultra HD television for a fantastic big screen video experience. Its built-in 6G-SDI connections are multi rate, and switch between 270 Mb/s, 1.5 Gb/s, 3 Gb/s and 6 Gb/s data rates for compatibility with SD, HD or Ultra HD equipment all on a single BNC connection. This means you can connect to virtually any SDI and HDMI cameras, monitors and more. When you're doing live events with super large high resolution screens, simply switch the switcher to Ultra HD for incredible image quality.
  • newegg Highest Quality Connections You get the highest quality video and audio connections that switch virtually SD, 720p HD, 1080i HD, 1080p HD and Ultra HD formats. This switcher includes advanced 6G-SDI and HDMI 4K inputs that are SD, HD or Ultra HD switchable, enabling you to easily connect to virtually anything. Every input supports embedded audio mixing and features a frame resynchronizer, so you can use sources without genlock such as consumer HDMI cameras or even computers for live PowerPoint presentations. The built-in two balanced XLR audio inputs allow for connecting professional mixers and a HiFi audio input for consumer equipment like an iPod. Additionally, it includes program and down converted program outputs plus auxiliary outputs, allowing clean feeds, perfect for connecting to giant outdoor LED screens, projectors, disk recorders, monitors and broadcast decks! The multi view outputs are 1080i HD, so you can use any TV or monitor.
  • newegg Creative Transitions This Live Switcher includes a huge range of real time high quality transitions that are available in all SD, HD or Ultra HD resolutions. Use mixes, dips, wipes and more for amazing broadcast quality live switching. Every transition is instantly available and you get full control of the transition type, pattern, length and other attributes. Create a customized ‘on air’ looks using the large choice of wipe patterns.
  • newegg Media pool memory, keying, and audio mixer - all included With its media pool memory, this switcher lets you download still frames and graphics for keying using the two built in media players. Thanks to the included high-quality keying, you can get powerful upstream keyers with luminance, linear, pattern and chroma keying, which can handle everything from green screen shots to graphics and multi-layer special effects. You can also get two independent downstream keyers for logos, titles and other ‘on air’ graphics. Plus, it features a powerful built in multi-channel audio mixer, so you can mix your camera audio and other video sources from both HDMI and SDI inputs, as well as external audio from the analog XLR and HiFi audio inputs. You can even use the audio mixer for direct input mixing, or use audio follow video mixing where the audio automatically crossfades when switching from one input to another.
  • newegg Innovative Design ATEM Production Studio 4K Live switcher features an elegant machined aluminum front panel with dedicated buttons, letting you easily switch auxiliary outputs. You can use the built-in video screen to monitor auxiliary outputs or as technical monitoring to help during set up. With its built-in multi voltage power supply, you can take your switcher anywhere in the world!
  • newegg Software Control Panel The ATEM Production Studio 4K Live Switcher is the beautifully designed ATEM software control panel for both Mac and Windows. With a full visual switcher control panel and parameter palettes for quick switcher adjustments, you can load graphics into the media pool, adjust the audio mixer, control and balance cameras, update switcher settings and more. For the ultimate in portability you can use the ATEM software on a laptop, so you can work easily in small spaces with full control of all the switcher’s features.

Learn more about the Blackmagic Design Pty. Ltd. SWATEMPSW4K


Blackmagic Design


SD Format Support: 625/25 PAL 4:3 and 16:9, 525/29.97 NTSC 4:3 and 16:9
HD Format Support: 1080i50, 1080i59.94, 720p50, 720p59.94.
Media Pool Still Image Format: PNG, TGA, BMP, GIF, JPEG and TIFF.
Resolution Support
HDMI Input Resolutions for Computers: 720 x 480 59.94Hz, 720 x 576 50Hz, 1280 x 720 59.94Hz, 1280 x 720 50Hz and 1920 x 1080 59.94Hz, 1920 x 1080 50Hz, 3840 x 2160 23.98Hz, 3840 x 2160 24Hz, 3840 x 2160 25Hz, 3840 x 2160 29.97Hz.
Minimum monitor resolution of 1366 x 768.
Video Sampling
Color Precision: 10-bit
Color Space: REC 601, REC 709
Colorspace Conversion: Hardware based real time.
Total Video Output: 6
Audio Mixer: 10 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. Analog outputs may be used for separate monitoring.


HDMI Video Input: 4 x HDMI type A, 10-bit SD/HD/Ultra HD 4K switchable. 2 channel embedded audio.
HDMI Program Output: 1 x HDMI type A, 10-bit SD/HD/Ultra HD 4K switchable.
SDI Video Input: 4 x 10-bit SD/HD/Ultra HD 4K switchable. 2 channel embedded audio
SDI Program Output: 1 x 10-bit SD/HD/Ultra HD 4K switchable.
Down Converted SDI Program Output: 1 x 10-bit HD (Ultra HD 4K to HD)
SDI Aux. Output: 1
SDI Compliance: SMPTE 259M, 292M.
Analog Aduio
Audio Input: 2 x XLR. 2 x RCA.
Analog Audio Output: 2 x XLR
SDI Audio Output: 2 Ch embedded into SDI output.


Control Panel Compatibility: Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Broadcast Panel and ATEM 2 M/E Broadcast Panel.
System Requirements
Mac OS X 10.7 Lion or later, and Mac OS X 10.8 Mountain Lion or later.
Windows 7 64-bit or Windows 8 32-bit or 64-bit.


Power Consumption


Sync Input: Tri-Sync or Blackburst
Internal Frame Synchronizers: 8. All inputs.
Quantity of Multi Views: 1
Outputs per Multi View: 1 x HD-SDI and 1 x HDMI

Control Panel Connection: Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network.
Ultra HD 4K: 3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30

Processing Delay: 1 Line

Total Number of Layers: 4
Upstream Keyers: 1
Downstream Keyers: 2
Linear/Luma Keyers: 3
Chroma Keyers: 1
Pattern Generators: 2
Color Generators: 2
Media Pool Still Image Capacity: 20 with fill and key.
Number of Windows: 1 x 10
Routable Windows: 8


ATEM Production Studio 4K lets you connect up to 8 SD, HD or Ultra HD 4K video cameras, disk recorders and computers to do true broadcast quality work. You get all the features you expect from a professional switcher including chroma key, transitions, media pool, downstream keyers, audio mixer, multi view and the world's first 6G-SDI and HDMI 4K video connections

Supports NTSC/PAL/HD/UltraHD 4K @ 10-bit

Supports 4K Resolution Over SDI or HDMI

4 x 6G-SDI & 4 x HDMI Inputs (4k/HD/SD)

Tri-Sync/Blackburst Ref. Sync Input

8 x Built-in Frame Synchronizers

Multiview Monitoring in HD

Program Outputs in SD/HD/4K HD

4 x Keyers Total: 3 x Luma, 1 x Chroma

Audio: 10 x Input, 2 Channel Mixer

Hardware or Software MAC/PC Control


18.98" x 5" x 1.73"
