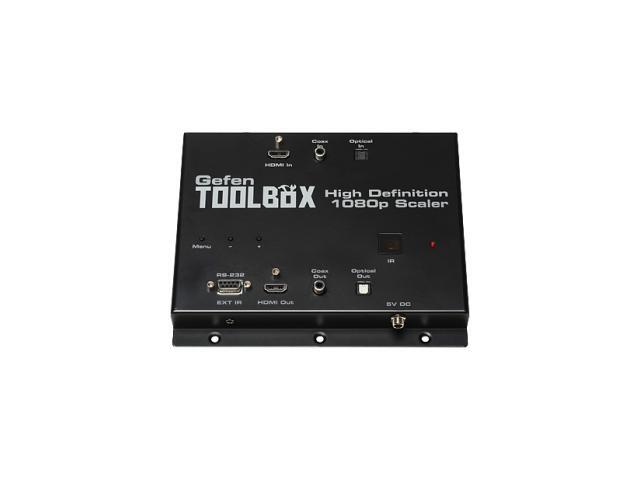

Gefen High Definition 1080p Scaler GTB-HD-1080PS-BLK

Up/Down Scaling of HDMI Signals
Frame Rate Conversion Engine
Output Resolution up to 1080p fullHD/2K
3:2 / 2:2 Pull-down Detection/Recovery
Advanced Color Engine Technology
Supports DVI-D Signals

Overview
Specifications
Warranty & Returns
Reviews
Q&A

Scale one HDMI source down or up to 1080p Full HD

The GefenToolBox High Definition 1080p Scaler allows you to scale one HDMI input to one HDMI output with up to 1080p Full HD and Deep Color. This unit can vastly improve the quality of the image by outputting the video to the native resolution of the display, bypassing the display's internal scaler. Video can be manually scaled up and down in all resolutions up to 1080p Full HD.

This product can also be used to downscale, making it ideal for distributing a Hi-Def signal to multiple displays that do not support the same maximum resolutions in an HDMI distribution system, while still showing maximum resolution on the higher-definition displays. It can also be used for DVI signals with appropriate adapters.

The GefenToolBox High Definition 1080p Scaler is conveniently wall-mountable so it can be easily installed behind the display. This Scaler offers RS-232 control and is field-upgradeable.

Learn more about the Gefen GTB-HD-1080PS-BLK

Model

Brand: Gefen

Model: GTB-HD-1080PS-BLK

Specification

Specification: Maximum Pixel Clock: 225 MHz
Input DDC Signal: 5 V p-p (TTL)
Input Video Signal: 1.2 V p-p
HDMI Input: 1 x Type A 19-pin, female
HDMI Output: 1 x Type A 19-pin, female
Audio Input: 1 x TOSLINK, 1 x S/PDIF
Audio Output: 1 x TOSLINK, 1 x S/PDIF
RS-232 Serial Port: DB-9, female
IR Extender: 3.5 mm mini-stereo jack
Power Supply: 5 V DC, Locking

Feature

Feature: Scales digital video output up to 1080p Full HD and 2K

Can be used as a down-scaler to support lower-resolution displays in multi-display distribution systems

Supports DVI-D signals via appropriate adapters

Supports Dolby Digital, DTS-HD Master Audio, Dolby TrueHD, and up to 8 channels of LPCM via HDMI.

Supports Dolby Digital AC3, DTS Digital Surround, and 2-channel LPCM via S/PDIF and TOSLINK.

High performance frame rate conversion engine

Auto 3:2 pull-down and 2:2 pull-down detection and recovery

Aspect Ratio Control

Digital audio delay to match audio / video timing

Proprietary Advanced Color Engine Technology provides brilliant color, intensified contrast and details, vivid skin tones, and sharp edges

Selectable audio input: HDMI, TOSLINK, or S/PDIF

Built-in on-screen display (OSD) menu controlled via an optional remote control (sold separately)

RS-232 control

Field-upgradeable

Wall-mountable

Dimensions & Weight

Dimensions: 8" W x 7" H x 1" D

Package Contents

Package Content: GefenToolBox High Definition 1080p Scaler
1 x 6 ft. HDMI Cable (M-M)
1 x IR Remote Control (RMT-SR-IR)
1 x 5V DC Locking Power Supply
1 x Users Manual

Warranty, Returns, And Additional Information

Manufacturer Contact Info
Manufacturer Product Page|
Website: http://www.gefen.com|
Support Phone: 1-800-545-6900
Support Email: support@gefen.com|
Support Website|
