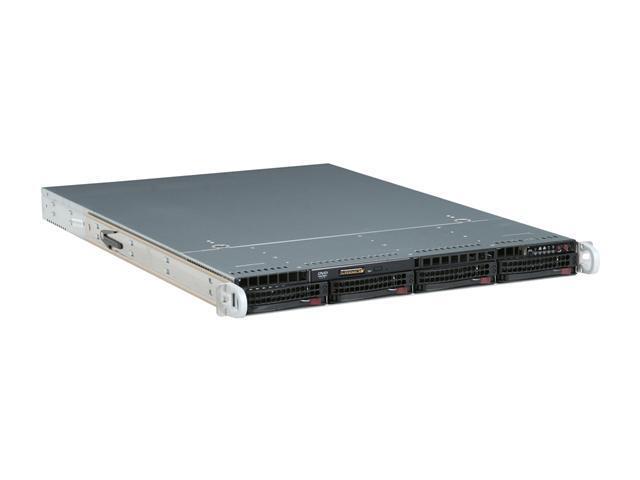

SUPERMICRO SYS-6016T-NTRF 1U Rackmount Server Barebone Intel 5520 Dual LGA 1366 Dual Intel Xeon 5600/5500 Series

  • Dual LGA 1366
  • Supports up to two Intel 64-bit Xeon X5600/E5600/L5600 Series (Westmere) 40W - 130W
  • Intel Xeon Processor X5500/E5500/L5500 S
  • 12 x 240 pin (Max 192GB)
  • Pin It
  • Email this page
ICON Loading...

Supermicro packs a lot of power into a small package with the SYS-6016T-NTRF server barebone system. It is based on the new Super X8DTU-F motherboard and accepts up to 2 Intel Xeon processors with 2 or 4 cores each. To support all the processing power you can install up to 96GB of fully buffered ECC memory.

The front of the chassis has 4 hot swappable 3.5" drive bays. The motherboard has 6x SATA ports and supports RAID 0, 1, 5, 10.

All these fit into a slim 1U chassis. The whole thing is powered by a 1+1 650W redundant power supply, so the system will get all the power that it needs. The back panel has 2x USB 2.0 and 2xGigabit Ethernet ports.

  • newegg Supports Dual Intel Xeon 5500 Series With dual LGA 1366 sockets, the SuperMicro SYS-6016T-NTRF's Super X8DTU-F server board supports up to two multi-core Intel Xeon 5500 Series processors, providing the computing platform capability necessary for your increasing computing demand.
  • newegg ECC Registered DDR3 Memory Support Eighteen DIMM sockets support ECC registered DDR3 1333, 1066 and 800 SDRAM in capacities of up to 96GB.
  • newegg Dual-port Gigabit Ethernet Dual Gigabit Ethernet LAN ports with the Intel 82576 Dual-port Gigabit Ethernet Controller deliver ultra-fast network connections.
  • newegg Hot-swappable SATA Drive Bays The SuperMicro SYS-6016T-NTRF features four 3.5" hot-swappable SATA drive bays for easy installation and replacement.
  • newegg 650W Highly-Efficient Redundant Power Supply The 650W highly-efficient redundant power supply provides power for all components installed and ensures system reliability.

Learn more about the SuperMicro SYS-6016T-NTRF

Model

Brand
SUPERMICRO
Model
SYS-6016T-NTRF

CPU Supported

CPU Type
Supports up to two Intel 64-bit Xeon processor(s) of the same type below:
Intel Xeon Processor X5600/E5600/L5600 Series (Westmere) 40W - 130W
Intel Xeon Processor X5500/E5500/L5500 Series (Nehalem-EP) 38W - 95W
CPU Socket
Dual LGA 1366

Audio

Installed CPU
No CPU Installed
Max Processors
2

Chipset

North Bridge
Intel 5520
South Bridge
ICH10R + IOH-36D

Memory Supported

Memory Slots
12 x 240Pin

Audio

Installed Memory Size
No Memory Installed

Memory Supported

Max Memory Supported
192GB
Memory Type Supported
DDR3 1333/1066/800
ECC Supported
Yes
Registered
Yes

Audio

Installed HDD
No Storage Installed

Storage Supported

Serial ATA
6 x SATA 300
SATA RAID
RAID 0, 1, 5, 10 support (Windows)
RAID 0, 1, 10 support (Linux)

Graphics

GPU/VPU
Matrox G200eW

Expansion Slots

PCI Express
2 (x8) PCI-E 2.0 slots

Communications

First LAN
Intel 82576
Max. LAN Speed
Dual 10/100/1000Mbps

Expansion Bays

Slim Bays
1
Hot-Swap Bays
4 x 3.5" SATA

Panel Ports

COM
1
PS/2
2
VGA
1
RJ45
2

Power Supply

Max. Power
650W (1 + 1) Redundant AC-DC power supply w/ PFC

Physical SPEC

Form Factor
1U Rackmount
Dimensions
25.6" x 17.2" x 1.7"
Weight
46 lbs.

Features

Features
Super I/O: Winbond 83827HF chip

SAS/SATA HDD Backplane(SAS support requires optional SAS controller)

Fans: 4 x Cooling Fans

Shroud: 1 x Air Shroud

Buttons:
Power On/Off Button
System Reset Button
UID Button

LEDs:
Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED
Universal Information (UID) LED

Color: Black

Manufacturer Warranty

Parts
1 year limited
Labor
3 years limited

Quick Info

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 3 years


Customer Reviews of the SuperMicro SYS-6016T-NTRF

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Mason C.
  • 3/23/2011 9:49:43 AM
  • Tech Level: High
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggsAwesome Barebone

Pros: These are some of the best Barebone servers I have ever ordered. Currently have about 12 in operation. We raid the 4 hot swap drives and are getting about 400MB/s of storage bandwidth.

Cons: Updating the bios from the original is kind of no go. You need to use a boot cd since they didn't include USB support in this version only problem is We could never get CD drivers for dos to support the DVD drive that comes with these. And no IDE ports to use an older drive.

All the ones shipping now have the newer bios with USB support so that is now kind of a non issue.

Other Thoughts: We use these for our private test clouds and they were great. We currently have 11 with dual 2.26GHz Xeon E5520 Nehalem CPUs and 24GB of ram. And one newer one with dual 2.4GHz Xeon E5620 Westmere CPUs.
