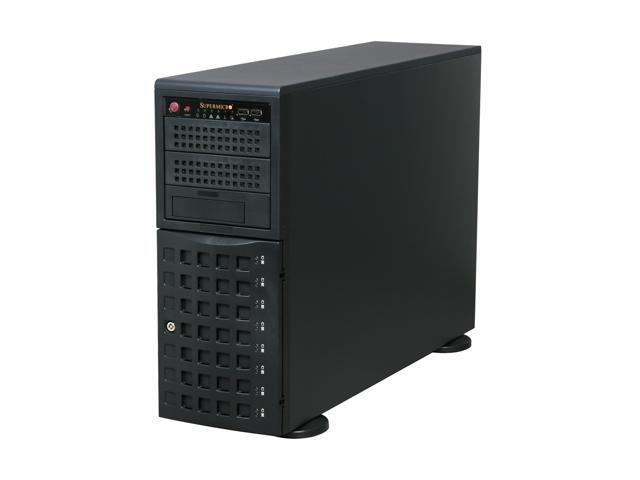

SUPERMICRO SYS-7046T-6F 4U Tower Server Barebone Intel 5520 Dual LGA 1366 Dual Intel Xeon 5600/5500 Series

Supermicro lets you take advantage of the increasing capacities of 3.5" form factor drives with the SYS-7046T-6F barebones server system. It is based on the Super X8DT6-F motherboard which accepts up to 2 QPI format quad-core/dual-core Xeon 5600/5500 Series processors. To support all the processing power you can install up to 192GB ECC Registered or 48GB ECC / Non ECC Unbuffered DDR3 memory.

The tower has 8 hot swappable 6Gbps SAS2 drive bays supporting RAID 0, 1 and 10. The motherboard has 6 SATA ports with the support of RAID 0, 1, 5, 10 (for Windows). All these fit into a high-density chassis. The whole thing is powered by an 80PLUS Platinum Certified, over 94% efficiency 920W power supply so the system will get all the power that it needs. The Supermicro SYS-7046T-6F is ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

Dual Intel Xeon 5500/5600 Series Processors Support With Intel 5520 (Tylersburg) Chipset and dual LGA 1366 sockets, the SuperMicro SYS-7046T-6F's Super X8DT6-F server board supports up to two multi-core Intel Xeon 5500 and 5600 Series processors of the same type, providing the computing platform capability necessary for your increasing computing demand.
ECC Registered DDR3 Memory Support Twelve DIMM sockets support ECC registered DDR3 1333, 1066 and 800 SDRAM in capacities of up to 192GB.
Eight Hot-Swappable SAS2 Drive Bays The SuperMicro SYS-7046T-6F features eight hot-swappable SATA-compatible SAS2 (Serial Attached SCSI) ports drive bays to provide up to 6Gb/s data transfer rates for optimum performance, efficiency, convenience and flexibility.
Dual Gigabit LAN The SuperMicro SYS-7046T-6F features Dual Intel 82574L Gigabit Ethernet LAN controllers to deliver ultra-fast network connections.
80PLUS Platinum Certified Power Supply The 80PLUS Platinum Certified 920W power supply with PMBus provides power for all components installed with over 94% efficiency and ensures system reliability. A total of 3 fans with PWM fan speed control provide exceptional cooling as well as quiet operation.

Learn more about the SuperMicro SYS-7046T-6F

Model

Brand: SUPERMICRO

Series: SuperServer

Model: SYS-7046T-6F

CPU Supported

CPU Type: Dual Intel Xeon 5600/5500 series

CPU Socket: Dual LGA 1366

Installed CPU: No CPU Installed

Max Processors: 2

Chipset

North Bridge: Intel 5520

South Bridge: ICH10R

Memory Supported

Memory Slots: 12 x 240Pin

Installed Memory Size: No Memory Installed

Max Memory Supported: 192GB

Memory Type Supported: DDR3 1333/1066/800

ECC Supported: Yes

Registered: Yes

Storage Supported

Installed HDD: No Storage Installed

Serial ATA: 6 x SATA 300

SATA RAID: RAID 0, 1, 5, 10 support (Windows)
RAID 0, 1, 10 support (Linux)

SAS: 8x 6Gbps SAS / SATA ports

LSI 6Gbps SAS 2008
RAID 0, 1, 10 support

Graphics

GPU/VPU: Matrox G200eW

Video Memory: 16 MB DDR2

Expansion Slots

PCI Express: 3 (x8) PCI-E 2.0 slots
1 (x4) PCI-E 2.0 slot
1 (x4) PCI-E slot

Communications

First LAN: Intel 82574L

Second LAN: Intel 82574L

Max. LAN Speed: Dual 10/100/1000Mbps

Expansion Bays

5.25" Bays: 2 x 5.25" Peripheral Drive Bay
1 x 5.25" Bay for Floppy Drive

Hot-Swap Bays: 8

Panel Ports

Front USB: 2

COM: 1

PS/2: 2

VGA: 1

Rear USB: 2

RJ45: 2

Power Supply

Max. Power: 920W high-efficiency (94+%) power supply with PMBus

Features

Features: Color: Black

Processor: Supports up to two Intel 64-bit Xeon processor(s) of the same type below:
Intel Xeon Processor 5600 Series (Westmere)
Intel Xeon Processor 5500 Series (Nehalem-EP)

QPI: Up to 6.4 GT/s

Super I/O: Winbond 83827HF chip

Buttons:
Power On/Off button
System Reset button

LEDs:
Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat / Fan Fail LED

SC743 SAS / SATA Backplane w/ Enclosure Management

System Cooling:
2x 8cm Hot-swappable PWM Cooling Fans
1x 9cm Rear Exhaust PWM Fan
2x Active heatsink w/ heatpipe

Chassis intrusion detection

Chassis intrusion header.

Details

Form Factor: 4U Rackmountable / Tower

Dimensions & Weight

Dimensions: 25.5" x 17.2" x 7.0"

Weight: 60 lbs. (Gross)

Customer Reviews of the SuperMicro SYS-7046T-6F

Do you own this product? Write a Review

Loading...

Filter Results Last 2 Weeks (0) Last 6 Months (0) All Reviews (3) 100% (3) 0% (0) 0% (0) 0% (0) 0% (0) Verified Owners Video Reviews Mfr. Responses keyword Go
Dan C. 10/20/2014 8:44:32 AM Ownership: 2/5 Verified Owner	Rating: 5/5Really nice server! This review is from: SUPERMICRO SYS-7046T-6F 4U Tower Server Barebone Intel 5520 Dual LGA 1366 Dual Intel Xeon 5600/5500 Series Pros: Very nicely built all around. Great LSI raid support with desktop management software allowing setup of hot spares etc. Just an excellent server. Cons: Doesn't come with second power supply. Did you find this review helpful? Thanks for the valuable feedback you provided!
Huazheng G. 5/27/2011 11:48:05 PM Ownership: 4/5 Verified Owner	Rating: 5/5Excellent server This review is from: SUPERMICRO SYS-7046T-6F 4U Tower Server Barebone Intel 5520 Dual LGA 1366 Dual Intel Xeon 5600/5500 Series Pros: A solid server, builds like a tank. It is a wonderful piece of engineering. You will be amazed by just looking at it. The internal cables are professionally routed, no clutter at all, everything feels clean. On the front, there are 8 hot swappable drive bays and 3 easily accessible 5.25 bays, all are high quality. Cons: The fans are quite loud, but it is ok since I put the server in basement. The good thing is the fans are removable, you can replace them with your own fans if you want to. Other Thoughts: I bought two cooler master N 520 92mm cpu cooler, but end not using them because the server comes with two passive fanless heatsinks. The passive heatsink is more than enough to cool the cpus since there is an air duct inside the server. Basically, the air duct direct the air flow around the heatsink to keep them cool. I am running dual xeon E-5620 Westmere 2.4Ghz cpus, currently 8GB RAM. 1 out of 1 people found this review helpful. Did you? Thanks for the valuable feedback you provided!
Eric M. 5/21/2011 1:57:35 PM Ownership: 4/5 Verified Owner	Rating: 5/5Great box, solid build. This review is from: SUPERMICRO SYS-7046T-6F 4U Tower Server Barebone Intel 5520 Dual LGA 1366 Dual Intel Xeon 5600/5500 Series Pros: Using it as a ZFS fileserver running OpenIndiana oi_148 with a single Xeon X5650 CPU and 12GB RAM (3x 4GB), installation went flawlessly and all hardware was detected properly. Performance is great. Uses passive CPU heatsinks (SYS7046A-T has active heatsinks) but has a nice easy to mount shroud for airflow. Cons: This model uses the long, narrow hot-swappable power supplies, and only comes with 1. It's quite a bit louder than the SYS7046A-T which we also have in production. If you're going to use the machine for home use, if it's not isolated into another room, you might want to consider one of their chassis with larger (quieter) power supply fans. 1 out of 1 people found this review helpful. Did you? Thanks for the valuable feedback you provided!
