Item#: N82E16816101688

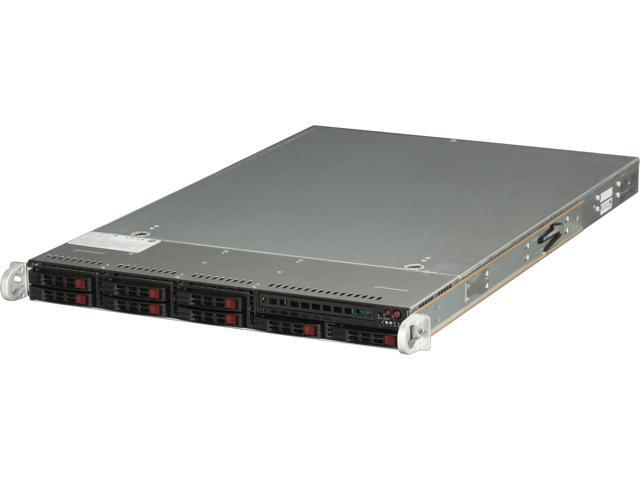

SUPERMICRO SYS-1027R-WRF4+ 1U Rackmount Server Barebone Dual LGA 2011 Intel C606 DDR3 1600/1333/1066/800

Be the first to review this product...
  • Dual LGA 2011
  • Dual Intel Xeon E5-2600 (up to 130W TDP) Series
  • 24 x 240Pin Memory Slots
  • 700W/750W Redundant AC-DC high-efficiency power supply with PMBus and I2C
  • 80 PLUS, Gold Level Certified

ICON Loading...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews



SUPERMICRO SYS-1027R-WRF4+ 1U Rackmount Server Barebone

Key Features


PHILIPS
  1. 1. Dual socket R (LGA 2011) supports Intel® Xeon® processor E5-2600 and E5-2600 v2 family†
  2. 2. Up to 1.5TB ECC DDR3, up to 1866MHz; 24x DIMM sockets
  3. 3. 1 PCI-E 3.0 (x8) Low-profile, 1 PCI-E 3.0 (x16) & 1 PCI-E 3.0 (x8) Full-height slots (see below for details)
  4. 4. Intel® i350 Gigabit Ethernet (4x ports)
  5. 5. 8x Hot-swap 2.5" SAS/SATA HDD bays for Customizable Storage
  6. 6. 750/700W Redundant power supplies Gold Level Certified


Specifications

Product SKUs
SYS-1027R-WRF4+
  • SuperServer 1027R-WRF4+ (Black)
Motherboard
Super X9DRW-3LN4F+
Processor/Cache
CPU
  • Dual Socket R (LGA 2011)
  • Intel® Xeon® processor E5-2600 and E5-2600 v2 family† (up to 130W TDP)
Note † BIOS version 3.0 or above is required
Cache
  • Up to 30MB
System Bus
  • QPI up to 8 GT/s
System Memory
Memory Capacity
  • 24x 240-pin DDR3 DIMM sockets
  • Up to 1.5TB DDR3 ECC LRDIMM
  • Up to 768GB DDR3 ECC Registered memory (RDIMM)
  • Up to 128GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type
  • 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes
  • 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage
  • 1.5 V, 1.35 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel® C606 Chipset
SATA
  • SATA 2.0 3Gbps with RAID 0, 1, 5, 10
  • SATA 3.0 6Gbps with RAID 0, 1
SAS
  • SAS from C606
  • RAID 0, 1, 10 support
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • Nuvoton WPCM450 BMC
Network Controllers
  • Intel® i350 Gigabit Ethernet Controller
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics
  • Matrox G200eW
Input / Output
SAS
  • 4x SAS ports (3Gbps)
LAN
  • 4x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 7x USB 2.0 ports total
    (2x rear + 4x via header + 1x Type A)
VGA
  • 1x VGA port
Serial Port / Header
  • 1x Fast UART 16550 port / 1 Header

What's in the Box

PHILIPS

Learn more about the SuperMicro SYS-1027R-WRF4+

Model

|
Brand
SUPERMICRO
Model
SYS-1027R-WRF4+

CPU Supported

|
CPU Type
Dual Intel Xeon E5-2600 (up to 130W TDP) Series
CPU Socket
Dual LGA 2011

Chipset

|
North Bridge
Intel C606

Memory Supported

|
Memory Slots
24 x 240Pin
Max Memory Supported
Supports up to 768 GB DDR3 ECC Registered memory (RDIMM) in 24 DIMM sockets
Supports up to 192 GB DDR3 ECC Un-Buffered memory (UDIMM) in 24 DIMM sockets
Memory Type Supported
DDR3 1600/1333/1066/800
ECC Supported
Yes
Registered
Yes

Storage Supported

|
SATA RAID
SATA 2.0 3Gbps with RAID 0, 1, 5, 10
SATA 3.0 6Gbps with RAID 0, 1, 5, 10
SAS
SAS from C606
RAID 0, 1, 10 support

Graphics

|
GPU/VPU
G200 (Renesas SH7757 BMC w/ graphic controller)

Expansion Slots

|
PCI Express
1 PCI-E 3.0 (x16) Full-height, Full-length
1 PCI-E 3.0 (x8) Full-height, Half-length
1 PCI-E 3.0 (x8) Low-profile

Communications

|
First LAN
Intel I350
Second LAN
Intel I350
Max. LAN Speed
Quad 10/100/1000Mbps

Expansion Bays

|
Hot-Swap Bays
8 x Hot-swap 2.5" SAS / SATA HDD trays

Panel Ports

|
COM
1 x Fast UART 16550 port
VGA
1
Rear USB
2
RJ45
4 x RJ45 Gigabit Ethernet LAN ports
1 x RJ45 Dedicated IPMI LAN port

Power Supply

|
Max. Power
700W/750W Redundant AC-DC high-efficiency power supply with PMBus and I2C
80 PLUS, Gold Level Certified

Features

|
Features
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Renesas SH7757 BMC

Details

|
Form Factor
1U Rackmount

Dimensions & Weight

|
Dimensions
26.6" x 17.2" x 1.7"
Weight
46.0 lbs.
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 3 years
  • Read full details

Customer Reviews of the SuperMicro SYS-1027R-WRF4+

There are no reviews yet... do you own this product? Write a Review
