SUPERMICRO SYS-5017P-TF 1U Rackmount Server Barebone BGA-1023 Intel QM77 DDR3 1333/1066/800

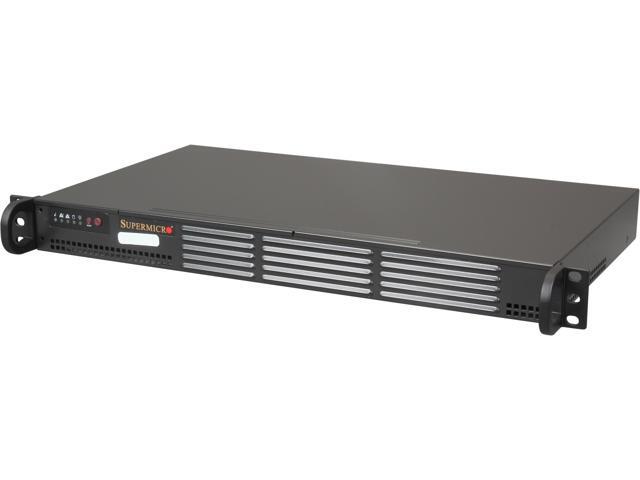

SUPERMICRO SuperServer SYS-5017P-TF 1U Rackmount Server Barebone

Overview
Specifications
Warranty & Returns
Reviews
Q&A

These compact, low-power server systems offer incredible performance in a small form factor. Features include DDR3 with ECC support, SATA3 storage interface with RAID, PCI-E 3.0, and multiple Gigabit Ethernet network ports. In addition, remote management/console over network is built-in, based on IPMI 2.0. Graphics support for APIs such as DX11, OpenCL 1.1, and OpenGL 3.1 provide even more value for end applications.

Learn more about the SuperMicro SYS-5017P-TF

Model

Brand: SUPERMICRO

Series: SuperServer

Model: SYS-5017P-TF

CPU Supported

CPU Type: Intel Core i5-3610ME 2.7GHz 2C/4T

CPU Socket: BGA-1023

Max Processors: 1

Chipset

North Bridge: Intel QM77

Memory Supported

Memory Slots: 2 x 204Pin

Installed Memory Size: No Memory Installed

Max Memory Supported: 16GB

Memory Type Supported: DDR3 1333/1066/800

ECC Supported: Yes

Storage Supported

Installed HDD: No Storage Installed

Serial ATA: 4 x SATA 300 + 2 SATA 600

SATA RAID: SATA 2.0 3Gbps with RAID 0, 1, 5, 10
SATA 3.0 6Gbps with RAID 0, 1

Graphics

GPU/VPU: Matrox G200eW or Intel Integrated HD Graphics 4000

Expansion Slots

PCI Express: 1x PCI-E 3.0 x16 slot
*Add-on card compatibility dependent on number of drives/brackets installed + height of card components

Communications

First LAN: Intel 82574L

Second LAN: Intel 82574L

Max. LAN Speed: Dual 10/100/1000Mbps

Panel Ports

COM: 1

VGA: 1

Rear USB: 4

RJ45: 2x RJ45 LAN ports
1x RJ45 Dedicated IPMI LAN port

Other Ports: 4x USB 3.0 via header
2x USB 2.0 via header

Power Supply

Max. Power: 200W Low Noise AC-DC power supply with PFC, 80PLUS Gold

Features

Features: IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Disk-on-module (DOM) power connector

*HDD: 2x 3.5" or 4x 2.5" internal SATA2 hard drive bays (optional)

Details

Form Factor: 1U Rackmount

Dimensions & Weight

Dimensions: 17.2" x 9.8" x 1.7"

Weight: 8 lbs.

Warranty, Returns, And Additional Information

Warranty
Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 3 years
Read full details

Manufacturer Contact Info
Manufacturer Product Page|
Website: http://www.supermicro.com/|
Support Phone: 1-408-503-8000
Support Website|
View other products from SuperMicro

Customer Reviews of the SuperMicro SYS-5017P-TF

Do you own this product? Write a Review

Filter Results Last 2 Weeks (0) Last 6 Months (0) All Reviews (1) 0% (0) 0% (0) 0% (0) 0% (0) 100% (1) Verified Owners Video Reviews Mfr. Responses keyword Go
Harold S. 1/31/2014 6:39:05 AM Ownership: 2/5 Verified Owner	Rating: 1/5Would not post out of box - 3 types of ram tested This review is from: SUPERMICRO SYS-5017P-TF 1U Rackmount Server Barebone BGA-1023 Intel QM77 DDR3 1333/1066/800 Pros: Nice build - very compact - SuperMicro makes great servers. Cons: Will not post on boot - SuperMicro says to contact NEWEGG for support. It is unclear if its a bad CPU/MB. It appears to post, but I am getting no output from the monitor. I have cleared CMOS, and tried 3 different brands of RAM. Did you find this review helpful? Thanks for the valuable feedback you provided!

Filter Results

0% (0)
0% (0)
0% (0)
0% (0)
100% (1)

Verified Owners
Video Reviews
Mfr. Responses

Harold S.
1/31/2014 6:39:05 AM
Ownership: 2/5
Verified Owner

Rating: 1/5Would not post out of box - 3 types of ram tested

Pros: Nice build - very compact - SuperMicro makes great servers.

Cons: Will not post on boot - SuperMicro says to contact NEWEGG for support. It is unclear if its a bad CPU/MB. It appears to post, but I am getting no output from the monitor. I have cleared CMOS, and tried 3 different brands of RAM.

Did you find this review helpful? Yes
