Designed for optimal performance, the dual-processor SuperServers support the QPI (8.0GT/s) format Xeon processor E5-2600 family in a high-density 1U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

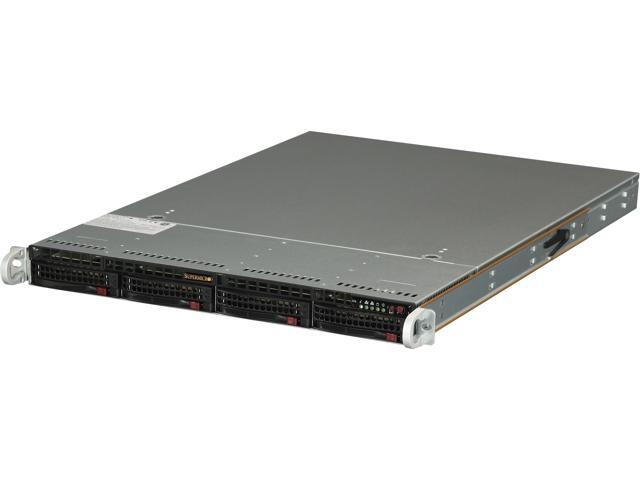

Learn more about the SuperMicro SYS-6017R-NTF

Model

|
Brand
SUPERMICRO
Series
SuperServer
Model
SYS-6017R-NTF

CPU Supported

|
CPU Type
Dual Intel Xeon E5-2600 series (up to 130W TDP)
CPU Socket
Dual LGA 2011
Installed CPU
No CPU Installed
Max Processors
2

Chipset

|
North Bridge
Intel C602

Memory Supported

|
Memory Slots
16 x 240Pin
Installed Memory Size
No Memory Installed
Max Memory Supported
Up to 1TB DDR3 ECC LRDIMM
Up to 512GB DDR3 ECC Registered memory (RDIMM)
Up to 128GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type Supported
DDR3 1600/1333/1066/800
ECC Supported
Yes
Registered
Yes

Storage Supported

|
Installed HDD
No Storage Installed
Serial ATA
4 x SATA 300
SATA RAID
RAID 0/1/5/10

Graphics

|
GPU/VPU
G200 (Renesas SH7757 BMC)

Expansion Slots

|
PCI Express
2 PCI-E 3.0 x16 Full-heigh, Half-length slots

Communications

|
First LAN
Intel I350
Max. LAN Speed
Dual 10/100/1000Mbps

Expansion Bays

|
Hot-Swap Bays
4 x 3.5" SAS/SATA2

Panel Ports

|
COM
1
VGA
1
Rear USB
4
RJ45
2x RJ45 Gigabit Ethernet LAN ports
1x RJ45 Dedicated IPMI LAN port
Other Ports
USB 2.0: 2x via header
Serial: 1 Header

Power Supply

|
Max. Power
600W AC power supply w/ PFC (24-pin), 80PLUS Platinum

Features

|
Features
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Details

|
Form Factor
1U Rackmount

Dimensions & Weight

|
Dimensions
25.6" x 17.2" x 1.7"
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 3 years
