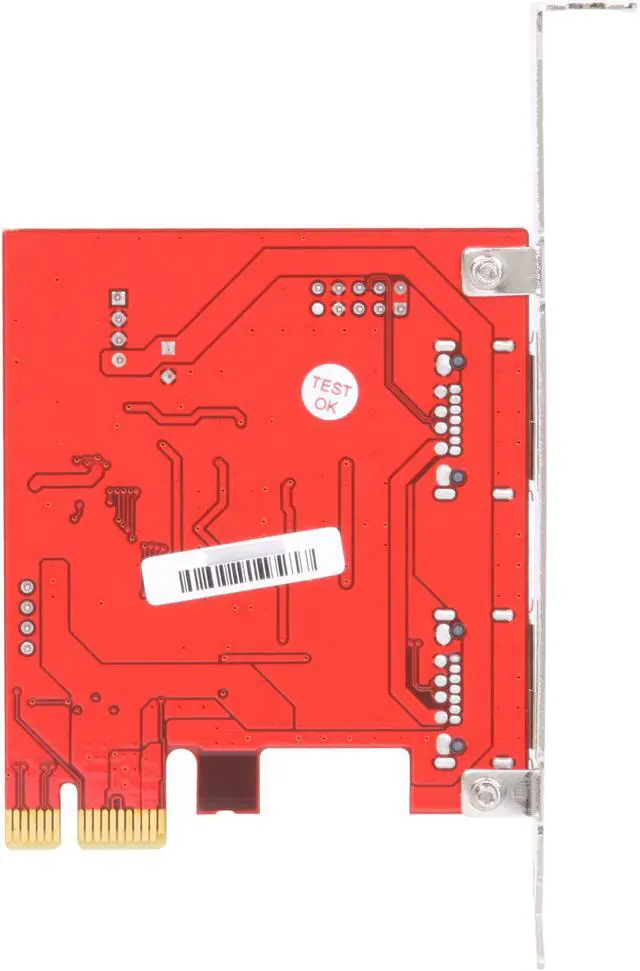

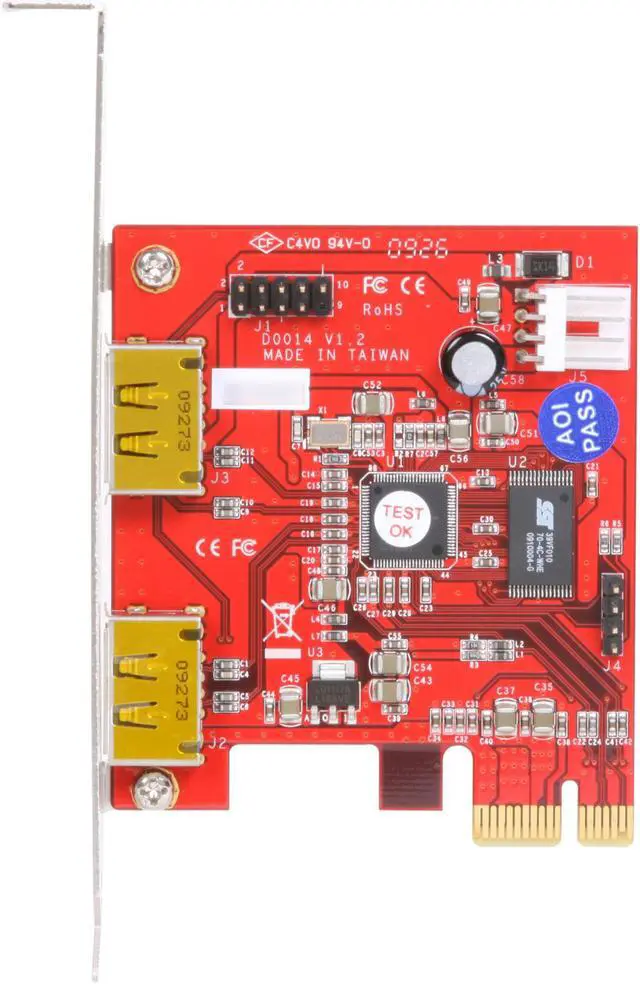

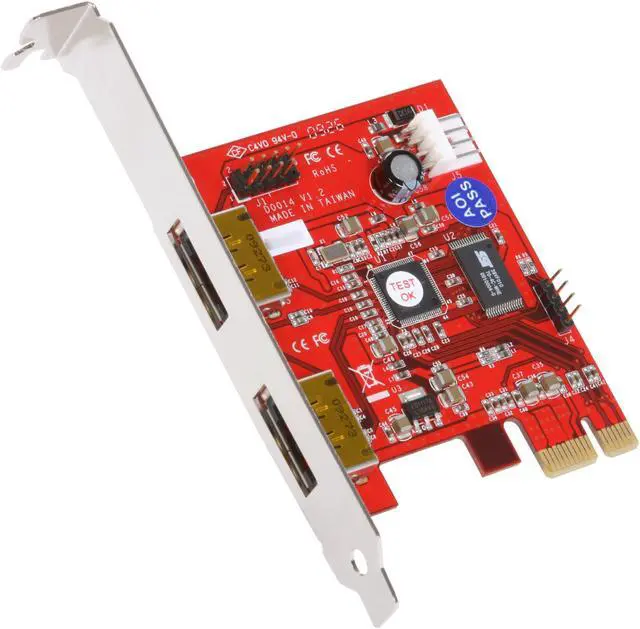

Koutech IO-PESU220 PCI Express x 1 SATA Controller Card
- RAID 0/1/5/ JBOD
- 2 x eSATA External Connectors
Specs
Reviews (6)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Koutech IO-PESU220
| Brand | Koutech |
|---|---|
| Model | IO-PESU220 |
| Type | SATA |
|---|---|

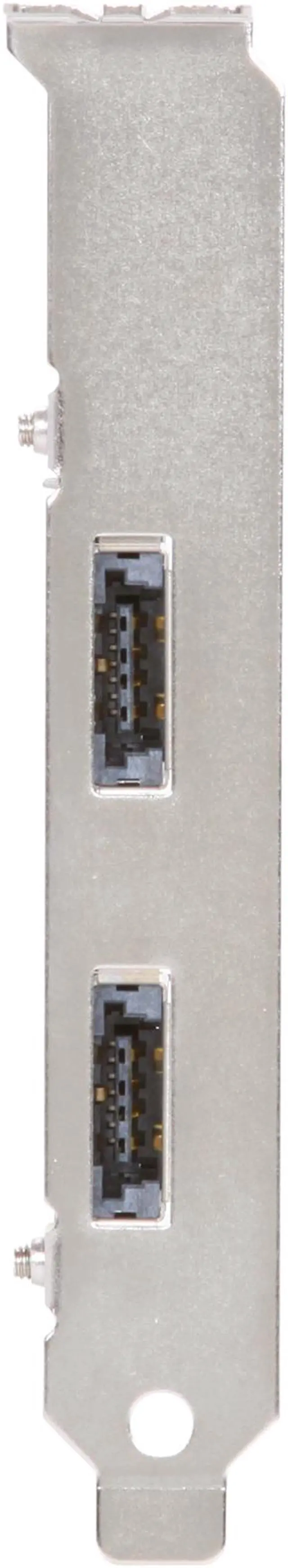

| External Connectors | 2 x eSATA |
| Interface | PCI Express x 1 |
| RAID | RAID 0/1/5/ JBOD |
| Operating Systems Supported | Windows 2000/XP/Server 2003/Vista/Server 2008/Windows 7 and Linux |
| Features | Two (2) external Power Over eSATA connectors; which supports any two of: - Two (2) 3.0Gbps Serial ATA II ports. - Two (2) Hi-Speed USB 2.0 ports. Power Over eSATA connectors will provide 5V & 12V bus-powered via its connectors. Eliminates the requirement for a separate power source with Power Over eSATA connectors , while maintaining compatibility with the existing eSATA connector form factor. Enables you to connect up to two (2) SATA or two (2) Hi-Speed USB 2.0 external peripherals (with any combination of two SATA and USB devices). Fully Plug-N-Play and Hot-Swap compatible. eSATA: Compliant with Serial ATA 1.0a Rev 1.1 specification. Supports RAID 0 (Striping), RAID 1 (Mirroring), RAID 5 (Parity) and JBOD. Supports bus master DMA at 3.0Gbps burst rate. Supports high performance Serial ATA devices; such as hard disk drives, SATA enclosures, and other devices. USB: Supports Hi-Speed USB 2.0 interfaces via Power Over eSATA connectors & the internal header-pins. Connects internal header-pins to on-board, motherboard or add on-card, USB connectors to enable Power Over eSATA to support Hi-Speed USB 2.0 function. USB Specification v.1.0/1.1/2.0 compatible (data transfer rate at 1.5/12/480Mbps). Hi-Speed USB 2.0 is fully compatible with original USB system, peripherals and cables. Ideal connection for digital cameras, scanners, printers, external CD/DVD/Blu-Ray writers, hard disk drives, flash memory drives and etc. System Requirements: PC with 256MB of RAM and 1.0GHz or faster processor One (1) available PCI Express slot Windows 2000/XP/Server 2003/Vista/Server 2008/Windows 7 and Linux. *Note: Does not have an actual USB 2.0 host controller chipset; features are enabled via internal header-pins to on-board, motherboard or add on-card, USB connectors to enable Power Over eSATA to support Hi-Speed USB 2.0 function. |
|---|

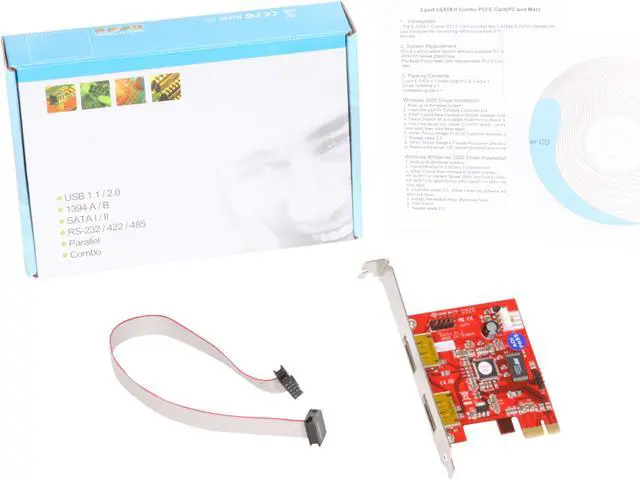

| Package Contents | 1 x PCI Express card 1 x USB header expansion cable CD software drivers User manual |
|---|
| First Listed on Newegg | October 15, 2009 |
|---|
