Item#: N82E16816110092

ASUS RS300-E8-RS4 Server Barebone LGA 1150 Intel C224 DDR3 1600/1333

  • LGA 1150
  • Intel Xeon E3-1200 V3 series
  • 4 x 240Pin Memory Slots
  • 1+1 Redundant 450W 80PLUS Gold Power Supply, Rating: 100-127Vac/200-240Vac,8A/4A ,47-63Hz, Class 1
  • Pin It
  • Email this page
ICON Loading...


RS300-E8-RS4

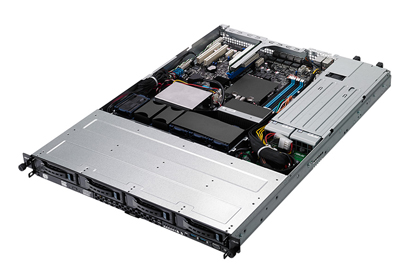

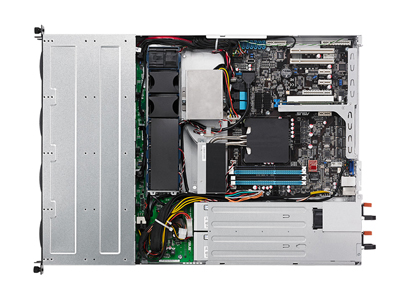

ASUS RS300-E8-RS4 Barebones Server
LGA 1150 Intel C224 DDR3 1600 / 1333


New Levels of Efficiency and Optimized Design
As always, ASUS makes servers that deliver superior performance. In this generation, the ASUS RS300-E8-RS4 supports the latest Intel® Xeon® E3-1200 v3 processor family with advanced computing power that can easily work at up to sustainable 104°F (40°C) stress while reducing power loss. In addition, the ASUS RS300-E8-RS4 offers two expansion slots as well as one ASUS PIKE slot, an internal SSD cage for independent OS drive space, and complete remote server management through ASWM Enterprise and ASMB7-iKVM.

RS300-E8-RS4RS300-E8-RS4
The Latest Intel® CPUs
The RS300-E8-RS4 is ready for new-generation Intel® Xeon® 22nm processors, which deliver a significant performance improvement over previous-generation processors in virtualization support, integrated security, scalability, and I/O performance. They assure frustration-free smooth operation.

2 + 1 Expandability in UP 1U
The RS300-E8-RS4 ships with 2 + 1 expansion slots in a 1U system for higher expandability and better data protection. It has one PCI Express 3.0 x16 slot and one PCI Express 3.0 x8 slot to accommodate the power of two dual full-height add-on cards. An extra slot is reserved for optional ASUS PIKE cards for cost effective upgrades to SAS storage and RAID protection.

Better Networking with New Quad Server-Grade Intel® I210 Ethernet
Four server-grade Intel® Ethernet ports with the I210 controller double queuing capacity compared to previous-generation Intel® Ethernet 82574L controllers, powering faster data transmission. In addition, quad LAN teaming ports provide high networking bandwidth with load balance and fault tolerance functions, which reduce data processing bottlenecks in virtualization environments by increasing virtualized traffic.

RS300-E8-RS4RS300-E8-RS4
Best-in-Class Power Efficiency and Stability
With new ASUS Beat Thermal Choke technology, operating temperatures drop by as much as 41°F (5°C), helping ensure the lowest energy loss and up to 91% (VR) efficiency. The RS300-E8-RS4 is able to work stably under high ambient temperature environments of up to a sustained 104°F (40°C). It also includes 1 + 1 80 PLUS Gold power supplies to reduce power loss and power consumption, helping consumers save on total cost of ownership.

Optimized User Experience Design
A front VGA port provides greater convenience and flexibility, allowing customers to connect a monitor from the front. There is also an "asset tag" on every RS300-E8-RS4 for better identification within a server cluster. ASUS further furnishes several choices for OS drive placement, such as SSD and SATA DOM cages, plus internal Type A USB.

Comprehensive Remote Management
ASUS presents the most comprehensive and complete server remote management, including both out of band ASMB7-iKVM and in-band ASWM Enterprise. ASWM Enterprise features "one-on-many management," saving time and effort. Its intuitive graphical user interface offers quick insight into current server status as well as detailed and easily-accessible asset management for each server.
RS300-E8-RS4


Learn more about the ASUS RS300-E8-RS4

Model

Brand
ASUS
Model
RS300-E8-RS4

CPU Supported

CPU Type
Intel Xeon E3-1200 V3 series
CPU Socket
LGA 1150

Chipset

North Bridge
Intel C224

Memory Supported

Memory Slots
4 x 240Pin
Max Memory Supported
32GB
Memory Type Supported
DDR3 1600/1333
Channel Supported
Dual Channel
ECC Supported
Yes

Storage Supported

Serial ATA
2 x SATA 300 + 4 SATA 600
SATA RAID
Intel RSTe (for Windows only)
(Support software RAID 0, 1, 10 & 5)

Graphics

GPU/VPU
Aspeed AST2300
Video Memory
32MB

Expansion Slots

PCI Express
1 * PCI-E x16 (Gen3 x8 link) (Full-Height/HL)
1 * PCI-E x8 (Gen3 x4 link) (Full-Height/HL)

1* PIKE Slot for Stroage Enhancement

Communications

First LAN
4 x Intel I210-AT
Max. LAN Speed
Quad 10/100/1000Mbps

Expansion Bays

Slim Bays
1
Hot-Swap Bays
4 x 3.5"

Panel Ports

Front USB
2 x USB 3.0
PS/2
1 * PS/2 keyboard/mouse port
VGA
2 * VGA port (Front * 1, Rear * 1)
Rear USB
2* USB 3.0 ports (Rear * 2)
2* USB 2.0 ports (Rear * 2)
RJ45
5 * RJ-45 ports (One for ASMB7-iKVM)
Other Ports
1 * Internal A Type USB Port

Power Supply

Max. Power
1+1 Redundant 450W 80PLUS Gold Power Supply, Rating: 100-127Vac/200-240Vac,8A/4A ,47-63Hz, Class 1

Physical SPEC

Dimensions
615mm x 444mm x 43.4mm
Weight
16Kg

Features

Features
ASWM Enterprise

DVD-RW default for North America

*Optional ASMB7-iKVM for KVM-over-IP

Quick Info

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
