Item#: N82E16816118193

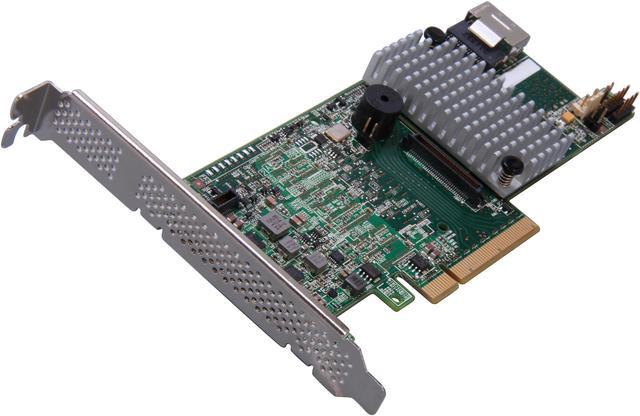

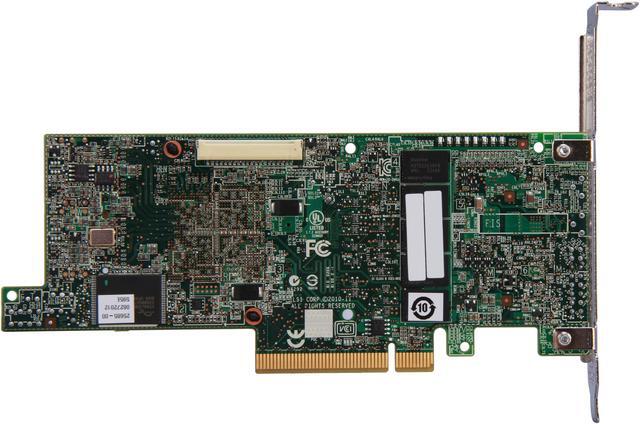

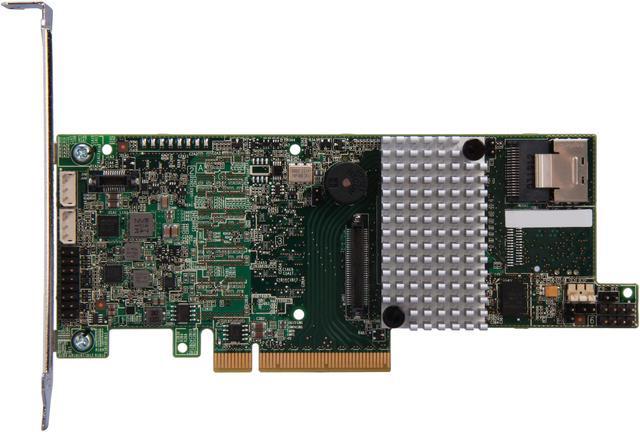

LSI MegaRAID LSI00329 (9271-4i) PCI-Express 3.0 x8 Low Profile SATA / SAS RAID Controller - Kit

  • RAID 0/1/5/6/10/50/60
  • 1 x SFF-8087 mini-SAS Internal Connectors
  • Up to 6Gb/s
  • Pin It
  • Email this page
ICON Loading...

Learn more about the LSI LSI00329 (9271-4i)

Model

Brand
LSI
Series
MegaRAID
Model
LSI00329 (9271-4i)
Form Factor
Low Profile

Specifications

Type
SATA / SAS
Internal Connectors
1 x SFF-8087 mini-SAS
Interface
PCI-Express 3.0 x8
Transfer Rate
Up to 6Gb/s
Cache Memory
1GB 1333MHz DDRIII SDRAM
RAID
RAID 0/1/5/6/10/50/60
Operating Systems Supported
Extensive support includes Microsoft Windows Vista/2008/Server 2003/2000/XP, Linux, Solaris (x86), Netware, FreeBSD, VMware and more.

*Visit the LSI download Center for the most complete list of supported operating systems: http://www.lsi.com/channel/support.
Dimensions
MD2 Low profile (6.6" x 2.536")

Features

Features
I/O Processor/SAS Controller: LSISAS2208 Dual-Core RAID on Chip (ROC)

Four-port 6Gb/s PCI Express 3.0 SATA+SAS RAID controller

Second-generation 6Gb/s SATA+SAS controller, built on the LSISAS2208 dual-core ROC

Proven interoperability with the latest server platforms based on the PCI Express 3.0 specification

Packaging

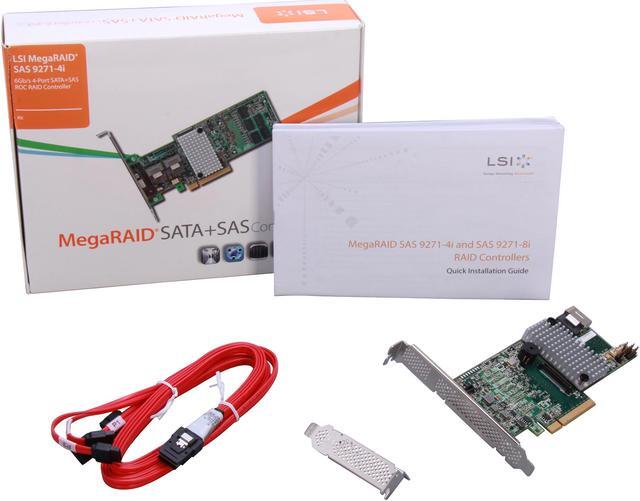

Package Contents
MegaRAID SAS 9271-4i RAID Controller (Kit)
QIG

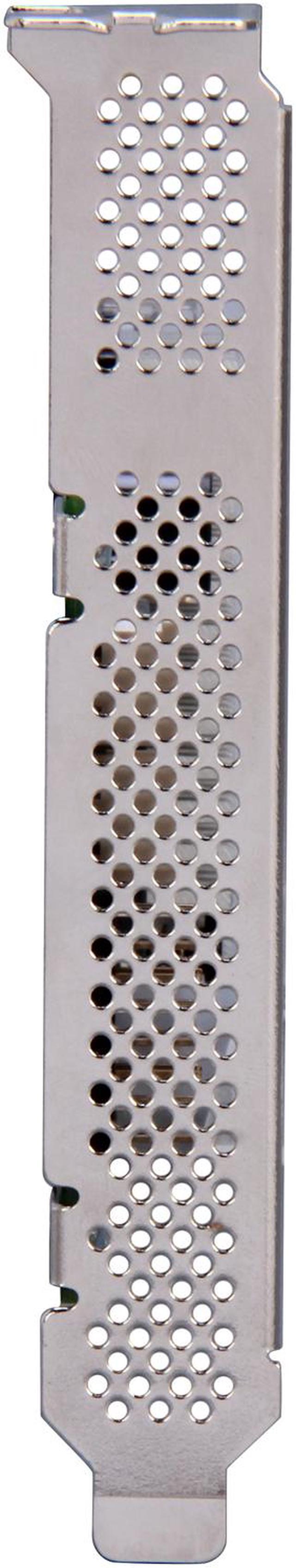

LP bracket
(1) 1-meter Mini-SAS SFF-8087 to SATA fanout cable

Quick Info

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 0 day


Customer Reviews of the LSI LSI00329 (9271-4i)

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Wayne C.
  • 2/1/2014 9:17:53 PM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year

2 out of 5 eggsLSI 9271-4i RAID Card

Pros: The LSI MegaRAID SAS 9271-4i RAID card was easy to set up with the included software and flash the firmware although I did need to call their Support for a little help. It appears to have good data transfer rates in the little testing I did. The BIG problem was getting the computers to boot afterward into Windows.

Cons: From the beginning I did have trouble with their firmware on a computer running Windows 8 with an ASUS Sabertooth motherboard and had to revert back to an older version. That was finally fixed though but I'm getting card related errors and disk errors in the Event Viewer running Windows 8.1 on two computers. The hard drive activity light feature on the card never has worked even though reported approximately six months ago. They know it is a firmware issue but they aren't very fast in fixing some things. Their recent 8.1 driver and firmware update made my computer almost totally unusable.

Other Thoughts: I have two of these cards on an ASUS Sabertooth 990FX R2.0 motherboard. I put a small fan in the processor heat sink to help keep it cool. I have been told by LSI that they have had problems with ASUS motherboards. Because of this, I do NOT recommend using them on ASUS desktop motherboards. I have notified ASUS of the issues but nothing has been resolved by them.

Did you find this review helpful? Yes No

  • Julie L.
  • 1/17/2014 12:52:27 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsSolid Card at a Great Price

Pros: Very solid card. I personally had no issues with configuration or usage of the management software as others have said; granted the program is clunky.

Cons: Clunky software.
When a drive is removed without properly removing it (as in to test a fault scenario with a drive failing the card will mark that SERIAL NUMBERED HDD as bad, even if you put it back in the card won't rebuild till you mark the drive as good in the software.

Did you find this review helpful? Yes No

  • Hans R.
  • 1/14/2014 11:56:34 AM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

4 out of 5 eggsWorks GREAT and FAST but the setup is painful

Pros: Very fast and once you get past the painful setup the card runs reliably and without any issues.
I use this with 4 Samsung 840 Pro 256GB SSDs for uncompressed video capture. In a RAID 0 config this setup easily does 1.5 to 1.6 GB/sec write speed and performance is very consistent.
This setup is being used daily and the controller has been 100% flawless for a month.

Cons: PAINFUL setup! First of all make sure you flash to the latest firmware, my card's version was a few months old.
Then setting up the RAID/drive configuration at boot brings you to an exceedingly touchy and unstable piece of software with a horrible GUI and frequent crashes. It took multiple tries to get that right and the whole process was PAINFUL. On the one hand this is an industrial controller so it's ok to expect a certain level of tech-knowledge but the MegaRaid Manager software is junk and very touchy. Type the wrong key at the wrong time: crash! Move the mouse to fast: crash! Not acceptable.

Other Thoughts: Come on LSI - fix your darn software!

Did you find this review helpful? Yes No

  • Gerhard B.
  • 4/8/2013 7:06:31 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

2 out of 5 eggsThe 5 Month Update

Pros: PCI-Express 3.0, immediate response from technical support, no problems RMA'ing the card / BBU, frequent update of firmware and code*, support for more than 2 SATA 6 disks in systems with only 2 SATA 6 ports.

Cons: Ok, this card is going to be problematic if you install it in any system that uses the Intel Rapid Storage Technology driverset. It will also be an issue if you install it in a system with the RSTe, which is the Enterprise version used in the X79 or C600 series Intel chipsets. Basically, there is an incompatibility issue, primarily dealing with desktops and workstations, which is not actively being dealt with by LSI. After 5 months of attempting to get 3 OCZ Vertex 4 - 512GB drives working with this LSI controller, I gave up. LSI technical support wants to blame OROM space support for frequent system crashes, but, their MegaRAID driver uses Sun JAVA 1.6.0_U24, which is 19 revisions out of date and is 1) a MASSIVE security issue 2) Likes to crash due to the memory leaks native to the ancient variant it is. With this model you'd use the iBBU-9 as a battery backup, and that can ONLY be used with hard disks effectively. The FASTPATH software, which is intended for significant gains when SSDs are involved doesn't really seem to make a different if you are using high capacity SSDs. Bench marking with AS-SSD, HDTune Pro, PCMark 7, Anvil, etc., do not really show stellar results.

Other Thoughts: I purchased this card, the iBBU-9, and the FAST TRACK license to eliminate issues related to stability. Specifically, with the Intel RSTe drivers and many issues related to them. LSIs inability to follow through on updates related to workstations related caused me some issues and wasted time. I did contact them and report the issues, as well as upload tons of benchmarks and full blown systems diagnostics sets, but what ended up happening is that one day my ticket was mysteriously closed and I did not hear back from the only technician that seems to know what he was talking about. (They have a list of system boards, and general settings that they can walk you through, for example... which never materialized.)

1 out of 3 people found this review helpful. Did you? Yes No

  • Gerhard B.
  • 11/28/2012 5:12:41 AM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

4 out of 5 eggsGreat controller, but there are issues.

Pros: Supports SSDs and Hard Disks that are SATA III (6GB). Allows for 4 of those drives with the included cable, but can also be attached to an external enclosure for SAS support of up to 128 drives. Has 1GB of DDR3 Cache RAM. Can use an otional battery backup module to prevent data loss during power issues.

Cons: The first thing you want to know is that this PCIe 3.0 x8 controller is likely to come with extremely outdated firmware. The kit DOES NOT come with a CD to help you install the drivers or management software. So you need to go to the LSI website and download the software and drivers. Annoyingly, their MegaRAID Manager software does not work with the firmware the card ships with. So you can waste a ton of time trying to figure out what the issue is. Updating the firmware is not simple, as there are not precise instructions on how to do it, or what to do if it doesn't work. Also, the card reports itself as a 9270-4i, not a 9271-4i...

Other Thoughts: So, this card is NOT like the LSI 3WARE cards of old. This card is absolutely an INDUSTRIAL RAID controller. Similar to the Dell and HP stuff I play with all the time in my job. Getting this card operational was painful. Flashing the firmware didn't work initally, in fact it failed spectacurarly. The only go news was that the card I desgined to recover from a failed flash attempt. I found that once the drives were removed, I was able to flash the card. Once the most recent firmware was installed, the MegaRAID Management Software for Windows suddenly worked. (This would have gone better if the LSI website for the 9271-4i drivers had a simple text document about flashing and installing the software. AKA "In order for the current MegaRAID software to work with any card, you must have firmware xxxx or above, this is the proceed for flashing the firmware..." From a performance standpoint, the 9271-4i [or 9270-4i] is about 80% the speed of the integrated Intel x79 / C600 workstation iRST/RST Enterprise controllers used in common workstations. The advantage is that while you max out the performance of your SSDs, you can 1) have up to 4 of them at SATA III speeds 2) you get VETTED firmware from LSI (as opposed to OptionROMs that are never updated or are very old from motherboard manufacturers) 3) you get updated drivers as issues are determined 4) significantly better OS support (Windows / Linux / UNIX) 5) You can have global spares, including an SSD hot spare that will copy one of your RAID 0 SSDs to the spare the moment a SMART error is detected prior to failure!

5 out of 6 people found this review helpful. Did you? Yes No
