Item#: N82E16816124010

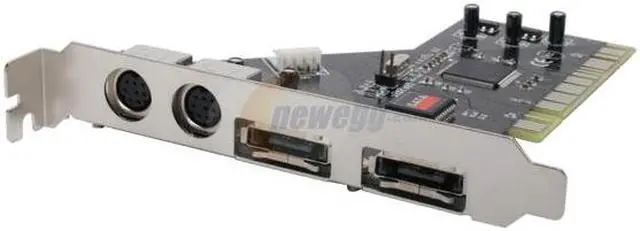

SYBA SD-INI-2ES PCI SATA Controller Card

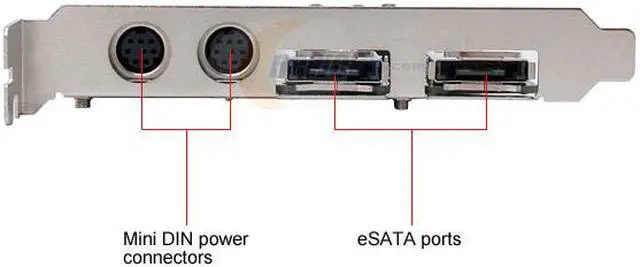

  • 2 x eSATA External Connectors
  • Up to 1.5Gb/s
ICON Loading...

Learn more about the Syba SD-INI-2ES

Model

Brand
SYBA
Model
SD-INI-2ES

Specifications

Type
SATA
External Connectors
2 x eSATA
Interface

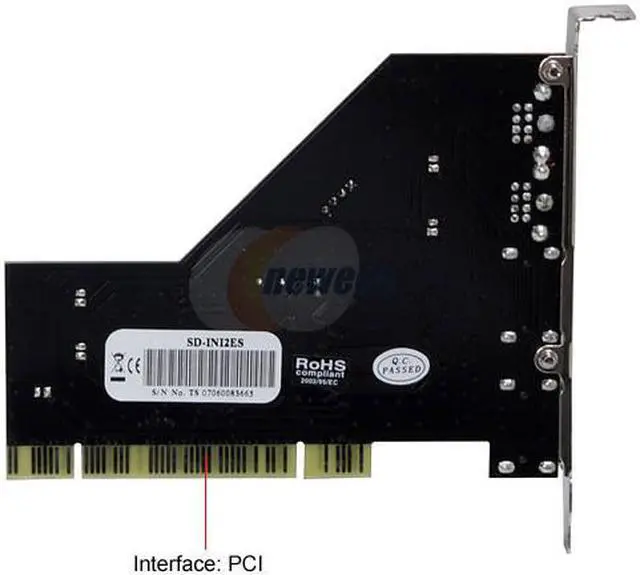

PCI
Transfer Rate
Up to 1.5Gb/s
Operating Systems Supported
Windows 98SE, ME, NT4.0, 2000, XP, Vista & Mac OS supported
Windows Vista
Certified for Windows Vista

Features

Features

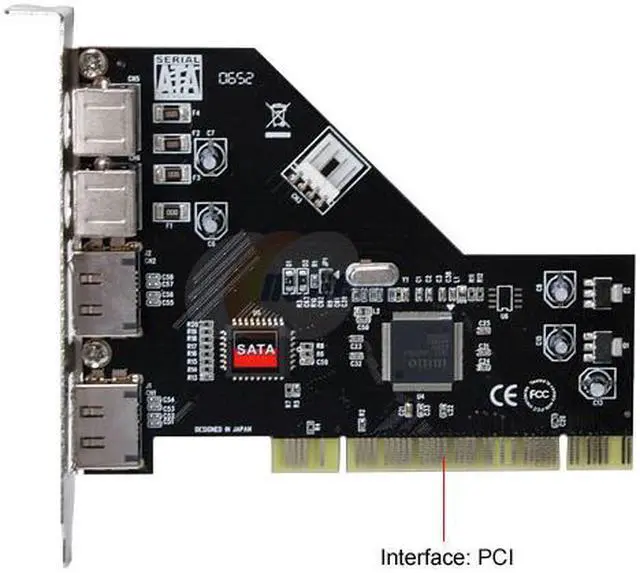

Initio INIC 1623 Serial ATA (SATA) host controller chipset
Compliant with Serial ATA Specification Revision 1.0
Supports Serial ATA Generation 1 transfer rate of 1.5Gb/s (150MB/s)
Compliant with PCI Specification Revision 2.3 running at 66MHz with 32-bit interfacing
Compliant with PCI IDE Controller Specification Revision 1.0
Compliant with Programming Interface for Bus Master IDE Controller Revision 1.0
Supports two independent Serial ATA channels
Support mini DIN power connector x2, eSATA connector x2, Floppy Drive connector x1
Independent 256-byte FIFOs per Serial ATA channel for host reads and writes
Fully Plug & Play
Support Hot Plug of external SATA devices

Manufacturer Warranty

Parts
Lifetime limited
Labor
1 year limited

Quick Info

Warranty

  • Limited Warranty period (parts): Lifetime
  • Limited Warranty period (labor): 1 year


Customer Reviews of the Syba SD-INI-2ES

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Justin H.
  • 5/13/2008 9:19:35 AM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

1 out of 5 eggsWhat a pain

Pros: Very cheap.

Cons: Althrough this card did boot at first and does support internal RAID, its eSATA ports would never work for me, which is the main function I bought it for. After a few months of (non) use, it's completely refused to even POST, thus causing the system to hang on boot until taken out.

Other Thoughts: For the price I paid for it, I'd rather happily toss this in the trash than even go through the trouble trying to get a warranty replacement from the manufacturer.

2 out of 2 people found this review helpful. Did you? Yes No

  • Douglas H.
  • 3/26/2008 9:15:58 AM
  • Tech Level: Average
  • Ownership: 1 day to 1 week
  • Verified Owner

1 out of 5 eggsNo Good in Dell XPS400

Pros: Cheap. It was 1/3 less the coat of a Rosewill.

Cons: Goes through all the Bios messages, then locks up. Can't enter my bios. I am going to have to pay shipping to return this and get the aforementioned Rosewill that I know will work from previous experience. Apparently, I should have bought the Rosewill in the first place, but I was trying to save a few bucks. Also, very hard to physically install on the motherboard for me.

2 out of 3 people found this review helpful. Did you? Yes No

  • Mike R.
  • 3/22/2008 5:57:44 PM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

3 out of 5 eggsIt works...eventually

Pros: Once you work through the quirks, it works.

Cons: Close to no support. The paper documentation gives little information, and the company forums are filled with simplistic answers and too many "the card must be defective" answers. You're on your own if you have issues (most likely boot issues). It is a SATA150 card but this is in the specs so not really a con.

Other Thoughts: I had booting problems that were eventually solved by enabling "Interrupt 19 Capture" in my MB BIOS. The support forums don't suggest this anywhere. The documentation says nothing about this. The card now works and the eSata seems to work as expected. I also jumpered the drive down to SATA150 but i have no idea if this is required or not.

2 out of 2 people found this review helpful. Did you? Yes No
