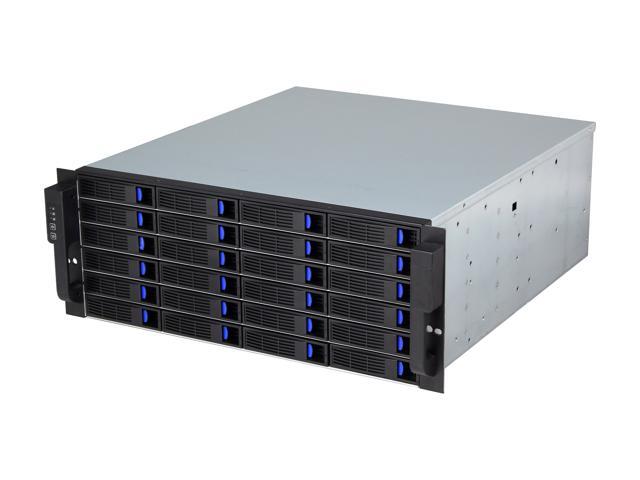

NORCO DS-24E 24 3.5" Drive Bays One SFF-8088 "IN" connector for connection to the host, two SFF-8088 "OUT" connectors for expansion to an additional JBOD enclosure External 4U 24 Bay 6G SAS/SATA Expander Rackmount RAID / JBOD Enclosure

  • SAS & SATA
  • 24 3.5" Drive Bays
  • Pin It
  • Email this page
ICON Loading...
NORCO
  • 4U rackmount design
  • 24 hot-swappable SATA II, III/SAS 6G drive bays
  • Built in 6Gbps SAS Expander for single SFF-8088 cable connectivity, LSISAS 2 x 36 / 28 expander IC embedded

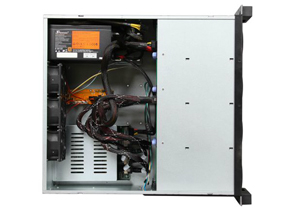

  • Backplanes are horizontally mounted for better ventilation
  • RoHS Compliant
  • OS Independent
  • Come with full-range power supply


Specifications

NORCO

Drive Bays 24 x hot-swappable SATA II, III/SAS 6G drive bays
Cooling Fans 3 x 80mm rear fans
Connectors One SFF-8088 "IN" connector for connection to the host, two SFF-8088 "OUT" connectors for expansion to an additional JBOD enclosure
OS Support OS Independent
Power Supply Options Come with standard ATX power supply
Dimensions (W x D x H) 19 x 18.9 x 7.0" (483 x 480 x 176mm)
Packing Double boxes
Weight (Without Hard Drive) 38lbs (17.2kg)(NET) | 41lbs (18.6kg)(GROSS)
Critical Temperatures 32 - 104°F (0 - 40°C) (Operating) | -4 - 140°F (-20 - 60°C) (Non-Operating)
Relative Humidity 5% to 95%, non-condensing

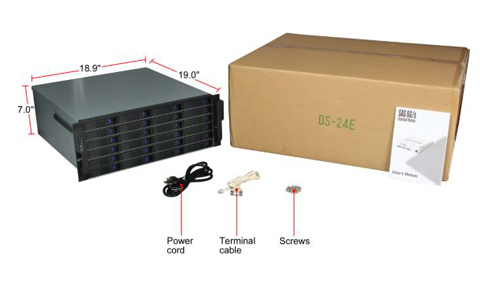

What's in the Box

NORCO

Learn more about the Norco Technologies Inc. DS-24E

Model

Brand
NORCO
Model
DS-24E

General Spec

Drive
SAS & SATA
External I/O
One SFF-8088 "IN" connector for connection to the host, two SFF-8088 "OUT" connectors for expansion to an additional JBOD enclosure

Expansion

3.5" Drive Bays
24

General Spec

Dimensions
18.9" x 19.0" x 7.0"
Weight
38.0 lbs.
Features
4U rackmount design.
24x hot-swappable SATA II, III/SAS 6G drive bays.
Built in 6Gb/s SAS Expander for single SFF-8088 cable connectivity, LSISAS2x36/28 expander IC embedded.
Backplanes are horizontal mounted for better ventilation
3 x 80mm rear fans

Manufacturer Warranty

Parts
1 year limited
Labor
1 year limited

Quick Info

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year


Customer Reviews of the Norco Technologies Inc. DS-24E

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Tim L.
  • 3/14/2014 2:48:20 PM
  • Tech Level: High
  • Ownership: more than 1 year
  • Verified Owner

4 out of 5 eggsDecent enclosure

Pros: Inexpensive for a 24 bay SAS-6 enclosure. Excellent SAS expander board. Solid power supply.

Cons: Cheap fans - They are weak and all 3 died, the first one in under a year.
Poorly assembled - Expander board has fan controllers and other features that are disabled by default. Fans are plugged directly into power instead of into the controller ports on the expander board.
Single power supply. To be expected for this price range, but redundant PSUs would make this really shine. Thankfully the power supply it comes with is a nice one.

Other Thoughts: We purchased this in Feb 2011 and put 8 3TB HGST SATA6 drives in it to start (RAID6 on an Areca 1880). It's run continuously since then with 2 sub-hour interruptions (moving to a new building, and replacing all fans). We've since added 2 more 3TB drives, 10 4TB SAS6 drives, and 4 100GB SSDs. These days it's hosting a ZFS pool with 50TB of useable space (multiple raidz2 vdevs, mirrored SSD ZIL, 2 SSD L2ARC, and 2 hot spares). Handles several TB of reads and writes daily without issue. Also survived 100F+ ambient temps for awhile when the AC in our server room failed (this was after the fans were replaced in this unit).

1 out of 1 people found this review helpful. Did you? Yes No

  • Anonymous
  • 2/12/2014 12:11:12 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year

5 out of 5 eggsGreat product!

Pros: Nice Seasonic power supply inside.
Uses a good LSI Expander

24 Drives!

I setup a RAID10, using (4) WD RE 2TB Disks with Cachecade using 9280 4i/4e Megaraid.

Setup another RAID5 using (4) 840 pro SSD! This thing rocks.

Quality build, simple, wire loomed inside.

Cons: BONEHEADS that buy this and don't know what they are doing, then give it a bad rap.

Fans are a little loud. I replaced the 3 in the back with SilenX fans.
Added another (quiet) fan for extra cooling inside

Other Thoughts: Buy it if you know what you are doing, and want a nice simple enclosure.

Would recommend the LSI 9280 4i/4e Megaraid card.

Did you find this review helpful? Yes No

  • James M.
  • 1/16/2014 3:11:16 PM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month

1 out of 5 eggsRisk it if you have too!

Pros: Reasonably priced, seems to be fairly good quality. Good looking box. Easy to connect and setup.

That's where it ends.

Cons: Quality contro is poor, I thnik kitty liter has better quality control than these guys.

No ryhme or reason as to where the expender cables were connected to. Tech support sucks. Typically answers half of my questions that I send in an email. takes multiple emails anover a week to get an answer to any set of questions.

No manual for their aspect of the unit.

I based my purchase on what the reviews were, Not happy, but I don't really have a choice now that I bought it.

Sucks to be me.

Other Thoughts: I would choose a different product.

Manufacturer Response:

Dear Valued Customer,

We apologize for the issues you are experiencing with this product. Please contact us at service@norcotek.com or call 626-965-7470, so we may get more details and assist you in resolving this issue.

Best Regards,
Norco Support Team

1 out of 4 people found this review helpful. Did you? Yes No

  • christopher r.
  • 5/2/2013 6:56:04 PM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsNice Solution

Pros: Works with Solaris 11.1 out of the box.
Good results with Seagate ST4000DM000 4 TB 3.5" HD
Paired with 16-Port SAS 9201-16i 6Gb/s Per Port SATA+SAS PCIe 2.0
Ultra 40 M2 2222 with 2 back planes and 8 internal drive bays.

Cons: stock fans are L.O.U.D replace them with something quiet and your good to go.

Other Thoughts: Happy so far. If things change I will update this review.

3 out of 3 people found this review helpful. Did you? Yes No

  • Robert D.
  • 3/23/2013 6:05:44 AM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

4 out of 5 eggs88 TB Server in Single Volume

Pros: It worked right out of the box with no special configuration required.
Nicely constructed, all internal wiring is neatly loomed, not zip-tied into bundles as you usually find. Cover can be removed by just removing two screws. System is capable of supporting your drives as one large volume. I don't know the upper limit, but I have a single volume of 88 TB.

Speedy! I transferred files from my internal RAID drive with sustained rates of 150 to 200 MB/sec. I did a concurrent transfer from two network cards and two NAS servers for a combined total of 350 to 400 MB/sec. Never the less, it's taking days to transfer 60 TB of video files from the NAS boxes to the new server.

Cons: Poor quality control. The unit arrived with the power connector for the top back-plane disconnected. I soon found out why - it didn't work! There are several spare connectors, so I swapped them around until I got a working combination. This is a good example of how truly fragile RAID is, you can loose the whole array because of one bad connection!

It's hard to believe that the manufacturer let this get out the door in a non-working condition. Never the less, I would still buy another one if I need to expand the system. The box supports daisy-chaining up to two additional boxes.

Other Thoughts: If you are trying to build a video server with one large volume, beware, every component of the system must be able to support a single volume over 16TB. I am presenting one possible solution here.

My "server" is running Windows 7 64-bit (don't use 32-bit). I installed an Areca ARC-1882iX-24-4G-NC in the server and connected the box to the server with a Belkin Model F3X1983-04M 13 ft. Serial Attached SCSI (SAS) external cable. I populated the drive bays with (24) Hitachi HUS724040ALE640 in RAID 6. I chose enterprise drives and bought a few spares now, because when I need the spares this drive will probably be out of production.

6 out of 6 people found this review helpful. Did you? Yes No

  • Damian K.
  • 2/15/2012 1:07:22 PM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsGreat unit

Pros: Great unit for the price. Does what it is supposed to do. Good support from the vendor, I had a failing PS unit and the vendor was very responsive (even over a weekend) with an new PS sent, no paper work required! I replaced the original fans for some quieter fans. I lost a little airflow but with 24 WD RE4 2 TB running 24 hours a day, highest temp seen is 104F. Given my office hit 75, and reduced the airflow, hard to beat. Additional note: The drive trays work well with 2.5” drives, I tested with some SSDs in and they worked great with SSDs with bottom mounted screws in the tray.

Cons: Fans are LOUD! but work great.

Other Thoughts: I’m about to get a second unit so I guess you can say I like it.

5 out of 6 people found this review helpful. Did you? Yes No

  • Chris W.
  • 8/6/2011 9:39:20 AM
  • Tech Level: Low
  • Ownership: less than 1 day

5 out of 5 eggsadvice please

Pros: Hey guys i been eyeing this up for awhile now.. What would all be needed to get this to work in a home environment?

This does have server capability correct? so basically i would just need to buy this and i would be up and running? or would i need a server as well? if so, what server would you recommend?

Cons: i have about 2000 to spent total.

0 out of 48 people found this review helpful. Did you? Yes No

  • William H.
  • 5/2/2011 3:26:45 PM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsRAID for Windows Home Server 2011

Pros: Its not exactly cheap but it is about the least expensive RAID enclosure of this size that I have seen. I thought about going with the bare drive version and trying to set up my own SAS Expander but it seemed like the price kept adding up to about what this would be. Its nice having the integrated SAS expander. I was pleasantly surprised that the 3 fans + power supply were quiet. I was worried it would have a airplane fan on it suitable for server rooms and would drive me crazy at my house but it is nice and quiet and seems to provide sufficient cooling for the drives.

Cons: None I have found so far.

Other Thoughts: The Drive extender in Windows Home Server 2008 was a nice way to easily add a drive at a time but with 10 drives and a few errors / corrupt volumes scanning with CHKDSK was a painful process. WHS 2011 ditched the Drive Extender feature along with shared file duplication and encourages a RAID configuration for data protection. It is a more expensive startup cost but probably much more reliable and gives better performance for streaming video.

6 out of 6 people found this review helpful. Did you? Yes No

  • NORMAN G.
  • 2/12/2011 7:12:20 PM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsJust add drives..

Pros: We needed more disks for our backup server, looked at big namebrand solutions and they were silly expensive, tried this Norco and works awesome. Installed (24) Hitachi 3TB drives, turned it on, connected it to an Areca 1880X RAID adapter in our backup server with an SFF-8088 cable and formatted two RAID6 arrays. Can you say S-T-O-R-A-G-E.

I opened the case and looked inside at the expander they used and its by Areca, went online and noticed it employs the LSISAS2x36 expander chip, which I also read is the best SAS-2 expander chip on the market, so the guts of this thing appear to be best of breed.

Cons: None so far. I guess if I was going to use this for home it might seem pricey and you might be able to jimmy rig something cheaper with random parts, but we didn't have time for that - we literally just needed a box to add more drives and then forget about.

Other Thoughts: At first we were concerned whether the three rear fans would be enough cooling for 24 drives, but after running this for over a week in a room at 75 degrees ambient, its more than adequate.

19 out of 19 people found this review helpful. Did you? Yes No
