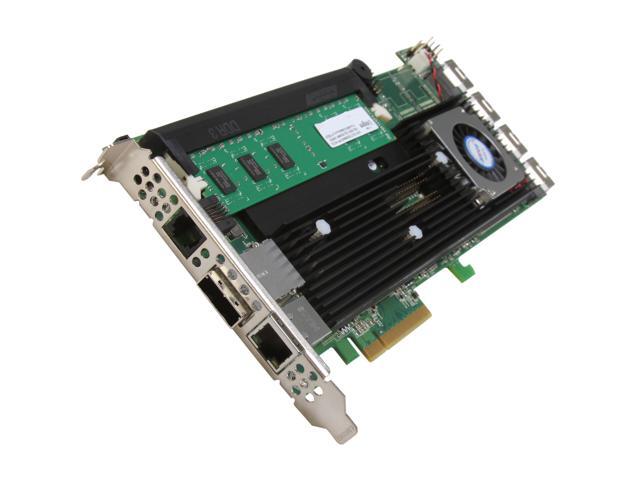

areca ARC-1882IX-16 PCI-Express 3.0 x8 SATA / SAS 20 Ports 6Gb/s SAS/SATA RAID Adapter

(1)

Write a Review

Sold and Shipped by Newegg

RAID level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD
16 x SAS Internal Connectors
4 x SAS External Connectors

Overview
Specifications
Warranty & Returns
Reviews
Q&A

SAS 2.0 is designed for much higher speed data transfer than previous available and backward compatibility with SAS 1.0. The 6Gb/s SAS interface supports both 6Gb/s and 3Gb/s SAS/SATA disk drives for data-intensive applications and 6Gb/s or 3Gb/s SATA drives for low-cost bulk storage of reference data. The ARC-1882 family includes 8 ports low profile as well as full height 12/16/24 internal ports with additional 4 external ports models.

Learn more about the Areca ARC-1882IX-16

Model

Brand: areca

Model: ARC-1882IX-16

Details

Type: SATA / SAS

External Connectors: 4 x SAS

Internal Connectors: 16 x SAS

Interface: PCI-Express 3.0 x8

Cache Memory: 1GB of ECC DDR3-1333 single rank registered SDRAM

RAID: RAID level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD

Operating Systems Supported: Windows 7/2008/Vista/XP/2003
Linux
FreeBSD
VMware
Solaris 10/11 x86/x86_64
Mac OS X 10.4.x/10.5.x/10.6.x/10.7.x

Dimensions: 9.84" x 3.87"

Features

Features: Dual Core RAID-on-Chip (ROC) 800 MHz processor

One 240-pin DIMM socket for DDR3-1333 ECC single rank registered SDRAM module using x8 or x16 chip organization, upgrade from 1GB (default) to 4GB

Write-through or write-back cache support

Support up to 16 internal or 4 external 6Gb/s SAS ports

Multi-adapter support for large storage requirements

BIOS boot support for greater fault tolerance

BIOS PnP (plug and play) and BBS (BIOS boot specification) support

Support EFI BIOS for Mac Pro

NVRAM for RAID event & transaction log

Redundant flash image for controller availability

Battery Backup Module (BBM) ready (Option)

RoHS compliant

Warranty, Returns, And Additional Information

Warranty
Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Manufacturer Contact Info
Manufacturer Product Page|
Website: http://www.areca.us/|
Support Phone: 1-714-961-0800
Support Email: support@tekram.com|
Support Website|
View other products from Areca

Customer Reviews of the Areca ARC-1882IX-16

Do you own this product? Write a Review

Filter Results Last 2 Weeks (0) Last 6 Months (0) All Reviews (1) 0% (0) 0% (0) 0% (0) 0% (0) 100% (1) Verified Owners Video Reviews Mfr. Responses keyword Go
jason s. 6/18/2013 6:26:14 AM Ownership: 4/5 Verified Owner	Rating: 1/5Beware Lengthy repair This review is from: areca ARC-1882IX-16 PCI-Express 3.0 x8 SATA / SAS 20 Ports 6Gb/s SAS/SATA RAID Adapter Pros: Amazing card, works extremely well. I have 4 servers i built all with the same card Cons: The newest of the cards failed after 3 months, which is abnormal for this type of hardware and wouldn’t have been a big deal except. to get it taken care of under warranty. i had to fight with them to get them to fix it and i had to send the card out for repair essentially bringing down this server for the 6 weeks it took them to repair the card. Other Thoughts: Buy two if you want to use this card. as for me i wont be buying them again 1 out of 1 people found this review helpful. Did you? Thanks for the valuable feedback you provided!

Filter Results

0% (0)
0% (0)
0% (0)
0% (0)
100% (1)

Verified Owners
Video Reviews
Mfr. Responses

jason s.
6/18/2013 6:26:14 AM
Ownership: 4/5
Verified Owner

Rating: 1/5Beware Lengthy repair

Pros: Amazing card, works extremely well. I have 4 servers i built all with the same card

Cons: The newest of the cards failed after 3 months, which is abnormal for this type of hardware and wouldn’t have been a big deal except. to get it taken care of under warranty. i had to fight with them to get them to fix it and i had to send the card out for repair essentially bringing down this server for the 6 weeks it took them to repair the card.

Other Thoughts: Buy two if you want to use this card. as for me i wont be buying them again

1 out of 1 people found this review helpful. Did you? Yes
