Item#: N82E16816151147

areca ARC-5026 RAID 0/1/10(1E)/3/5/6, Single Disk or JBOD 4 3.5" Drive Bays 2 x Thunderbolt / 1 x USB 3.0 4-Bay to Thunderbolt & USB 3.0 Protable RAID Unit w/LCD, 250Watt PSU

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • SATA 6Gb/s

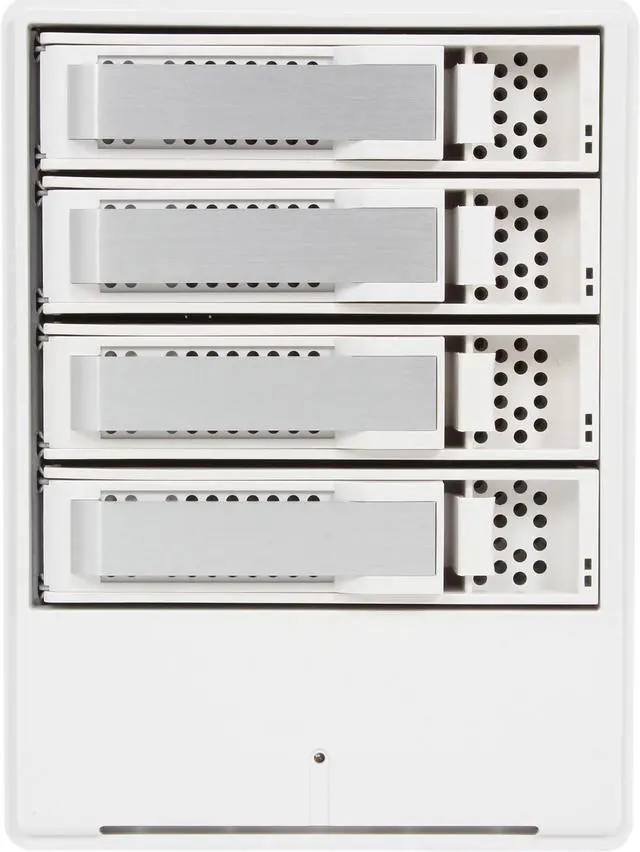

  • 4 3.5" Drive Bays
  • RAID 0/1/10(1E)/3/5/6, Single Disk or JBOD

LOADING... LOADING...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

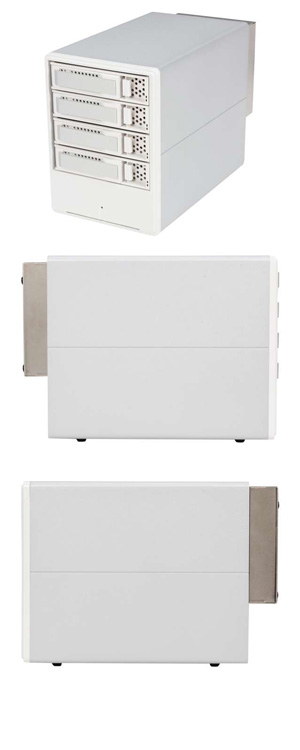

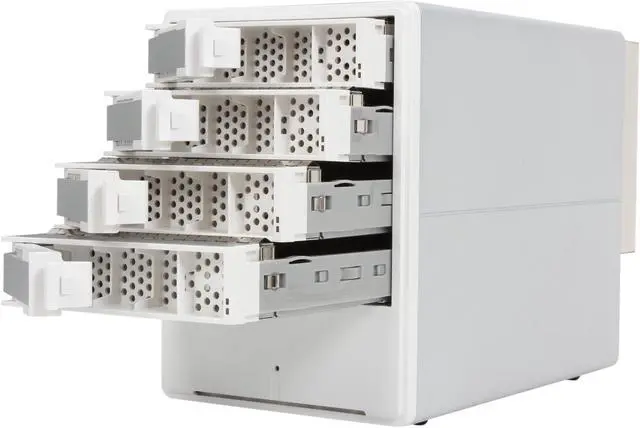

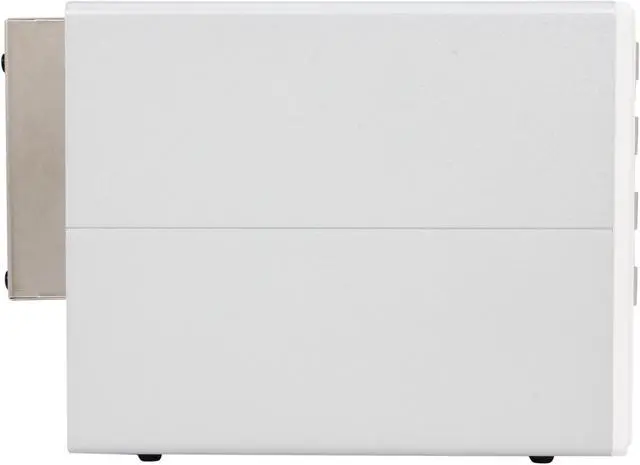

Four-Bay Thunderbolt & USB 3.0 RAID TOWER

Introducing the compact and whisper quiet Areca ARC-5026 - designed with powerful and versatile connectivity through either Ultra Fast Thunderbolt or SuperSpeed USB 3.0, allowing you to move data without limits and delivering outstanding performance, high storage capacity, and fail-safe operation. Ingest, edit, archive and playback multiple steams of uncompressed 8-bit and 10-bit HD video with relative ease and lightning fast responsiveness. Supports up to 4TB drives in each hot-swappable drive bay, giving you up to 16TB of raw storage (Approx. 12TB of available storage in RAID 5) making the ARC-5026 the best in class solution around.



THUNDERBOLT CONNECTIVITY

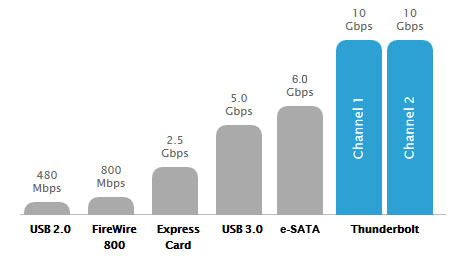

A revolutionary I/O technology that supports high-performance data devices and high-resolution displays through a single, compact port. It sets new standards for speed, flexibility and simplicity. Thunderbolt gives you two channels on the same connector with 10Gbps of throughput in both directions, so you can move data to and from peripherals up to 20 times faster than with USB 2.0 and up to 12 times faster than with Firewire 800.

areca RAID

With Thunderbolt technology, you finally have a way to get the same high performance storage to your laptop or just as likely to build a professional video setup around the latest Thunderbolt technology. If you're a video editor, imagine using a single port to connect high-performance storage and transfer your media files reaching 800MBps from just about any Thunderbolt enabled computer or laptop.

areca RAID

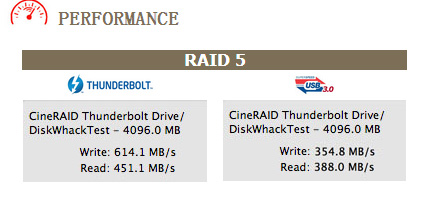

Highlights

areca RAID

Features

  • 933Mhz I/O Processor
  • 1GB on Board DDR3 SDRAM with ECC Proctection
  • Dual Thunderbolt Ports + Single USB 3.0 Port
  • Battery Backup Module Ready (optional)

Built-In RAID Controller

  • Supports RAID level 0, 1, 1E, 3, 5, 6, 10, 30, 50, 60, Single Disk or JBOD
  • Multiple RAID selection
  • Online array roaming
  • Online RAID level/stripe size migration
  • Online capacity expansion and RAID level migration simultaneously
  • Online Volume set growth
  • Support global hot spare and local hot spare
  • Instant availability and background initialization
  • Automatic drive insertion / removal detection and rebuilding
  • Disk scrubbing / array verify scheduling for automatic repair of all configured RAID sets
  • Support intelligent power management to save energy and extend service life
  • Support NTP protocol to synchronize RAID controller clock over the on-board LAN port

RAID Management

  • Field-upgradeable firmware in flash ROM

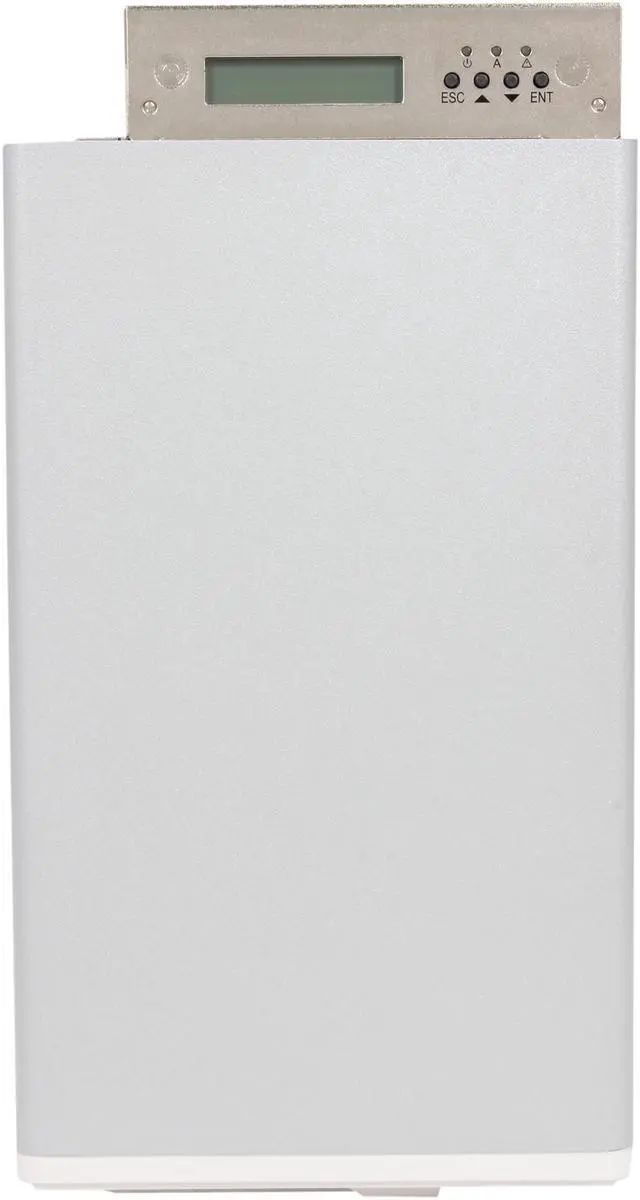

  • Firmware-embedded RAID manager via web browser based MRAID storage manager or LCD
  • 10/100 LAN port for out of band Firmware-embedded browser based RAID manager, SMTP manager, SNMP agent and Telnet function
  • API library for customer to combine GUI with its own monitor utility
  • Command line Interface

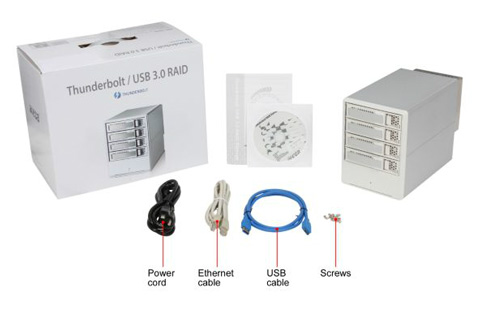

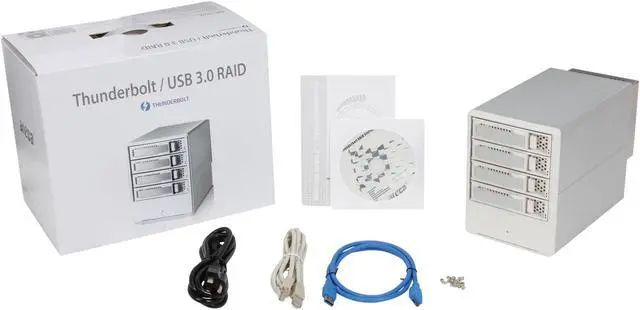

What's in the Box

areca RAID

Learn more about the Areca ARC-5026

Model

|
Brand
areca
Model
ARC-5026

Details

|
Drive
SATA 6Gb/s
External I/O

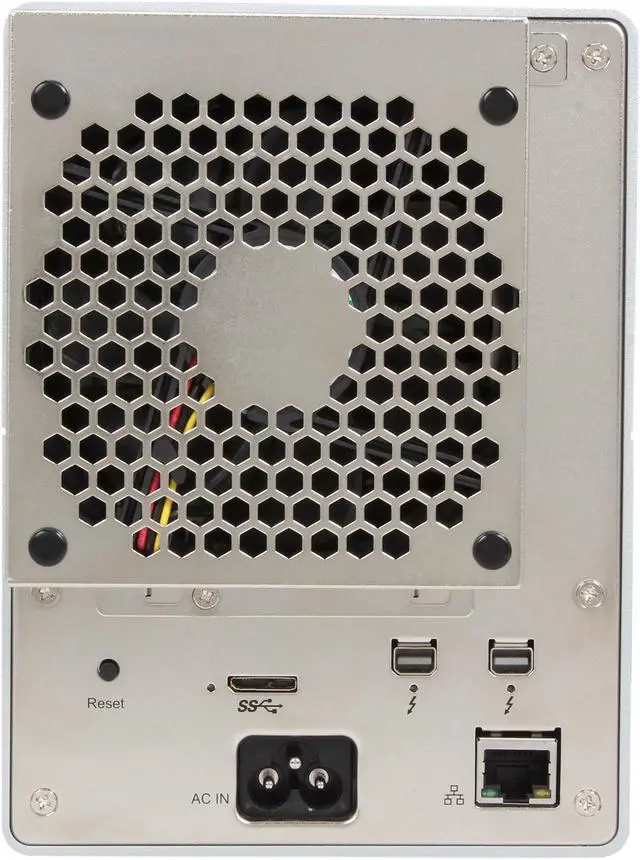

2 x Thunderbolt / 1 x USB 3.0
RAID Levels
RAID 0/1/10(1E)/3/5/6, Single Disk or JBOD

Expansion

|
3.5" Drive Bays
4

System Management

|
OS Supported
Mac OS X 10.6.x/10.7.x/10.8.x
Windows 7/8

Mechanical Spec

|
Power Supply
250W

Features

|
Features
Controller Architecture:
ARM_based storage I/O processor
1GB on-board SDRAM with ECC protection
Write-through or write-back cache support
Support 4 internal 6Gb/s SATA ports
Multi-RAID storage support for large storage requirements
NVRAM for RAID event & transaction log
Redundant flash image for adapter availability

Drive Support: Up to 4 x 6Gb/s SATA/SSD

Host Connection:
-Thunderbolt-to-SATA:
Two Thunderbolt technology ports
Simultaneous bi-directional, 10Gbps transfers over a
single cable
Dual-protocol support (PCI Express and DisplayPort)
Compatible with existing DisplayPort devices
Daisy-chaining devices
-USB 3.0-to-SATA:
One USB 3.0 port
Offers a 10x speed increase over USB 2.0 high-speed to
5 Gbps
Auto-negotiate to USB 2.0 speeds

RAID Features:
RAID level 0, 1, 10(1E), 3, 5, 6, Single Disk or JBOD
Multiple RAID selection
Support up to 1MB stripe size
Online array roaming
Offline RAID set
Online RAID level/stripe size migration
Online capacity expansion and RAID level migration simultaneously
Online volume set growth
Support global and dedicated hot spare
Instant availability and background initialization
Automatic drive insertion / removal detection and rebuilding
Multiple pairs SSD/HDD disk clone function
SSD automatic monitor clone (AMC) support
Greater than 2TB capacity per disk drive support
Greater than 2TB per volume set (64-bit LBA support)
Support intelligent power management to save energy
and extend service life

RAID Management:
Field-upgradeable firmware in flash ROM
Firmware-embedded web browser-based McRAID storage manager, SMTP manager, and SNMP function via ArcHttp proxy server
Support Command Line Interface (CLI)
API library for customer to write monitor utility.
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details
  • Return Policies
    • Return for refund within: 30 days
    • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Standard Return Policy.
