Tripp Lite SR48UB 48U Rack Enclosure Server Cabinet

  • Black
  • 3000 lbs stationary 2250 lbs rolling Weight Capacity
  • Rack Enclosure
  • Pin It
  • Email this page
ICON Loading...

SmartRack enclosures are designed for secure, high density server and networking applications in IT environments. Designed with provisions to integrate cooling, power distribution and cable management, SmartRack enclosures make ideal homes for mission-critical equipment. Vendor-neutral square hole/cage nut mounting for guaranteed compatibility with all EIA-310-D compliant 19" equipment. Enclosures ship fully assembled for rapid deployment and roll into place on heavy-duty casters. Toolless mounting slots allow quick installation of PDUs and vertical cable managers.



PRODUCT DESCRIPTION

Tripp Lite's SR48UB is the ideal solution for secure, high-density server and networking applications in IT environments. This premium 48U SmartRack™ Enclosure Cabinet is packed with features designed to simplify rack equipment installations and rack equipment maintenance: top-panel cable routing ports, perforated doors to promote efficient airflow, adjustable mounting rails, toolless vertical PDU mounting and more. And as part of the SmartRack family, the SR48UB is compatible with Tripp Lite's extensive range of rackmount accessories, enabling you to customize your solution to meet any requirement. The SR48UB ships fully assembled for quick installation and comes with a 5-year warranty. This enclosure also meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) compliance.

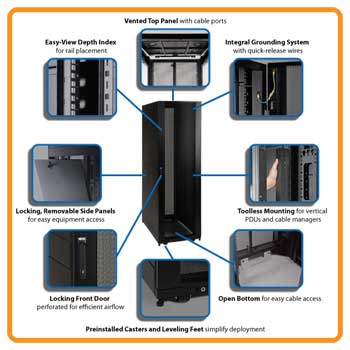

Optimized for Datacenter Applications

Optimized for Data Center Applications

The SR48UB is optimized for data center and other high-density IT applications. Its massive front to rear ventilation capacity (door perforation pattern providing 65+% open space) meets or exceeds server manufacturer requirements. The SR48UB offers full compatibility with a wide range of airflow optimization accessories as well as cable management accessories. It features integrated baying tabs that make it easy to combine multiple enclosures in rows for data center applications. This enclosure is also 100% compatible with today's state-of-the-art hot-aisle/cold-aisle data center configurations.

Toolless Vertical Mounting Rails
Removable Side Panels

Simple Equipment Installation

The SR48UB is compatible with all standard 19-inch rack equipment. It features front and rear pairs of vertical rails with square mounting holes. The rails are adjustable in quarter-inch increments to accommodate equipment depths from four to 42 inches. Adjustment is quick and convenient—simply unscrew the rails, slide them to the desired depth and restore the screws. An easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. The rails feature square mounting holes and are capable of supporting up to 3000 lbs. of equipment with included installation hardware. Each rack space within the enclosure is numbered for ready reference.

Toolless Vertical Mounting Rails

The SR48UB features two adjustable vertical mounting rails that support toolless button-mount 0U installation of compatible PDUs and cable managers. Each rail can accommodate two vertical PDUs or cable managers side by side, for a total of four units per enclosure. These vertical mounting rails make it easier to route power and cabling to installed rack equipment. They also reduce cord and cable clutter that could block airflow through the enclosure.

Secure Equipment Access

The SR48UB is designed to provide a safe, secure installation solution for mission-critical rackmount equipment. It features locking, reversible, removable front and rear doors, perforated to promote efficient airflow, and locking, removable side panels. Locking doors and side panels prevent unauthorized access to installed equipment while making it easy for IT personnel to perform inspections, maintenance and equipment replacement. The side panels are half size (two per side) for ease of removal and reinstallation. The split rear door design reduces clearance requirements for service access, allowing the enclosure to be placed closer to a wall. This enclosure also meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) compliance for physical security.

Vented Top Panel with Cable Ports

The top panel of the SR48UB is furnished with vents designed to help remove warm air from the enclosure and draw in cool air by convection. It also supports installation of standard user-supplied case fans. The top panel is provided with ports for cable routing, and is designed for quick, toolless removal with no need to disconnect cables. The SR48UB is designed with an open bottom to facilitate cable access.

Integral Grounding System

All components of the SR48UB are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground. The removable front and rear doors feature quick-release ground wires.

Preinstalled Casters and Leveling Feet

To simplify deployment, the SR48UB comes with preinstalled casters and leveling feet. The casters enable the SR48UB to be easily maneuvered into the desired location, where it can then be secured in place by adjusting the levelers. The SR48UB has a rolling load capacity of 2250 lbs., enabling rack equipment to be installed in the enclosure prior to final deployment. Note: the casters are intended for minor position adjustments within the final installation area only and are not designed for moving the enclosure over long distances.

Peace of Mind

The SR48UB comes with a 5-year product warranty and a rapid-response repair/replacement policy that's unmatched in the industry.

Technical Specifications

  • Rack spaces: 48
  • Load capacity (rolling): 2250 lbs.
  • Load capacity (stationary): 3000 lbs.
  • Mounting depth: 4 to 37 in.
  • Mounting holes: Square (mounting hardware included)
  • Doors: Front/rear (lockable/reversible/perforated)
  • Side panels: 2 per side (lockable/removable/perforated)
  • Top panel: Vented/removable
  • Cable ports: Top panel (removable covers)
  • Height: 89 in.
  • Width: 23.6 in.
  • Depth: 43 in.
  • Weight: 309 lbs.
  • Material of construction: Steel
  • Warranty: 5 years

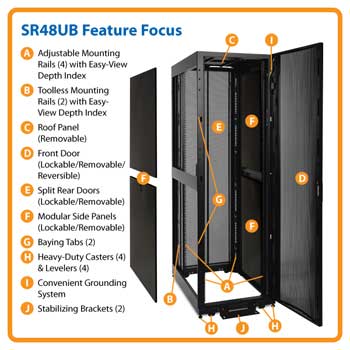

SR48UB Feature Focus

What's in the Box

  • SR48UB SmartRack Enclosure
  • (4) Side panels
  • (4) Side panel locks
  • (2) Door and side panel keys
  • (50) M6 screws
  • (50) M6 cage nuts
  • (50) M6 washers
  • Owner's Manual
What’s in the Box
Tripp Lite
Standard Rack Enclosures
SR42UB
SR42UB
SR45UB
SR45UB
SR48UB
SR48UB
Rack Space 42U 45U 48U
Weight Capacity 3000 lbs 3000 lbs 3000 lbs
Doors and Side Panels Yes Yes Yes
Warranty 5-year 5-year 5-year

Learn more about the Tripp Lite SR48UB

General

Brand
Tripp Lite
Model
SR48UB

Specification

Type
Rack Enclosure
Rack Units
48U
Color
Black
Weight Capacity
3000 lbs stationary
2250 lbs rolling

Dimension & Weight

Unit Dimension
89.0" x 23.63" x 43.0"

Features

Features
48U SmartRack enclosure with doors and side panels
4 interior vertical posts with unthreaded square hole openings
Standard 24" width for optimizing floor space
Ships fully assembled
Massive front to rear ventilation capacity
Locking, removable, reversible front and rear doors
Locking, removable side panels keyed alike with doors
Preinstalled casters and leveling feet

Manufacturer Warranty

Parts
5 years limited

Quick Info

Warranty

  • Limited Warranty period (parts): 5 years
  • Limited Warranty period (labor): 0 day
