Item#: N82E16816228063

Tripp Lite SRW12US33 12U SmartRack Extended Depth Wall Mount Rack Enclosure Cabinet

  • Black
  • 250 lbs -Stationary Weight Capacity
  • Wall Mount Cabinet
  • Pin It
  • Email this page
ICON Loading...


The SRW12US33 12U Wall Mount Rack Enclosure Cabinet is designed to integrate wall-mounting, easy equipment access, and cable management in IT network applications with limited floor space. Extended depth to 33" offers heavy duty construction to handle added levarage. Ventilated front door and side panels allow generous airflow to keep equipment operating safely. Adjustable rack rails with square mounting holes accommodate up to 12U of standard 19" rackmount equipment. A sturdy hinge between the cabinet and the wall-mount bracket allows the cabinet to swing away from the wall for easy access to equipment and cabling. Top and bottom panels include convenient cutouts for cable routing.



PRODUCT DESCRIPTION

Get all your valuable equipment protected, secure and off the ground! Tripp Lite's SRW12US33 Extended Depth Wall-Mount Rack Enclosure Cabinet is the ideal storage solution for rackmount equipment in applications with limited floor space. Constructed with a hinged wall mounting bracket and a sturdy steel frame, it can accommodate up to 250 lbs. of equipment in 12U of rack space. With adjustable mounting depths from 3 to 33 inches, the SRW12US33 fits all standard 19" equipment regardless of vendor. To allow easy access to rackmounted equipment, the enclosure cabinet is hinged to swing away from the wall mounting bracket. The SRW12US33 also features perforated lockable side panels and front door, assuring generous airflow to keep equipment operating safely. The front door is reversible and the side panels are removable for easy access to equipment. The top and bottom panels of the enclosure include convenient cable routing ports. The SRW12US33 ships fully assembled and with a 5-year product warranty. This enclosure also meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) compliance.

Simple Setup and Equipment Installation
Innovative, Heavy-Duty Construction

Simple Setup and Equipment Installation

The SRW12US33 comes fully assembled, eliminating the need for time-consuming, confusing assembly and installation. When the time comes to install equipment, the front and rear pairs of rails adjust quickly and conveniently in one-inch increments. Simply unscrew the rails, slide them to the desired depth and restore the screws. Square mounting holes and included hardware support up to 250 lbs. of standard 19-inch rack equipment in 12U of space.

Extended-Depth for Complete Compatibility

With its 33-inch extended-depth construction, the SRW12US33 accommodates all standard 19-inch rack equipment, regardless of vendor, making it ideal for any application requiring a secure enclosure in limited floor space. The heavy-duty steel construction easily handles extra leverage created by bulky equipment.

Easy, Secure Equipment Access

The wall bracket includes a sturdy hinge that allows the SRW12US33 to swing away from the wall for convenient access to equipment and cabling. The swing direction of the enclosure and door can be reversed by rotating the enclosure 180 degrees before installation. The wall bracket locks to provide secure access. The front door locks to provide secure access and is perforated to promote efficient airflow.

Innovative, Heavy-Duty Construction

The SRW12US33 features rugged, all-steel construction to handle heavy equipment loads. Its side panels are lockable and removable for ease of installation and service access. The side panels are perforated to allow generous airflow.

Vented Top and Bottom Panels with Cable Ports

The top and bottom panels of the SRW12US33 are furnished with vents designed to help remove warm air from the enclosure and draw in cool air by convection. They also support installation of standard user-supplied case fans. The top and bottom panels also include ports for cable routing through the movable portion of the enclosure or the fixed wall bracket. Removable covers block unused cable ports.

Peace of Mind with Long Warranty and PCI Compliance

The SRW12US33 comes with a 5-year manufacturer's product warranty and meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) compliance.

Technical Specifications

  • Rack spaces: 12
  • Load capacity: 250 lbs.
  • Mounting depth: 3 to 33 in.
  • Mounting holes: Square (mounting hardware included)
  • Door: Lockable/reversible/perforated
  • Side panels: Lockable/removable/perforated
  • Top & bottom panels: Vented
  • Cable ports: Top and bottom panels (removable covers)
  • Height: 25.00 in.
  • Width: 23.63 in.
  • Depth: 33.50 in.
  • Weight: 100 lbs.
  • Material of construction: Steel

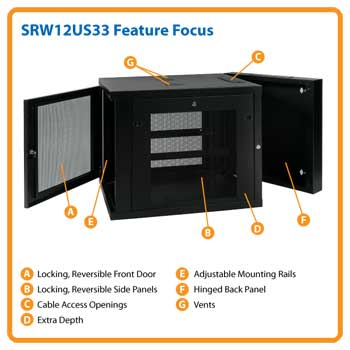

SRW12US33 Feature Focus

What's in the Box

  • SRW12US33 Wall-Mount Rack Enclosure
  • (36) M6 screws
  • (36) M6 cage nuts
  • (36) M6 washers
  • (2) Keys
  • Owner's Manual
What’s in the Box
Tripp Lite
SmartRack™ Wall-Mount Enclosures
SRW12US33
SRW12US33
SRW12US
SRW12US
SRW12USG
SRW12USG
Rack Space 12U 12U 12U
Weight Capacity 250 lbs. 200 lbs. 200 lbs.
Hinged Bracket Yes Yes Yes
Depth 33" 20.5" 20.5"
Special Features Extended Depth Plexiglas® Door
Meets PCI Standards Yes Yes Yes
Warranty 5-year 5-year 5-year

Learn more about the Tripp Lite SRW12US33

General

Brand
Tripp Lite
Model
SRW12US33

Specification

Type
Wall Mount Cabinet
Rack Units
12U
Color
Black
Weight Capacity
250 lbs -Stationary

Dimension & Weight

Dimension
25.00" x 23.63" x 33.50"
Weight
100 lbs.

Features

Features
12U with adjustable front and rear vertical rackmount rails.

33" deep with heavy duty construction to handle added leverage.

Hinged cabinet swings away from wall bracket for easy equipment access (swing direction is reversible).

Locking, reversible front door and locking, removable side panels.

Fully assembled for quick installation.
Industry Standard
EIA-310-D, IEC 60297-3-100, DIN 41494, IP250 Protection Rating, RoHS, UL 60950

Manufacturer Warranty

Parts
5 years limited
Labor
5 years limited

Quick Info

Warranty

  • Limited Warranty period (parts): 5 years
  • Limited Warranty period (labor): 5 years


Customer Reviews of the Tripp Lite SRW12US33

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Earl M.
  • 11/11/2013 9:57:25 AM
  • Tech Level: High
  • Ownership: 1 day to 1 week

5 out of 5 eggsNice

Pros: Excellent build quality, solid construction. All the hinges are smooth, and and all the locking mechanisms are constructed well. Deep enough to fit standard length server units and have room for cabling. The removable panels and hinged rear hatch make setup and maintenance a breeze. This design deserves a 6th egg, +1 Tripp Lite, i will defiantly purchase more of these when needed.

Cons: Since this unit is meant to be mounted outside the server room more fan mounts would be nice. Also, this unit is installed in a dusty area and filter options for the mesh would have been nice. I was able to take filters out of some broken AC units and attach them over the mesh with strip magnets.

Other Thoughts: Best wall rack design i have ever encountered, easy to access, and the cons are just ideas to make it even better.

Did you find this review helpful? Yes No

  • Jack S.
  • 4/21/2011 12:50:56 AM
  • Tech Level: High
  • Ownership: less than 1 day
  • Verified Owner

1 out of 5 eggsPackaging sucks

Pros: Well built, Nice looking Cabinet. Lockable sides, front,swing.

Cons: The packaging on this is a JOKE. The first one arrived damaged by the trucking company. But I have a hard time faulting them as There was basically NO protection on this unit at all. 4 corner strips was the complete protection, no box, no side protection, etc. And instead of 3 days, it took more like 7, with the replacement almost a total of 4 weeks.

Other Thoughts: I deducted 2 eggs for the packaging, 1 for the speed of the shipping and 1 for Newegg's response when I asked for better packaging on the 2nd unit "That is NOT our policy" is what I was told. This second unit has also arrived with a dent in the side that I will now have to decide if I can live with or return and wait another 7 to 14 days.

8 out of 13 people found this review helpful. Did you? Yes No
