Tripp Lite SRW9U 9U SmartRack Wall Mount Rack Enclosure Cabinet

PRODUCT DESCRIPTION

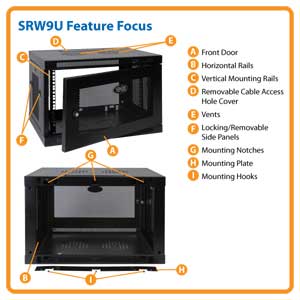

With its wall-mounting bracket and steel frame, Tripp Lite's SRW9U SmartRack™ Wall-Mount Rack Enclosure Cabinet is the ideal storage solution for rackmount equipment in applications with limited floor space such as wiring closets, POS stations, offices and classrooms. The SRW9U accommodates up to 140 lb of equipment in 9U of rack space, on the wall and out of the way. It features a perforated, lockable front door and side panels, assuring generous airflow to keep equipment operating safely. The side panels are removable for easy access to equipment, and the front door is reversible. The top and bottom panels of the enclosure include convenient cable routing ports. The SRW9U ships fully assembled and comes with a 5-year warranty.

Keeps Equipment Secure and Off the Floor

The SRW9U is ideal for IT applications where floor space is limited and security is a consideration. Its locking doors and side panels offer a perfect solution for keeping limited-access devices secure and out of the way in classrooms, back offices and storage closets. Constructed with a sturdy wall-mounting bracket and steel frame, it can accommodate up to 140 lb of equipment in 9U of rack space. Adjustable vertical mounting rails with square holes accommodate all standard 19-inch rack equipment. This SmartRack enclosure meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) compliance.

Simple Equipment Installation

Rail adjustment is quick and convenient—simply unscrew the rails, slide them to the desired depth and restore the screws. Both the front and rear pairs of rails adjust in 1/4-inch increments, with numbered rack spaces for easy reference. Square mounting holes and included hardware support up to 140 lb of standard 19-inch rack equipment.

Lockable, Reversible Front Door

The swing direction of the lockable front door can be reversed by rotating the enclosure 180 degrees before installation. The front door locks to provide secure access and is perforated to promote efficient airflow.

Modular Side Panels

The SRW9U includes two lockable, removable side panels for ease of installation and service access. The side panels are perforated to allow generous airflow.

Vented Top and Bottom Panels with Cable Cutouts

The top and bottom panels of the SRW9U are furnished with vents designed to help remove warm air from the enclosure and draw in cool air by convection. They also support installation of standard user-supplied case fans. The top and bottom panels are also provided with ports for cable routing through the enclosure. Removable covers block unused cable ports.

SmartRack™ Accessories Adapt, Enhance and Expand Enclosures

The optional SRCASTER rolling caster kit adapts the enclosure to floor-standing and rollaway applications under desks, tables or counters. Additional SmartRack cooling solutions and rack accessories are available for a variety of applications: air conditioning, heat removal, airflow management, cable management, rack shelves, security & monitoring, mounting and power.

Peace of Mind

The SRW9U comes with a 5-year warranty.

Technical Specifications

• Tripp Lite SRW9U SmartRack™ Wall-Mount Rack Enclosure Cabinet
• Rack spaces: 9
• Load capacity: 140 lb.
• Mounting depth: 3 to 17 in.
• Mounting holes: Square (mounting hardware included)
• Door: Lockable/reversible/perforated
• Side panels: Lockable/removable/perforated
• Top & bottom panels: Vented
• Cable ports: Top and bottom panels (removable covers)
• Height: 19.88 in.
• Width: 23.62 in.
• Depth: 17.78 in.
• Weight: 35 lb
• Material of construction: Steel
• Warranty: 5 years
