Item#: N82E16817103080

SPARKLE R-SPI750ACAG 750W ATX12V 2.3 SLI Ready CrossFire Ready 80 PLUS GOLD Certified Active PFC Power Supply

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • ATX12V 2.3
  • 80 PLUS GOLD Certified
  • 90 - 264 V 47 - 63 Hz
  • +3.3V@30A, +5V@30A, +12V1@18A, +12V2@18A, +12V3@18A, +12V4@18A, -12V@0.5A, +5VSB@3.5A
  • ATX12V & EPS12V Power Supply
  • 110 V AC 220 V AC
  • RoHS 80 Plus Gold ErP

LOADING... LOADING...
  • Specifications
  • Warranty & Returns
  • Reviews

Learn more about the Sparkle Power Inc. R-SPI750ACAG

Model

|
Brand
SPARKLE
Model
R-SPI750ACAG
Series
Magna Gold

Details

|
Type
ATX12V 2.3
Maximum Power
750W
Fans
1
PFC
Active
Main Connector
20+4Pin
+12V Rails
4
PCI-Express Connector
2 x 6+2-Pin
SATA Power Connector
7
SLI
SLI Ready
Haswell Support
No
CrossFire
CrossFire Ready
Modular
No
Power Good Signal
Power on delay time 100 ~ 500ms, off delay 1ms minimum
Hold-up Time
17ms min.
Efficiency
87% minimum, typical up to 90%
Energy-Efficient
80 PLUS GOLD Certified
Over Voltage Protection
Yes
Overload Protection
Yes
Input Voltage
90 - 264 V
Input Frequency Range
47 - 63 Hz
Input Current
6A @ 115V, 3A @ 230V

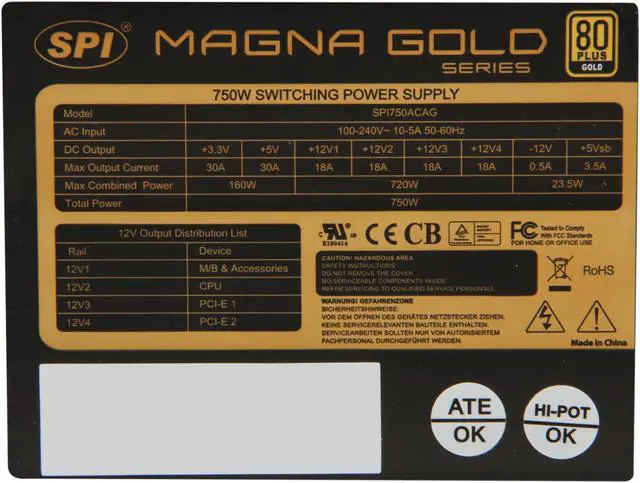

Output
+3.3V@30A, +5V@30A, +12V1@18A, +12V2@18A, +12V3@18A, +12V4@18A, -12V@0.5A, +5VSB@3.5A
MTBF
>100,000 Hours
Approvals
CUL/UL60950-1, TUV EN60950-1,CB 60950-1, FCC,EMC.
Dimensions
5.5" x 5.9" x 3.4" L x W x H
Weight
Package: 6.5 lbs.
Type
ATX12V & EPS12V Power Supply
+12V Rails
4
Efficiency
> 90%
Energy-Efficient
RoHS 80 Plus Gold ErP

Input

|
Input Voltage
110 V AC 220 V AC

Features

|

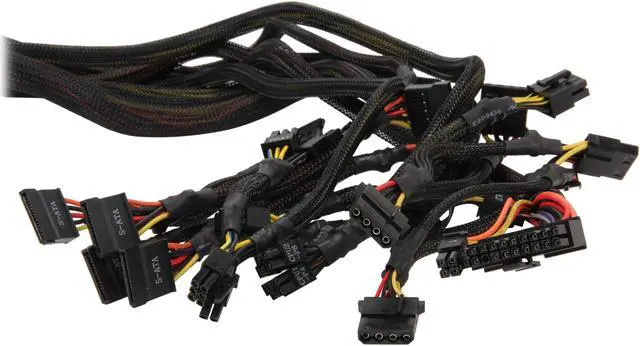

Connectors
1 x 20+4-pin Main Connector
1 x 4+4-pin CPU Connector
2 x 6+2-pin PCI-E
7 x SATA
4 x Peripheral
1 x Floppy
Features
Complied with ATX12V 2.3 standard

Active Power Factor Correction (PFC) meet EN61000-3-2

High efficiency and reliability

Compatible with European Union Directive 2002 / 95 / EC (Restriction on Hazardous Substances).

Remote ON / OFF function

Internal 12V DC fan included

Noise Killer (thermal fan speed control function)

Low noise and ripple

Output over voltage, short circuit, and over current protection

100% Hi-pot, ATE, and burn-in tested

Re-settable power shut down

Complies with FCC part 15 subpart J class B 115Vac operation, and CISPR 22 class B at 230Vac operation
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
  • Read full details
  • Return Policies
    • Return for refund within: 30 days
    • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Standard Return Policy.
