Item#: N82E16817103940

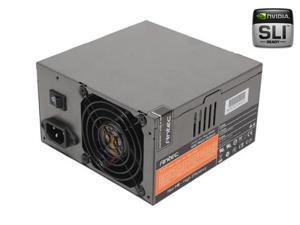

Antec Neo Power 500 500W ATX12V SLI CrossFire Modular Active PFC Power Supply

  • ATX12V
  • Modular
  • 100Vac to 240Vac +/- 10% 47 - 63 Hz
  • +3.3V@23A, +5V@17A, +12V1@17A, +12V2@17A, +12V3@17A, -12V@0.8A, +5VSB@2.5A
ICON Loading...

Neo HE combines the most desired features in PC power supplies with unprecedented efficiency in design. The Antec NeoHE 500 power supply's energy-efficient operation reduces power consumption by up to 20% compared with traditional power supplies, saving you money. It also generates less heat, and enables cooling with a smaller, slower, quieter fan. Active PFC circuitry further reduces impact on the power infrastructure. The result is cooler, quieter, and more environmentally friendly power.

The Antec NeoHE 500’s Universal Input capability, ATX12V v2.2 and EPS12V compliancy, and backward compatibility with all ATX12V systems enable you to use it in a variety of situations, and almost everywhere, without worrying about input voltages. Dedicated Power Circuitry, industrial grade protection circuitry, and Active PFC deliver safe, reliable output. Your new power supply is meant to be long-lasting, with an MTBF of 80,000+ hours.

The presence of one Main connector (20 + 4 pin), one 12V (P4), six peripherals, four SATA, one Floppy, and two PCI-E connectors are more than enough for all your components. Three +12V output circuits provide maximum stable power for the CPU independently of the other peripherals. This PSU is also ready to run SLI-enabled systems with no diminution in quality or reliability. Bring new power to your system with this remarkable supply!

  • newegg ATX12V v2.2 and EPS12V Compatible Compatible with the ATX12V v2.2 and EPS12V standards, the Antec NeoHE provides maximum power stability to drive the latest Intel and AMD processors as well as other components for desktop and entry-level sever computer systems. Its special 4+4 pin +12V connector ensures multi-standard compatibility.
  • newegg 500W Maximum Power A maximum power of 500W delivers safe, reliable output for high-end computer systems.
  • newegg Highly Efficient Providing up to 85% power efficiency, the Antec NeoHE power supply saves energy and may even reduce your electric bill!
  • newegg Advanced Cable Management System Antec's Advanced Cable Management System allows use of only the cables you need resulting in improved internal airflow and reduced system clutter.
  • newegg Quiet Operation A low-speed 80mm fan delivers whisper-quiet cooling and ensures quiet operation through fan speed adjustments in response to load conditions.
  • newegg NVIDIA SLI Certified The Antec NeoHE power supply has gone through a series of rigorous NVIDIA SLI certification tests for maximum system stability when building NVIDIA SLI PCs.

Learn more about the Antec Neo Power 500

Model

Brand
Antec
Model
Neo Power 500

Spec

Type
ATX12V
Maximum Power
500W
Fans
1
PFC
Active
Main Connector
20+4Pin
+12V Rails
3
PCI-Express Connector
2 x 6-Pin
SLI
SLI Certified
CrossFire
CrossFire Ready
Modular
Modular
Power Good Signal
100-500ms
Hold-up Time
20ms at full load
Efficiency
Up to 85%
115V - Full load 76%; Typical load 82%, Light load 77.9%
230V - Full load 80%; Typical load 85%, Light load 79.45%
Over Voltage Protection
+5V trip point < +6.5V
+3.3V trip point < +4.1V
+12V trip point < +14.3V
Input Voltage
100Vac to 240Vac +/- 10%
Input Frequency Range
47 - 63 Hz
Input Current
9A @ 115V, 4.5A @ 230V
Output
+3.3V@23A, +5V@17A, +12V1@17A, +12V2@17A, +12V3@17A, -12V@0.8A, +5VSB@2.5A
MTBF
>80,000 Hours
Approvals
UL, CUL, TUV, CE, FCC, CCC, CB, C-tick

Features

Connectors
1 x Main connector (20+4 pin)
1 x 12V (P4)
6 x peripheral
4 x SATA
1 x Floppy
2 x PCI-E
Features
Highly efficient (upto 85%), one super-silent 80mm fan keeps Neo HE cool; less than 18dBA noise level.
Advanced Cable Management System improves internal airflow and reduces system clutter by allowing you to use only the cables you need.
Universal Input with Active PFC: Use anywhere in the world without worrying about input voltages; Active PFC improves voltage stability and delivers environmentally-friendlier power.
Dedicated Power Circuitry: Delivers safer, more reliable output to your system’s delicate components. Includes dedicated voltage outputs, triple +12V output circuits, voltage feedback circuitry, and tighter ±3% regulation for improved system stability.
ATX12V v2.2 and EPS12V compliant; backward compatible with all ATX12V systems.
Three +12V output circuits provide maximum stable power for the CPU independently of the other peripherals.
Accurate power rating allows Neo HE to deliver its full rated power, 24 hours a day rated at 50ºC.
Low-speed 80mm fan delivers whisper-quiet cooling and ensures quiet operation by varying fan speed in response to load and conditions.
SATA connectors for your Serial ATA drives.
Industrial grade protection circuitry prevents damage resulting from short circuits (SCP), under voltage protection (UVP), power overloads (OPP), excessive current (OCP) and excessive voltages (OVP).

Manufacturer Warranty

Parts
5 years limited
Labor
5 years limited

Quick Info

Warranty

  • Limited Warranty period (parts): 5 years
  • Limited Warranty period (labor): 5 years


Customer Reviews of the Antec Neo Power 500

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Christopher B.
  • 7/20/2010 6:31:33 PM
  • Tech Level: Somewhat High
  • Ownership: less than 1 day
  • Verified Owner

4 out of 5 eggsSeems to work!

Pros: Works! Powered my old dinosaur right up. Best thing you can ask for in a new piece of equipment is that it does what it's supposed to, right?

Cons: Loud? Much louder than my old PSU anyway. There's several words in the product description about this being a quiet unit but... The variable speed they mention seems to be either low, which is indeed very quiet but it didn't spend much time there, or max, which is like a tornado on my desk. They tout the small fan, but honestly, all my experience with fans tells me smaller is louder per air pushed?

Did you find this review helpful? Yes No

  • Anonymous
  • 7/10/2010 7:08:33 PM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsSolid PSU

Pros: This is a solid PSU. It actually is capable of pushing out more power than it is rated for.

Cons: None so far.

Other Thoughts: This PSU actually has 4-pin(P4) AND 8-pin(EPS) 12V connectors. It's not listed in the specs, and led to some confusion after my order had been placed. So rest assured, this has all the connectors you will need.

Did you find this review helpful? Yes No

  • stephen C.
  • 3/22/2009 12:00:45 PM
  • Tech Level: Average
  • Ownership: less than 1 day
  • Verified Owner

1 out of 5 eggs

Pros: What a dog.

Cons: DOA

Other Thoughts: Hopefully the replacement will work

Did you find this review helpful? Yes No

  • Anonymous
  • 3/13/2009 9:56:34 AM
  • Tech Level: Somewhat High
  • Ownership: less than 1 day
  • Verified Owner

1 out of 5 eggsdead on arrival

Pros: Looks like it would be nice-- but unfortunately can't power my PC on looks!

Cons: Didn't work at all. Wouldn't even power the case fans.

Did you find this review helpful? Yes No

  • brandon j.
  • 3/9/2009 8:32:06 PM
  • Tech Level: Somewhat High
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggsAlmost 3 years old now...

Pros: almost 3 years and not a problem out of this supply... ive had MB's and case fans come and go but this thing has remained quiet and rock solid. Will see soon how it handles newer processors as im slowly replacing parts atm and will go for a 3x or 4x proc.

Cons: none

Did you find this review helpful? Yes No

  • Paul G.
  • 2/24/2009 2:42:04 PM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsAntec Neo Power 500

Pros: Seems to be overkill for me so far. I am running 1 hd, 1 dvd burner, 3 case fans, a Geforce 8500, and a Pentium D without fail

Cons: None

Other Thoughts: Very Happy so far

Did you find this review helpful? Yes No

  • Orest C.
  • 2/17/2009 7:25:25 PM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week

5 out of 5 eggsGreat psu

Pros: Great 3 Rails runs my computer flawlessly

Cons: None

Other Thoughts: Great for the price. Deffinite buy

Did you find this review helpful? Yes No

  • John C.
  • 2/17/2009 2:01:04 PM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsGreat PSU

Pros: Stable 12v Rails, very quiet. Modular is great for wiring.

Cons: A little pricey for a 500w at normal price, got this in a case combo with an antec 300, for nearly half price.

Other Thoughts: Great power supply, it powers up a big quad core office computer and several drives. No problems so far.

Did you find this review helpful? Yes No

  • Charlie F.
  • 2/8/2009 2:40:02 PM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsWorks for me

Pros: I like the modular design, and with the mobo / case I chose, it came in handy. I also got money off on a combo deal.

Cons: none

Other Thoughts: - EVGA 132-BL-E758-A1 LGA 1366 Intel X58 ATX Intel Motherboard
- Intel Core i7 920 Nehalem 2.66GHz LGA 1366 130W Quad-Core Processor Model BX80601920
- G.SKILL 6GB (3 x 2GB) 240-Pin DDR3 SDRAM DDR3 1333 (PC3 10666) Triple Channel Kit Desktop Memory Model F3-10666CL9T-6GBNQ
- Western Digital Caviar Black WD1001FALS 1TB 7200 RPM SATA 3.0Gb/s Hard Drive
- SAPPHIRE 100236L Radeon HD 3650 512MB 128-bit GDDR2 PCI Express 2.0 x16 HDCP Ready CrossFire Supported Video Card
- Antec Nine Hundred Black Steel ATX Mid Tower Computer Case
- Antec Neo Power 500 500W ATX12V SLI Certified CrossFire Ready Modular Active PFC Power Supply
- Nippon Labs ICR-BB All-in-one USB +eSATA Card Reader

Did you find this review helpful? Yes No

  • seiko h.
  • 1/25/2009 2:02:17 PM
  • Tech Level: Average
  • Ownership: 1 month to 1 year
  • Verified Owner

1 out of 5 eggs

Pros: Modular design

Cons: Price, quality, Warranty department is a nightmare.
It worked for 3 solid months then suddenly started restarting my computer in games.
A replacement power supply from a different company works like a charm how ever.
Because of this my previous review of 5 eggs is replaced with this review of 1 egg

Other Thoughts: I wrote a previous review praising this unit. After not having 3 of my 4 calls placed to Antec's warranty department not being returned even after leaving detailed messages I have lost my patience. I have yet to be issued a ticket id or a rma# from Antec. I will not reccommend any of their products to anyone nor will I ever buy one of their low quality products again.

2 out of 2 people found this review helpful. Did you? Yes No
