FSP Group AX500-PN Max: 450W Peak: 500W ATX2.2 Power Supply

  • ATX2.2
  • 100 - 120 V/ 200 - 240 V
ICON Loading...

Keep your system going with FSP's 500W Max OEM power supply. This is a great choice for upgrading an older system if you want to keep your old case. Filled with new technology, it's designed to keep you powered up into the future. The greater than 70% efficiency and 1W standby mode will help save you money on your electric bills.

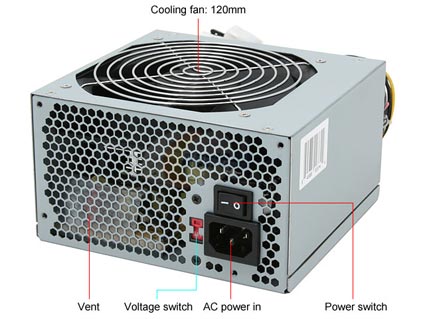

The back of the housing is a hexagonal mesh to maximize airflow from the 120mm fan. The large openwork will also minimize air noise caused by the fan. Advanced thermal monitoring circuitry keeps the PSU regulated for efficient performance.

It comes with the standard connectors, power, CPU, floppy and Molex. It also has 2 SATA connections so you can use today's high speed drives. Dual +12V power rails ensure a balanced power output. A 6 pin PCIe connector feeds extra power to your video card.

  • newegg ATX12V v2.2 Compatible Compatible with the ATX12V v2.2 standard, the FSP Group AX500-PN power supply provides maximum power stability to drive the latest Intel and AMD processors as well as other system components.
  • newegg 500W Maximum Power A maximum power of 500W delivers safe, reliable output for mainstream computer systems.
  • newegg Efficient Cooling A 120mm riffle bearing fan plus hexagon cutouts increases overall airflow in the power supply enclosure and helps remove heat from the chassis simultaneously.

Learn more about the FSP Group (Fortron Source) AX500-PN

Model

Brand
FSP Group
Model
AX500-PN

Spec

Type
ATX2.2
Maximum Power
Max: 450W Peak: 500W
Fans
1 x 120mm Riffle.bearing Fan
PFC
No
Main Connector
20+4Pin
+12V Rails
2
PCI-Express Connector
1 x 6-Pin
SLI
No
CrossFire
No
Modular
No
Efficiency
> 70%
Overload Protection
Yes
Input Voltage
100 - 120 V / 200 - 240 V
Input Frequency Range
50/60 Hz
Input Current
10/5A
Output
+3.3V@22A, +5V@15A, +12V1@18A, +12V2@18A,
-12V@0.3A, +5VSB@2.5A
MTBF
100K hours at 25°C
Approvals
UL, CSA, VDE, NEMKO, TUV, CE, CB, FCC

Features

Connectors
1 x Main connector (20+4Pin)
1 x 12V(4Pin)
6 x peripheral
2 x SATA
2 x Floppy
1 x PCI-E
Features
High efficiency
Energy saver | 1.watt standby mode
Advanced thermal control sensor
Mesh.wire cable management
Low ripple | low operating noise
Humidity: 10-90% non.condensing
OCP: over current output protection
SCP: short circuit output protection
100% Hi.pot tested

Manufacturer Warranty

Parts
3 years limited
Labor
3 years limited

Quick Info

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years


Customer Reviews of the FSP Group (Fortron Source) AX500-PN

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Richard B.
  • 6/9/2009 4:52:33 PM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsThe Best

Pros: Good amperage on 12V rails. Does the job. Why pay more. Very quiet.

Cons: None.

Did you find this review helpful? Yes No

  • Victor H.
  • 12/25/2008 8:44:32 AM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsAX-500

Pros: FSP quality name,solid reputation
good price

Cons: cables not sleeved but not an issue for me since you can't see them.Just use some ties.

Other Thoughts: This is a great power supply for a single gpu setup.
E8400 4gig ocz pc8500,p5q,8800gt,250hd,Centurian case.

Did you find this review helpful? Yes No

  • Kyung B.
  • 12/11/2008 2:40:36 AM
  • Tech Level: High
  • Ownership: 1 day to 1 week

4 out of 5 eggsSolid dependable power supply without the bells and whistles

Pros: Solid rails. Combined 12v rail of 30A. I bought this for very cheap when I shopped around. Almost free reallly.... Nearly 80% efficiency. quiet.

Cons: No PFC, No 80% certification, not really silent. Not really a 500 watt power supply but 450watt. It does not have combined 12v rail of 36A for those who are confused.

Other Thoughts: My Antec SP 2.0 power supply that came with Sonata 2 case just died after 2.5 years. They were prone for death. This new power supply is a tiny bit louder than the Antec although the Antec was nearly silent. FSP tends to over do the fan speeds on their power supply. Easily fixable if you are techie.

FSP are very huge OEM suppliers and sell their power supplies OCZ, Antec, and few others. Their quality have been declining recently but this is the older model based on AX500 bluestorm 1 which they remade. Blue storm 2 is good as well. The newer Epsilon's and Everest models fail many tests while these older models do not.

1 out of 1 people found this review helpful. Did you? Yes No

  • Talgat S.
  • 10/16/2008 1:37:53 PM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsFSP Power Supply

Pros: Upgraded from No-Name 350W PSU. This Power Supply is quiter, has long enough cables and 6pin VGA cable for my future Video card.

Cons: none, hopefully

Other Thoughts: I dont know but it seems FSP ugraded this model from 2 SATA to 4 SATA plugs. Good for Future Hard Drive upgrades

Did you find this review helpful? Yes No

  • Jeremy H.
  • 7/14/2008 1:39:19 PM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggs

Pros: Great Psu and extremely quiet and moderately priced.
Very nice solid psu.

Cons: only two Sata connectors.

Other Thoughts: as stted before..it's a 450 watt power supply with 500 watt peak capacity.

Did you find this review helpful? Yes No

  • Jason C.
  • 2/25/2008 8:39:43 PM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsFortron Source does it again!

Pros: This power supply is an excellent choice in the mid range power supply market. It's not flashy but has solid rails regardless of what is thrown at it. Includes a 120mm bottom mounted fan that is not silent, but very very quiet and keeps it quite cool. The fortron source name is renowned for reliability and this power supply I'm certain will be no exception.

Cons: Only 1 pci-e power plug (no biggie for me).

Other Thoughts: An all around good price for an all around good power supply. Can't go wrong here folks!

Did you find this review helpful? Yes No

  • Eric G.
  • 10/11/2007 4:32:06 PM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

4 out of 5 eggsStable Power @ Affordable Price

Pros: Modestly priced. Appears to handle power demands well and is reasonable quiet.

Cons: Not enough SATA connections

Other Thoughts: Replaced psu in new HP A6050E because one that came with machine couldn't handle upgrade of graphics card from GeForce7500LE to HP nVidia Quadro FX 1500. HP claims they don't make one that would fit, this model fit like it was made for the machine and has been running 24/7 for the past three weeks without any problems.

1 out of 1 people found this review helpful. Did you? Yes No

  • Anonymous
  • 10/9/2007 2:46:28 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggs

Pros: Works Great. High Amperage 12V rails.

Cons: NONE

Other Thoughts: I don't know why more people don't buy these things. I've used 2 of them so far in builds for friends and they work great. The power is great and the price is awesome.

2 out of 2 people found this review helpful. Did you? Yes No

  • Macka C.
  • 10/9/2007 11:43:52 AM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsSurprising...

Pros: Wow! I got to tell you I seriously have never heard a power supply that was this quiet. If my monitor is in sleep mode I honestly can't tell if my computer is on now.

Otherwise this thing is rock solid with an Asus m2n-e mobo and an x1950 Pro 512 MB vid card.

Cons: I doubt it would handle a Crossfire/SLI setup. A non-issue for me though.

Other Thoughts: I can hear the small ambient sounds in video games now lol.

1 out of 2 people found this review helpful. Did you? Yes No

  • David W.
  • 8/21/2007 2:03:28 AM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsGets the job done

Pros: Does everything I need it to.

Cons: None.

Other Thoughts: I bought a EVGA 8800GTS graphics card and needed more power than my current PSU had and this was the cheapest and best PSU I could find. Works great with the card and everything is working fine.

Did you find this review helpful? Yes No
