Item#: N82E16817104142

FSP Group AURUM PRO 1200W (AU-1200PRO) ATX12V2.92 SLI Certified 80 PLUS GOLD Certified Single 12V Rail CrossFire Ready Modular Power Supply 4th Gen CPU Haswell Ready

Sold and Shipped by Newegg

  • ATX12V / EPS12V

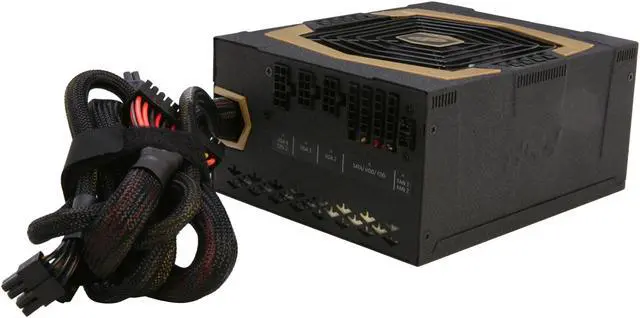

  • Modular
  • 80 PLUS GOLD Certified
  • 115V AC to 230V AC 47 - 63 Hz
  • 25A @ +3.3V DC 25A @ +5V DC 100A @ +12V DC 0.8A @ -12V DC 3.0A @ +5Vsb DC Standby

ICON Loading...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

Uncompromising Performance with High Wattage

AURUM PRO series is designed to meet the needs of PC enthusiasts such as overclockers/multi-GPU gamers. It is also the perfect choice for professional workstation. Built with industrial-grade components and Japanese capacitor, AURUM PRO provides clean, stable and powerful output to ultimately fulfill your system.

AURUM PRO’s sleek design and unique rugged Granite touch finishing makes it truly regal PSU like no others. With 80PLUS GOLD certification it provides high efficiency, makes AURUM PRO Series a perfect combination of premium quality and performance.



  • True Single +12V output circuits
  • Maximum 100A Output
  • High efficiency > 90%, meets 80 PLUSR GOLD Certification
  • Use Japanese capacitor : Industrial Grade Component
  • Complies with ATX 12V 2.3 & EPS 12V 2.92 version
  • 2 x external fan connectors ready
  • 6+2pin PCI-Express graphic card connector ready
  • Dual-OTP (Over Temperature Protection)

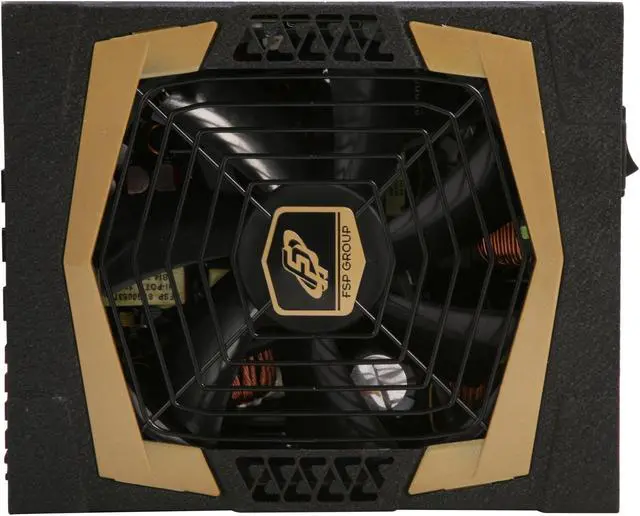

  • Quiet , long lasting 135mm HDB (Hydro dynamic Bearing) Fan
  • Complete Protections: OCP (+-100A), OVP, SCP, OPP, OTP, UVP
  • Multiple Safety Approved: OCP, CE, FCC, CB, UL, TUV, GOST, CCC

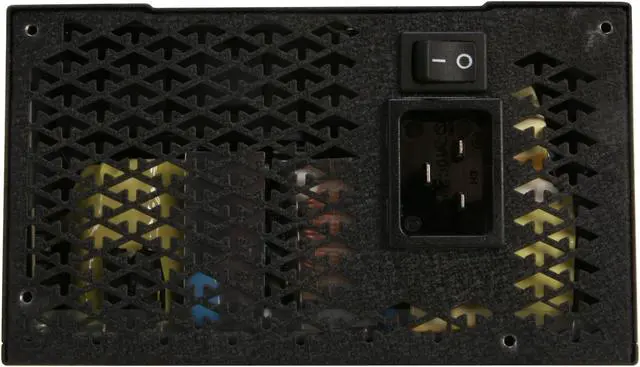

Unique Airflow Technology

Arrow-shaped ventilation to provide remarkable air ventilation and superior cooling performance.

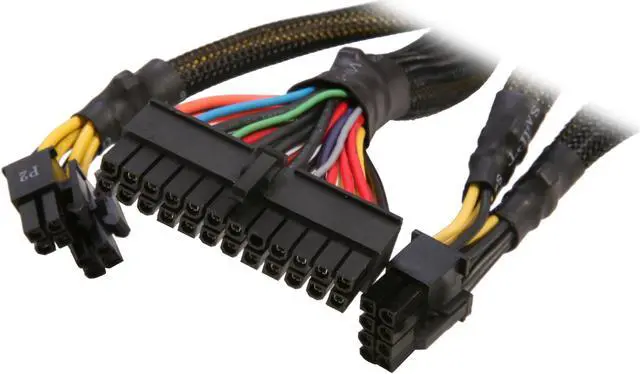

Flat Cabling System-Optimize

1) 60cm EPS12v 8P+4P, good wiring for case
2) High extension with rich cable combination
3) Special flat cable, optimized the air flow


Dual Transformer Matrix

FSP’s own patented designs to provide Ultimate Performance & Highest Protection to your system!

1) Dual Transformer Matrix Design minimizes energy loss, and maximizes efficiency and cooling.

2) Evenly distributed load current sharing and output power sharing allow balanced utilization and heat dissipation.

3) Reduced transformer sizes, and increased power density to optimize air flow and cooling.

FM Series

Unique Airflow Technology

FM Series

Fully compatible with 4th generation Intel Core Series processors

FM Series

Low Profile Flat Cabling system-optimize airflow

FM Series

Quiet and durable cooling

FM Series

105 °C Japanese-made Capacitor

FM Series

Active PFC

FM Series

Multiple Safeties & Protections Approved

AU-1200PRO AU-1200PRO
Current Info
Model No. AU-1200
AC Input 110-240Vac ~ 15-9A  50-60Hz
DC Output +3.3V +5V +12V -12V +5Vsb
Max. Output Current 25A 25A 100A 0.8A 3.0A
Max. Combined Power 160W 1200W 24.6W
Total Power 1200W
Connectors ATX 20+4Pin 4+4 Pin 8 Pin PCI-E SATA Molex Floppy Fan
1 1 1 8 10 6 1 2
Length (mm) 550 650 650 650 155 155 155 150
AU-1200PRO AU-1200PRO AU-1200PRO AU-1200PRO
AU-1200PRO AU-1200PRO AU-1200PRO AU-1200PRO
Hardware Secrets
  This Product
AU-1200PRO AU-1200PRO AU-1200PRO AU-1200PRO
Model AU-850PRO AU-1000PRO AU-1200PRO
Active PFC V V V
Input Voltage 100V-240V 100V-240V 110V-240V
Input Current 7A 8A 9A
Input Frequency 50-60Hz 50-60Hz 50-60Hz
Modularity Semi-Modular Semi-Modular Semi-Modular
Japanese Capacitor V V V
Fan Type 135mm FDB 135mm FDB 135mm FDB
Weight 3.48kg 3.56kg 3.53kg
Dimension(LxWxH) mm 150 x 180 x 86 150 x 180 x 86 150 x 180 x 86
Protection OVP, OCP, OPP,
80 Plus Certified Gold Gold Gold
Efficiency Rate 90% 90% 90%
MTBF 100,000Hrs 100,000Hrs 100,000Hrs
ATX 24pin 1 1 1
EPS 4+4pin 1 1 1
EPS 8pin 1 1 1
PCI-E(6+2pin) 8 8 8
SATA 10 10 10
Molex 6 6 6
Floppy 1 1 1
Fan Connector 2 2 2
  • newegg Dual Transformer Matrix Design True Single Rail Dual Transformer Matrix Design minimizes energy loss, and maximizes efficiency and cooling. The FSP Group AURUM PRO also features reduced transformer size sand increased power density for optimum air flow and cooling. And the evenly distributed load current sharing and output power sharing allow balanced utilization and heat dissipation. Powerful single +12V rail at up to 100A design ensures the maximum provision of 12V power to energy-hungry CPU and VGA card perfect for future high-end component upgrades or overclocking.
  • newegg 80 PLUS Gold Certified The 80 PLUS Gold certified power supply provides high power efficiency of at least 87% at any load between 20% and 100%, saving your money on your electrical bill, reducing heat in your computer's system and prolonging its life.
  • newegg Designed for superb cooling performance Arrow-shaped ventilation makes use of Aero Dynamics and Physical properties of hot air to improve and speed up hot air extraction. The Low Profile Flat Cabling System optimizes airflow and neatness in chassis. In addition of the 135mm HDB (Hydro Dynamic Bearing) fan, AURUM PRO is able to achieve state of equilibrium between acoustic, cooling and life span.
  • newegg SLI ready This power supply comes with 8x 6+2 pin PCI Express connectors and has gone through a series of rigorous certification tests for maximum system stability when building SLI systems.
  • newegg Hybrid Synergy 12V Rail Design Hybrid Synergy Design on 12V rails with max loads pledges compatibility to graphics cards and systems.
  • newegg 105 ºC Japanese-Made Capacitor High quality 105°C Japanese capacitors on the AURUM Series ensure uncompromised performance, reliability and lifespan. Full safety approvals include OCP, OVP, SCP, OPP, OTP and UVP for the ultimate peace of mind.

Learn more about the FSP Group AU-1200PRO

Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 5 years
  • Limited Warranty period (labor): 5 years
  • Read full details

Customer Reviews of the FSP Group AU-1200PRO

Do you own this product? Write a Review

ICON Loading...

Filter Results

  • Leif P.
  • 1/17/2016 2:12:43 PM
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsSolid unit, noted drawbacks

Pros: I'm not using anywhere near the potential of this unit presently. I bought it because it would power two AMD cards in CrossFire+OCing on rest of system, and the price was right at the time vs. e.g. eVGA SuperNova. I sort of liked the way the built-in ATXes worked but I could see how others don't like how they fold. The modulars are fairly big, very sturdy and lots of room for daisy chaining (but they are bulky to fold up and run as a result). The unit itself is nice and heavy, was a bit tight to get in due to the way my case was built, but it worked fine. The external power cord is a beast to get in to the unit as compared to any other PSU I've used; you could call that a pro or a con. Overall I won't be worrying about this part of my system, although if I had gone NVIDIA I might have gone with a less capable PSU just due to the unavoidable weight associated with quality PSU of this sizing.

Cons: FSP rebate postmarking really too aggressive (20 days??). Would have wished for more fan connectors, had to get an aftermarket fan connector after filling up all the included on PSU and mobo.

Other Thoughts: Would recommend.
If priced comparably to other high-end using including AURUM PT, would go with others based on Internet technical reviews, but for me this was a good bang for buck purchase. High quality + all the safety protections which is what I really cared about.

Did you find this review helpful? Yes No

  • Ja'Won B.
  • 11/17/2014 3:45:37 PM
  • Ownership: more than 1 year
  • Verified Owner

2 out of 5 eggsLasted longer, but lack of service

Pros: This PSU performed great for a while. It was a better replacement from the previous one I purchased. Nice, quiet and performed the way it needed too....

Cons: A couple of days ago, didn't draw any power at all for my desktop until today. Sorely disappointed not only in its random performance issues, but lack of quality of service from the brand of this PSU. A year ago, I was able to get in touch with a rep before. Now, all I get is a answer machine. Definitely will need to check out other brands of PSUs.

Did you find this review helpful? Yes No

  • Ja'Won B.
  • 7/2/2013 7:04:13 AM
  • Ownership: 1 month to 1 year
  • Verified Owner

3 out of 5 eggsDecent for a while

Pros: This PSU is a champ! Definitely was a better replacement for the previous one I purchased. Nice and quiet and performs the way it needs too.

Cons: Only had it for 3 months and in my area recently experience some thunderstorms. Power surges attacked it several times and now gives my PC a hard time powering on. Used my PSU tester on it and sometimes it shows RED and sometimes it shows BLUE. Possibly could be failing so I will look into replacing it to be on the safe side.

1 out of 3 people found this review helpful. Did you? Yes No
