Currently Unavailable
-
-
Similar Items
Not the product you're looking for? We can make some suggestions to help you decide on a product that fits your needs.
view similar products
-
Manufacturer Contact Info
Return Policies
This item is covered by Newegg.com's Standard Return Policy.
- Return for refund within: 30 days
- Return for replacement within: 30 days
- Restocking Fee: Yes
|
-
- 5
-
- 43%
- 4
-
- 43%
- 3
-
- 14%
- 2
-
- 0%
- 1
-
- 0%
| Product Rating: |

|
| Total Reviews: |
7 |
Great
- Pros: Well its 800 watts of power, and in the year of owning it there has not been a single hiccup. It has enough amp's to power two BFG GTX 260's, Q9550, Cooler Master V8, two hard drives, one dvd drive, and 5 fans.
- Cons: The only down side is the length of the cables. When you install this into a computer that has the power supply on the bottom and you try and route the cables behind the motherboard back panel your going to notice that the wires are a tad bit short, and that only some of the cables will actually make it to where you need them i.e. the 8 pin connector; its to short to behind the motherboard tray in my case and I own a nzxt case so you would think they would make them to go with their cases.
- Other Thoughts: Other then the length of the cables this power supply is a solid build and can preform under load. If your looking for a really good power supply with the amp's to support SLI/ Crossfire then this is the one.
- Pros: What can I say, it fits all my needs and is cheap.
- Cons: Wires are huge, but at the same time short. CPU power cable barley reaches and I still have to add 2 more PCI connections to put in.
- Other Thoughts: I'd look around more before purchasing this PSU.
no sli over 8800gt :(
- Pros: cable covering is nice
not real flashy
2 fans
- Cons: can't do sli with with my 9800gtx if i ever wanted to buy another because theres not enough amps on the 12v rails
get a big single rail for that or just go to the nvidia website and find one
- Other Thoughts: i actually have no problems with it for my current set up
| Model |
| Brand |
NZXT |
| Model |
PP800 |
| Series |
Performance Power |
| Spec |
| Type |
ATX 12V 2.2V |
| Maximum Power |
800W |
| Fans |
120mm Fan @ 1900 RPM |

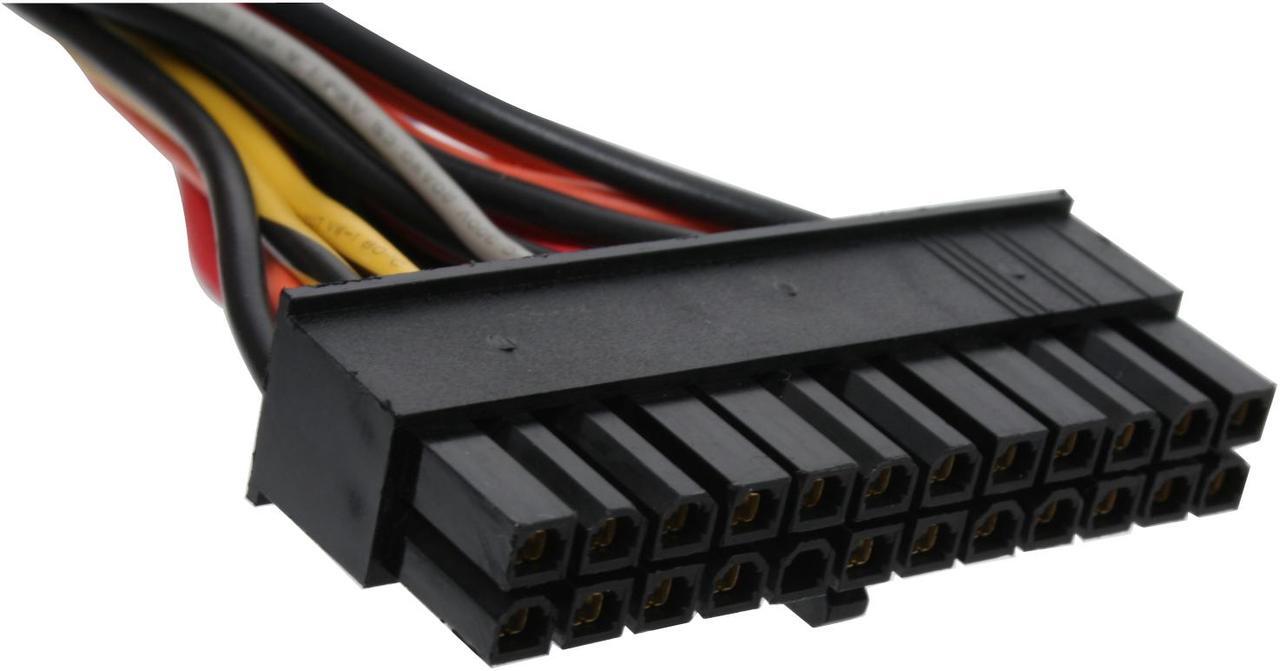

| Main Connector |
20+4Pin |
| +12V Rails |
4 |
| PCI-Express Connector |
2 x 6-Pin, 2 x 6+2-Pin |
| SATA Power Connector |
6 |
| SLI |
Ready |
| CrossFire |
Ready |
| Power Good Signal |
100-500ms |
| Hold-up Time |
16ms min. |
| Efficiency |
Up to 85 % |
| Over Voltage Protection |
Yes |
| Overload Protection |
Yes |
| Input Voltage |
115/ 230 V |
| Input Frequency Range |
50/60 Hz |
| Input Current |
14.5/ 7A |

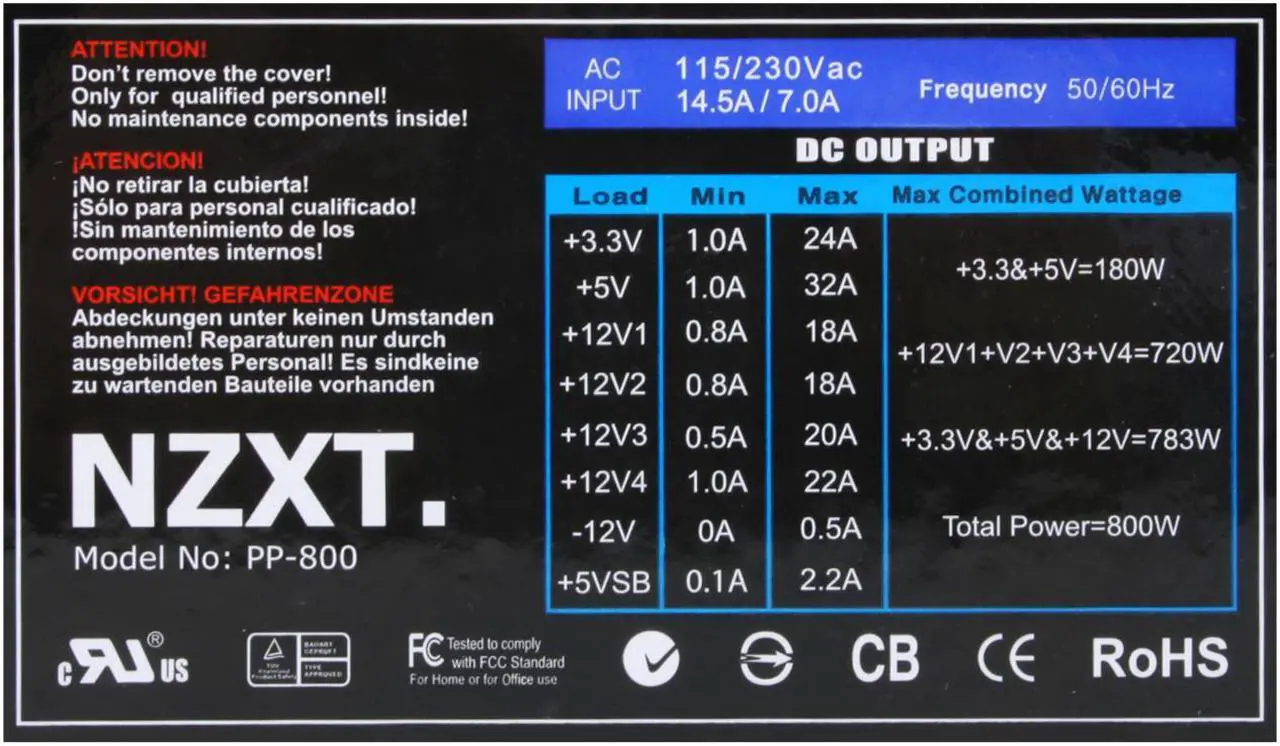

| Output |
+3.3V@24A,+5V@32A,+12V1@18A,+12V2@18A,+12V3@20A,+ 12V4@22A,-12V@0.5A,+5VSB@2.2A |
| MTBF |
>100,000 Hours |
| Approvals |
CB, CE, FCC, TUV, cUL, RoHS |
| Features |

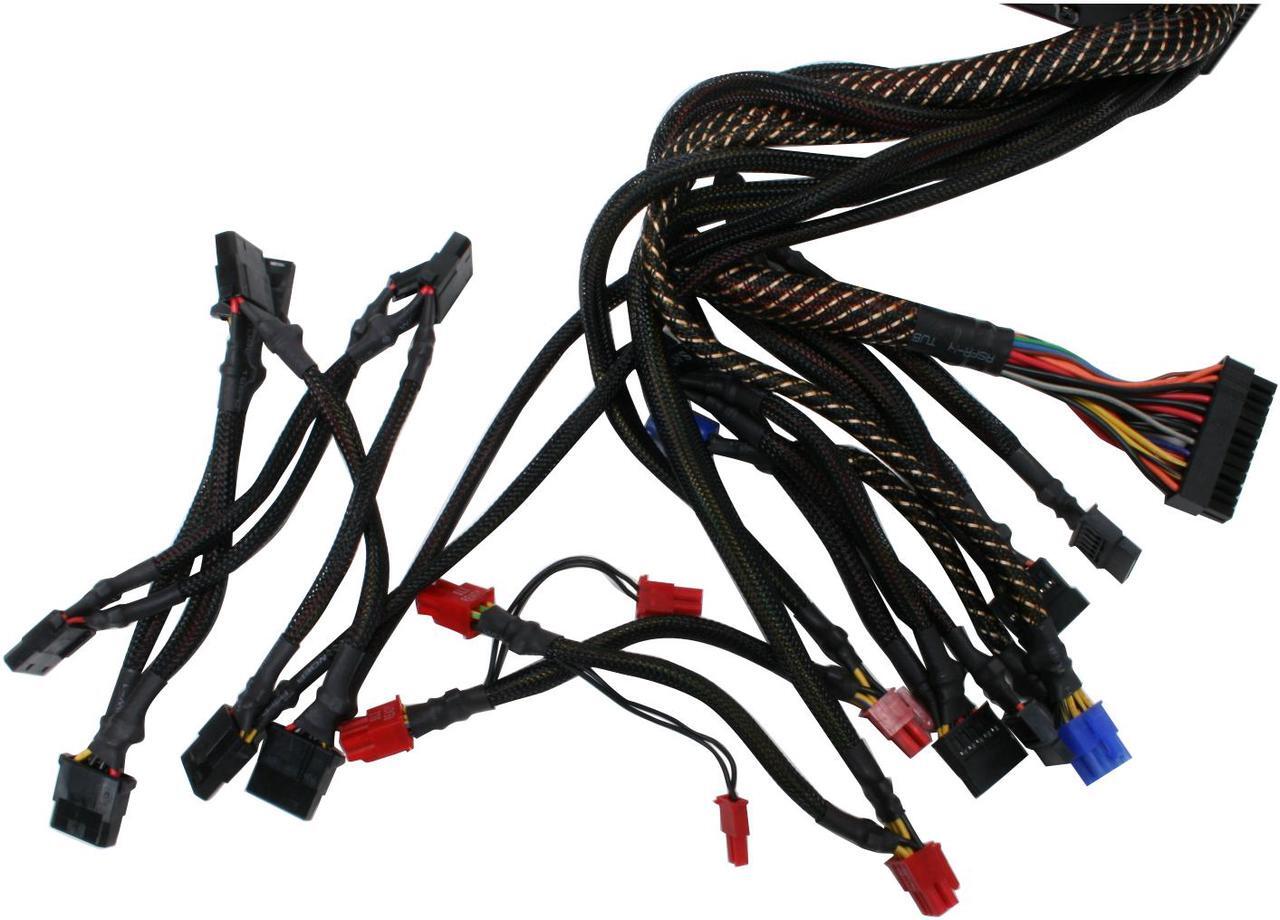

| Connectors |
1 x Main connector (20+4Pin)
1 x 12V(4/8Pin)
8 x peripheral
6 x SATA
1 x Floppy
4 x PCI-E |
| Features |
Complying with Intel ATX / BTX Standard
Gold-Coated Connectors
Output Over / Under / Short / Overload Protection
78% Efficiency at load
Smooth black matte finish
Industry Standard ATX V2.91
Low Noise 80mm and 120mm Fan
Four +12V Rails
PCI-E 6/8pin, SATA, EPS12V Ready
SLI and Crossfire Ready including support for NVIDIA 8800GTX and ATI 2900HD |
|
|
Reviewed By: Cool_clint_15 on 9/8/2009
Tech Level: somewhat high - Ownership: more than 1 year
