Model

Brand

NZXT

Model

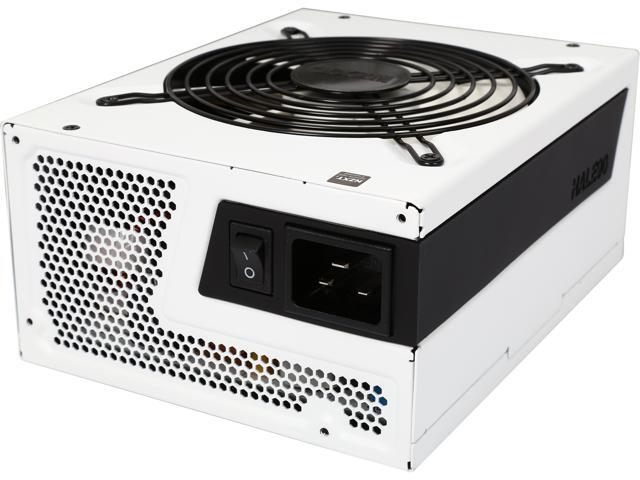

NP-1GM-1000A-NE

Series

HALE90 V2

Details

Type

ATX12V / EPS12V

Maximum Power

1000W

Fans

1

PFC

Active@0.99(Typically)

Main Connector

20+4Pin

+12V Rails

Single

PCI-Express Connector

6 x 6+2-Pin

SATA Power Connector

12

SLI

SLI Ready

Haswell Support

Yes

CrossFire

CrossFire Ready

Modular

Full Modular

Energy-Efficient

80 PLUS GOLD Certified

Over Voltage Protection

Yes

Input Voltage

100 - 240 V

Input Frequency Range

47 - 63 Hz

Input Current

14 - 7 A

Output

+3.3V@30A, +5V@30A, +12V@83A, -12V@0.8A, +5VSB@4A

Approvals

UL / cUL / CB / TUV / CE / FCC / CCC / GOST-R / C-tick

Dimensions

7.48" x 5.91" x 3.39"

Features

Connectors

1 x MB Connector (20+4 pins)
2 x CPU connector (4+4 pins)
6 x PCI-e Connector (6+2 pins)
12 x SATA (15 pins)
2 x Floppy (4 pins)
14 x Peripheral (4 pins)

Features

80 Plus Gold Certification ensures efficiency levels up to 90%

Completely modular design with labeled back plate for easy installation and clean look

NZXT design element infused on the exterior/interior power supply with world's first Innovative white and black PCB design for better isolation and identification

Multiple Intelligence Ability Controller:MIA ICTM is designed for ultimate performance, ecofriendly, and improving lACDC power conversion

IFCT:The intelligent fan control technology is designed for better thermal solution

Powerful +5Vsb that supports motherboards with fast USB charging that can also power USB devices while PC is on standby

High quality Japanese Capacitor to promote longer lifespan and better reliability

Strong single +12V rail that provides stability and ease of use with the ability to deliver clean currents under a heavy load

SLI and CrossFire Ready

135mm Dual ballbearing fan for smooth, silent rotation, and optimal air intake

Auto Range:AC main is from 90V to 264V and no need in tiny select switch.

Active PFC

Full protections for over voltage, current, power, temperature, under voltage, and short circuit protection
