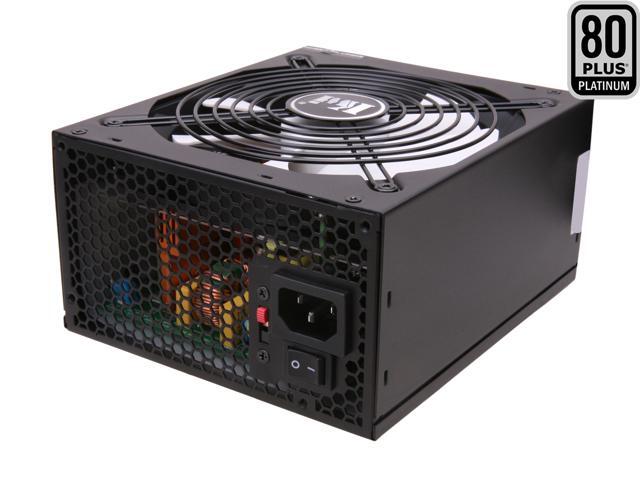

KINGWIN LZP-750 750 W ATX 12V v2.2, EPS 12V v2.91, and SSI EPS 12V v2.92 SLI Ready CrossFire Ready 80 PLUS PLATINUM Certified Modular Active PFC Power Supply
- ATX 12V v2.2, EPS 12V v2.91, and SSI EPS 12V v2.92
- Modular
- 80 PLUS PLATINUM Certified
- 115 - 240 V 50/60 Hz
- +3.3V@20A, +5V@20A, +12V@62A, [email protected], [email protected]
Overview
Specs
Reviews (4)
Any questions? Our AI beta will help you find out quickly.
Try me now
The Kingwin Lazer Platinum LZP-750 is the second entry of the Lazer Platinum Power Supply Series. LZP-750 also comes with an extended 5 year warranty & active PFC design. Check out Kingwin’s Lazer LZP-750, the new standard in power supplies. With 80 PLUS PLATINUM certification, it has achieved an efficiency rate of up to 92% under 50% load. Kingwin LZP-750 also has a built in exclusive ECO Intelligent Thermal Control System, a zero noise operation for the power supply when first turned on. The fan will not rotate until the temperature reaches a default temperature. If you want absolute efficiency with supreme performance and quietness, the Kingwin LZP-750 is a terrific option.
80 PLUS Platinum CertifiedThe 80 PLUS Platinum certified power supply provides ultra-high power efficiency of 92% at 50% load, 90% Efficiency at 20% load, 89% Efficiency at 100% load, saving your money on your electrical bill, reducing heat in your computer's system and prolonging its life.
750W continuous power with Single Strong +12V RailCompliance with ATX 12V v2.2, EPS 12V v2.91, and SSI EPS 12V v2.92 Specification, the Kingwin LZP-750 is capable of delivering 750W of 80 PLUS Platinum certified, continuous output. A single high current +12V rail @ 62A design ensures the best compatibility and maximum provision of 12V power to multi-core CPUs and energy-hungry graphics cards.
Crystal Cube Modular Plug w/ Power Connector Cable Management SystemThe crystal cube modular connector cable design allows use of only the cables you need and easier cable routing inside the case, resulting in improved airflow and reduced system clutter.
Supports CrossFireX/SLI4x 6+2 Pin PCI-E connectors are included to support multiple graphic cards in CrossFireX or SLI.
140mm Fan with Unique ECO Intelligent Thermal Control SystemIntelligent Auto Fan Speed Control on the large 140mm fan ensures exceptional cooling performance as well as minimum noise. Moreover, with Kingwin’s special ECO Intelligent Thermal Control System, the fan does not rotate until the temperature reaches a critical point; the RPM of the fan will self-adjust according to the temperature maintaining a linear relationship. And when the temperature descends to a critical point, the fan will stop rotating. This can significantly increase the life span of the fan and power efficiency by reducing unnecessary rotation and consumption.
80 PLUS Platinum CertifiedThe 80 PLUS Platinum certified power supply provides ultra-high power efficiency of 92% at 50% load, 90% Efficiency at 20% load, 89% Efficiency at 100% load, saving your money on your electrical bill, reducing heat in your computer's system and prolonging its life.
750W continuous power with Single Strong +12V RailCompliance with ATX 12V v2.2, EPS 12V v2.91, and SSI EPS 12V v2.92 Specification, the Kingwin LZP-750 is capable of delivering 750W of 80 PLUS Platinum certified, continuous output. A single high current +12V rail @ 62A design ensures the best compatibility and maximum provision of 12V power to multi-core CPUs and energy-hungry graphics cards.
Crystal Cube Modular Plug w/ Power Connector Cable Management SystemThe crystal cube modular connector cable design allows use of only the cables you need and easier cable routing inside the case, resulting in improved airflow and reduced system clutter.
Supports CrossFireX/SLI4x 6+2 Pin PCI-E connectors are included to support multiple graphic cards in CrossFireX or SLI.
140mm Fan with Unique ECO Intelligent Thermal Control SystemIntelligent Auto Fan Speed Control on the large 140mm fan ensures exceptional cooling performance as well as minimum noise. Moreover, with Kingwin’s special ECO Intelligent Thermal Control System, the fan does not rotate until the temperature reaches a critical point; the RPM of the fan will self-adjust according to the temperature maintaining a linear relationship. And when the temperature descends to a critical point, the fan will stop rotating. This can significantly increase the life span of the fan and power efficiency by reducing unnecessary rotation and consumption.Warranty & Returns
