Item#: N82E16817121092

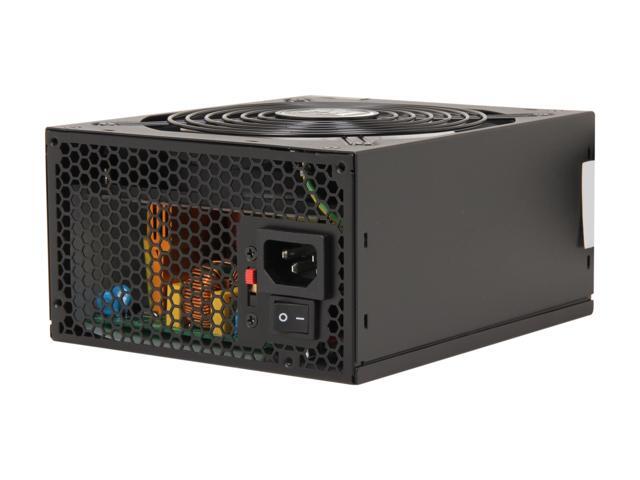

KINGWIN LZP-650 650W ATX 12V v2.2 / EPS 12V v2.91 SLI Ready CrossFire Ready 80 PLUS PLATINUM Certified Modular Active PFC Power Supply

  • ATX 12V v2.2 / EPS 12V v2.91
  • Modular
  • 80 PLUS PLATINUM Certified
  • 115Vac ~ 240Vac 50/60 Hz
  • +3.3V@20A, +5V@20A, +12V@54A, -12V@0.5A, +5VSB@2.5A
ICON Loading...

A new standard in power supplies is here; the Kingwin Lazer Platinum LZP-650 is one of the world’s first 80 Plus Platinum Power Supplies. With 80 PLUS PLATINUM certification, it has achieved an efficiency rate of up to 92% under 50% load. Kingwin LZP-650 also has a built in exclusive ECO Intelligent Thermal Control System, a zero noise operation for the power supply when first turned on. The fan will not rotate until the temperature reaches a default temperature. If you want absolute efficiency with supreme performance and quietness, LZP-650 will be the weapon of your choice.

  • newegg 80 PLUS Platinum Certified The 80 PLUS Platinum certified power supply provides ultra-high power efficiency of 92% at 50% load, 90% Efficiency at 20% load, 89% Efficiency at 100% load, saving your money on your electrical bill, reducing heat in your computer's system and prolonging its life.
  • newegg 650W continuous power with Single Strong +12V Rail Compliance with ATX 12V v2.2, EPS 12V v2.91, and SSI EPS 12V v2.92 Specification, the Kingwin LZP-650 is capable of delivering 650W of 80 PLUS Platinum certified, continuous output. A single high current +12V rail @ 54A design ensures the best compatibility and maximum provision of 12V power to multi-core CPUs and energy-hungry graphics cards.
  • newegg Crystal Cube Modular Plug w/ Power Connector Cable Management System The crystal cube modular connector cable design allows use of only the cables you need and easier cable routing inside the case, resulting in improved airflow and reduced system clutter.
  • newegg Supports CrossFireX/SLI 2 x 6-pin and 2 x 6+2-Pin PCI-E connectors are included to support multiple graphic cards in CrossFireX or SLI.
  • newegg 140mm Fan with Unique ECO Intelligent Thermal Control System Intelligent Auto Fan Speed Control on the large 140mm fan ensures exceptional cooling performance as well as minimum noise. Moreover, with Kingwin’s special ECO Intelligent Thermal Control System, the fan does not rotate until the temperature reaches a critical point; the RPM of the fan will self-adjust according to the temperature maintaining a linear relationship. And when the temperature descends to a critical point, the fan will stop rotating. This can significantly increase the life span of the fan and power efficiency by reducing unnecessary rotation and consumption.

Learn more about the Kingwin Inc. LZP-650

Model

Brand
KINGWIN
Model
LZP-650

Spec

Type
ATX 12V v2.2 / EPS 12V v2.91
Maximum Power
650W
Fans
1
PFC
Active
Main Connector
20+4Pin
+12V Rails
Single
PCI-Express Connector
2 x 6-Pin, 2 x 6+2-Pin
SATA Power Connector
8
SLI
SLI Ready
CrossFire
CrossFire Ready
Modular
Modular
Efficiency
50% Load (92% Efficiency),20% Load (90% Efficiency), 100% Load (89% Efficiency)
Energy-Efficient
80 PLUS PLATINUM Certified
Over Voltage Protection
Yes
Overload Protection
Yes
Input Voltage
115Vac ~ 240Vac
Input Frequency Range
50/60 Hz
Input Current
10A
Output
+3.3V@20A, +5V@20A, +12V@54A, -12V@0.5A, +5VSB@2.5A
Approvals
cTUVus / TUV / CB / CE / FCC / CCC / C-Tick / BSMI
Dimensions
6.70" x 5.91" x 3.39"
Weight
5.5 - 6.5 lbs.

Features

Connectors
1 x 20+4 pin Main Connector
1 x 8 pin +12V Power Connector
2 x 6 pin PCI-E Connector
2 x 6+2 pin PCI-E connector
8 x SATA
5 x Peripheral
1 x Floppy
Features
Support Intel Sandy Bridge / Core i7-980X / Core i7 / Core i5 / Core 2 Quad/ C ore 2 Duo & AMD Phenom II X6 / Phenom II X4 / Phenom II X3 / Athlon 64 X2 High Performance CPU

Compliance with ATX 12V v2.2, EPS 12V v2.91, and SSI EPS 12V v2.92 Specification

Crystal Cube Modular Plug w/ Power Connector Cable Managment System (6 connectors for LZP-550/650/750/850. 8 connectors for LZP-1000/1200)

Hybrid Dual Voltage Automatic Switch System

Superior Vertical Double Layer Main Transformer

More than 2,000 Times ON / OFF Test

Stable + 12V Current

140MM Fan

Intelligent Auto Fan Speed Control

Two Way Switch Thermal Control System

ECO Intelligent Thermal Control System

Quick Info

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years


Customer Reviews of the Kingwin Inc. LZP-650

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Karen I.
  • 11/24/2012 9:59:40 AM
  • Tech Level: Average
  • Ownership: 1 month to 1 year
  • Verified Owner

4 out of 5 eggsFunctional

Pros: I have owned the PSU a duration of 5 months and I use my computer 1-2 hours per during the night hours. It has been reliable and relatively efficient. I replaced a CM Silent Pro Gold 1000 watt PSU with this.

Cons: I did not encounter any issues yet.

Other Thoughts: The PSU powers:

1. Intel i7 2600k
2. EVGA GTX 560Ti 2GB
3. Intel 320 SSD 160GB
4. Silverstone 120mm AP121 Fan
5. 2 Aerocool 140mm Shark Fans
6. Zalman CPNS9900 Max-B
6. EVGA P67 SLI MB
7.

Did you find this review helpful? Yes No

  • William D.
  • 9/30/2012 3:15:03 PM
  • Tech Level: High
  • Ownership: more than 1 year

5 out of 5 eggsGreat Product

Pros: Other than coming with a cable with a bad connector ( which Kingwin replaced right away with no questions asked ) This thing has been running 24/7 for 3 or 4 years now

Cons: None

Did you find this review helpful? Yes No

  • Daniel B.
  • 8/30/2012 8:02:48 AM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year

5 out of 5 eggssuper

Pros: really nice unit, and genuinely quiet (even has a switch for fan modes). Nice flat modular cables. Coming from a bronze rated psu, I actually notice a difference in stuff like temps and required voltages for OC.

Cons: na

Other Thoughts: Picked this up elsewhere before the Egg carried it. This is a rebranded Superflower (not just on the inside. Kingwin literally just slapped their stickers on it). That's a very good thing, making these on par with the best.

I've tried other psus from premium brands that claimed to be quiet but were not. Don't think I've heard the fan run on this yet. Don't limit your search to the marquee psu brands; these Kingwins are premium.

Did you find this review helpful? Yes No

  • David S.
  • 8/19/2012 1:08:14 PM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsSo far, silent and efficient.

Pros: Some people have complained of whining noises in other silent PSU brands. I havent (to this point), experienced that. Its quiet, and extremely efficient. in fact, my monitor uses more power than my entire PC.

Cons: Modular cabling for the graphics card would be a plus, but certainly not a show stopper.

Other Thoughts: Good Power Supply.

Did you find this review helpful? Yes No

  • Jon G.
  • 7/2/2012 10:38:00 AM
  • Tech Level: Average
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsSilence is platinum

Pros: Quiet as a mouse fart. I can hear my CPU fan, not the PSU fan.
Great semi-modular setup (not fully modular) making install a breeze.
Plenty of power for my Photoshop & video encoding machine (i.e. slot-powered vid card only).
Fit into my Cooler Master rig no problem.

Cons: A tad pricey, but expect payback in silence and savings over time, so worth the investment. Thus, 'con' in the upfront only, so won't take away an egg, and I got on sale for a great price.

Did you find this review helpful? Yes No

  • Michael H.
  • 6/9/2012 7:06:59 PM
  • Tech Level: Average
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsPower platinum

Pros: Worrking well so far. Fairly steathly rarely notice its presence. Power has been excellent. No problemas. Well packaged -plenty of connections for me

Cons: Heavy- if that is a con to you.

Other Thoughts: Fits well in InWin Dragon

Did you find this review helpful? Yes No

  • James L.
  • 5/20/2012 7:32:41 AM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsSolid Platinum

Pros: Quiet, modular cabling for drives, GPU's, etc; fixed cables for CPU and MB. Cable lengths were fine. Price was okay. I liked the single 12V rail and was drawn to the Platinum-rated efficiency. Five year warranty. Did I say quiet?

Cons: Drive cables are a bit stiff,

Other Thoughts: Based on this unit, I would buy this brand again. Only time will tell if this is a good supply.

Did you find this review helpful? Yes No
