Item#: N82E16817121093

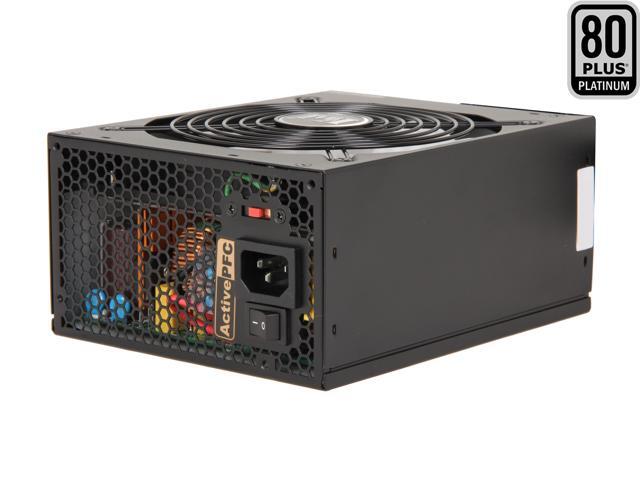

KINGWIN LZP-850 850W ATX 12V v2.2 / EPS 12V v2.91 SLI Ready CrossFire Ready 80 PLUS PLATINUM Certified Modular Active PFC Power Supply

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • ATX 12V v2.2 / EPS 12V v2.91
  • Modular
  • 80 PLUS PLATINUM Certified
  • 115Vac ~ 240Vac 50/60 Hz
  • +3.3V@20A, +5V@20A, +12V@70A, -12V@0.5A, +5VSB@2.5A
  • ATX12V & EPS12V Power Supply
  • 110 V AC 220 V AC
  • 80 Plus Platinum RoHS

LOADING... LOADING...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

A new standard in power supplies is here; the Kingwin Lazer Platinum LZP-850 is one of the world’s first 80 Plus Platinum Power Supplies. With 80 PLUS PLATINUM certification, it has achieved an efficiency rate of up to 92% under 50% load. Kingwin LZP-850 also has a built in exclusive ECO Intelligent Thermal Control System, a zero noise operation for the power supply when first turned on. The fan will not rotate until the temperature reaches a default temperature. If you want absolute efficiency with supreme performance and quietness, LZP-850 will be the weapon of your choice.

  • newegg 80 PLUS Platinum Certified The 80 PLUS Platinum certified power supply provides ultra-high power efficiency of 92% at 50% load, 90% Efficiency at 20% load, 89% Efficiency at 100% load, saving your money on your electrical bill, reducing heat in your computer's system and prolonging its life.
  • newegg 850W continuous power with Single Strong +12V Rail Compliance with ATX 12V v2.2, EPS 12V v2.91, and SSI EPS 12V v2.92 Specification, the Kingwin LZP-850 is capable of delivering 850W of 80 PLUS Platinum certified, continuous output. A single high current +12V rail @ 70A design ensures the best compatibility and maximum provision of 12V power to multi-core CPUs and energy-hungry graphics cards.
  • newegg Crystal Cube Modular Plug w/ Power Connector Cable Management System The crystal cube modular connector cable design allows use of only the cables you need and easier cable routing inside the case, resulting in improved airflow and reduced system clutter.
  • newegg Supports CrossFireX/SLI 5 x 6+2-Pin PCI-E connectors are included to support multiple graphic cards in CrossFireX or SLI.
  • newegg 140mm Fan with Unique ECO Intelligent Thermal Control System Intelligent Auto Fan Speed Control on the large 140mm fan ensures exceptional cooling performance as well as minimum noise. Moreover, with Kingwin’s special ECO Intelligent Thermal Control System, the fan does not rotate until the temperature reaches a critical point; the RPM of the fan will self-adjust according to the temperature maintaining a linear relationship. And when the temperature descends to a critical point, the fan will stop rotating. This can significantly increase the life span of the fan and power efficiency by reducing unnecessary rotation and consumption.

Learn more about the Kingwin Inc. LZP-850

Model

|
Brand
KINGWIN
Model
LZP-850
Series
LAZER

Details

|
Type
ATX 12V v2.2 / EPS 12V v2.91
Maximum Power
850W
Fans
1
PFC
Active
Main Connector
20+4Pin
+12V Rails
Single
PCI-Express Connector
4 x 6+2-Pin
SATA Power Connector
12
SLI
SLI Ready
Haswell Support
Yes
CrossFire
CrossFire Ready
Modular
Modular
Efficiency
50% Load (92% Efficiency), 20% Load (90% Efficiency), 100% Load (89% Efficiency)
Energy-Efficient
80 PLUS PLATINUM Certified
Over Voltage Protection
Yes
Overload Protection
Yes
Input Voltage
115Vac ~ 240Vac
Input Frequency Range
50/60 Hz
Input Current
10A
Output
+3.3V@20A, +5V@20A, +12V@70A, -12V@0.5A, +5VSB@2.5A
Approvals
cTUVus / TUV / CB / CE / FCC / CCC / C-Tick / BSMI
Dimensions
7.09" x 5.91" x 3.15"
Weight
5.5 - 6.5 lbs.
Type
ATX12V & EPS12V Power Supply
+12V Rails
1
Modular
Yes
Efficiency
92%
Energy-Efficient
80 Plus Platinum RoHS

Input

|
Input Voltage
110 V AC 220 V AC

Features

|
Connectors
1 x 20+4 pin Main Connector
2 x 4 pin +12V Power Connector
4 x 6+2 pin PCI-E connector
12 x SATA
6 x Peripheral
1 x Floppy
Features
Support Intel Sandy Bridge / Core i7-980X / Core i7 / Core i5 / Core 2 Quad / Core 2 Duo & AMD Phenom II X6 / Phenom II X4 / Phenom II X3 / Athlon 64 X2 High Performance CPU

Compliance with ATX 12V v2.2, EPS 12V v2.91, and SSI EPS 12V v2.92 Specification

Crystal Cube Modular Plug w/ Power Connector Cable Managment System (6 connectors for LZP-550/650/750/850. 8 connectors for LZP-1000/1200)

Hybrid Dual Voltage Automatic Switch System

Superior Vertical Double Layer Main Transformer

More than 2,000 Times ON / OFF Test

Stable + 12V Current

140MM Fan

Intelligent Auto Fan Speed Control

Two Way Switch Thermal Control System

ECO Intelligent Thermal Control System
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details
  • Return Policies
    • Return for refund within: 30 days
    • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Standard Return Policy.
