Manufacturer Warranty
Beyond any applicable Newegg return policy, this item is warranted independently by the product's Manufacturer. Below is a summary provided for convenience only and may not be accurate or current.
Use this link for full details.
- Manufacturer Limited Warranty period (parts): 3 years
- Manufacturer Limited Warranty period (labor): 3 years
Manufacturer Contact Info
|
-
- 5
-
- 65%
- 4
-
- 35%
- 3
-
- 0%
- 2
-
- 0%
- 1
-
- 0%
| Product Rating: |
|
| Total Reviews: |
26 |
Plenty of Power
- Pros: Plenty of various connectors for just about anything. Pleny of power for a new gaming system I just set up
- Cons: No real cons to speak of, but read my other thoughts
- Other Thoughts: The cables are very large and long on this power supply. Mine is a bottom case mount so the cables just lay in the bottom, I would not recomend this supply for a case with teh power supply in the top because the cables would be hanging down all over the place in the way.
Woorks Good
- Pros: Works very well. Newest game played is COD4, everythig as high a setting as possible with no slow downs or freezes etc.
- Cons: Not really a con, but the card is VERY LONG which makes routing cables around it a bit of a challenge.
Nice PSU
- Pros: Gives good amount of power, can hardly hear it, the wires are sleaved, and it comes with a 3 year warranty.
- Cons: This actually shouldn't be a con, but there is a lot of connectors, and i mean, a lot.
- Other Thoughts: DFI LP JR 790GX, AMD 8750 Triple-core processor, Seagate 160gb, HiPer 730w, Xion 2 Green LED case, Cooler Master 120mm CPU fan. Great Built (if i say so myself) :D

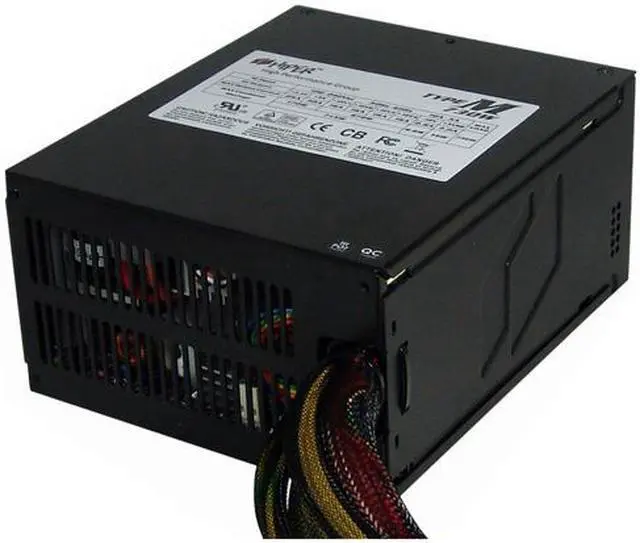

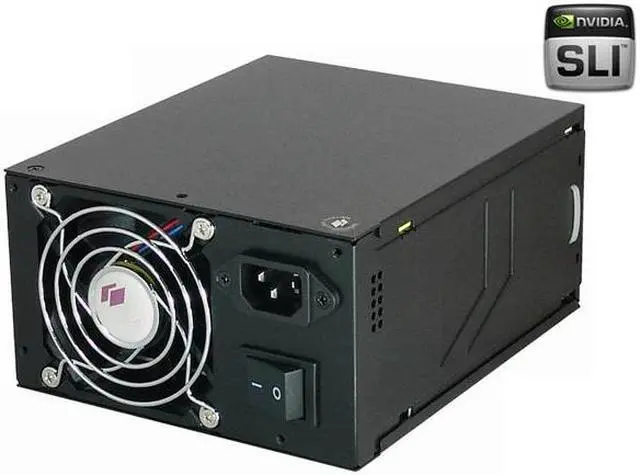

| Model |
| Brand |
HIPER |
| Model |
HPU-4M730-SS |
| Series |
Type M |
| Spec |
| Type |
ATX12V V2.2 & EPS12V V2.91 |
| Maximum Power |
730W Continuous @ 40°C
(Maximum Continuous Peak: 780W) |
| Fans |

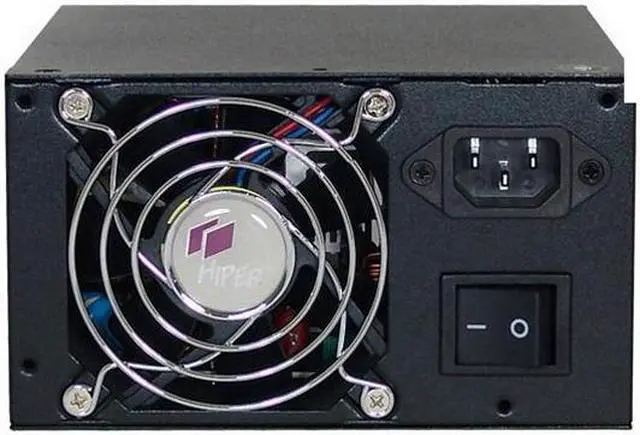

1 x 80mm Dual Ball-Bearing Fan |
| PFC |
Active |
| Main Connector |
24Pin |
| +12V Rails |
4 |
| PCI-Express Connector |
2 x 6-Pin |
| SLI |
Certified |
| CrossFire |
Ready |
| Modular |
No |
| Power Good Signal |
100-500ms |
| Hold-up Time |
18ms min. |
| Efficiency |
Up to 80% @ Full & Typical Load |
| Over Voltage Protection |
Yes |
| Overload Protection |
Yes |
| Input Voltage |
100 - 240 V |
| Input Frequency Range |
50/60 Hz |
| Input Current |
10/5A |

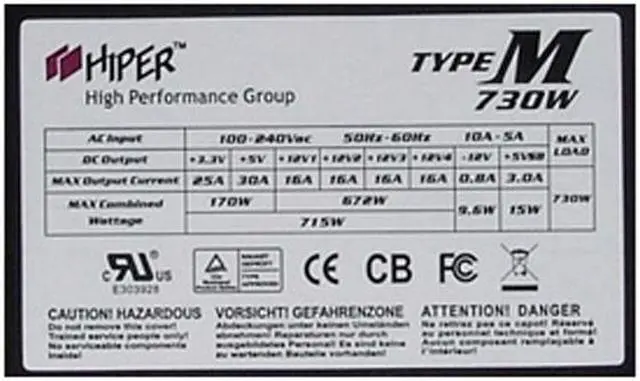

| Output |
+3.3V@25A,+5V@30A,+12V1@16A,+12V2@16A,+12V3@16A,+12V4@16A,-12V@0.8A,+5VSB@3.0A |
| Approvals |
cUL, CE, CB, FCC |
| Dimensions |
7.1" x 5.9" x 3.4" |
| Features |
| Connectors |

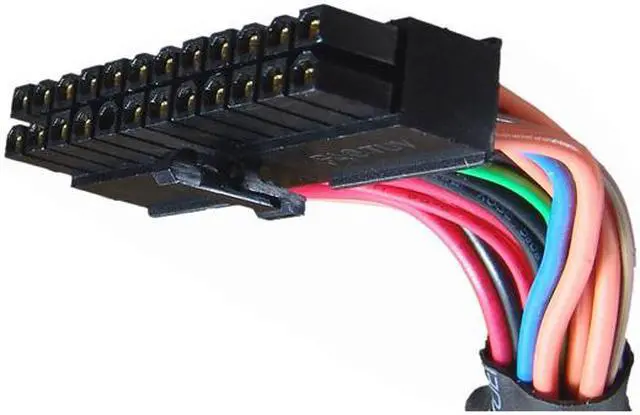

1 x Main connector (24Pin)
1 x 12V(P4)

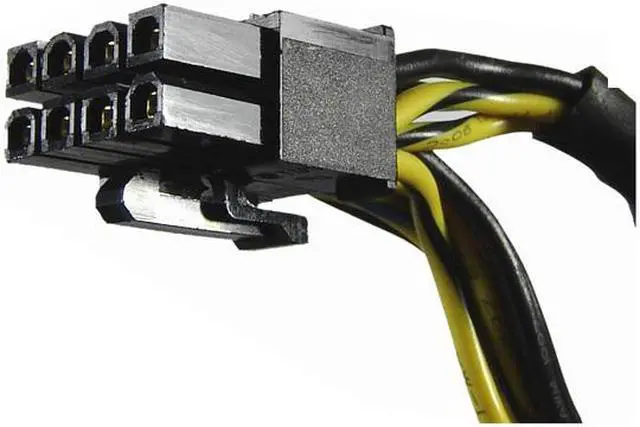

1 x 12V(8pin)

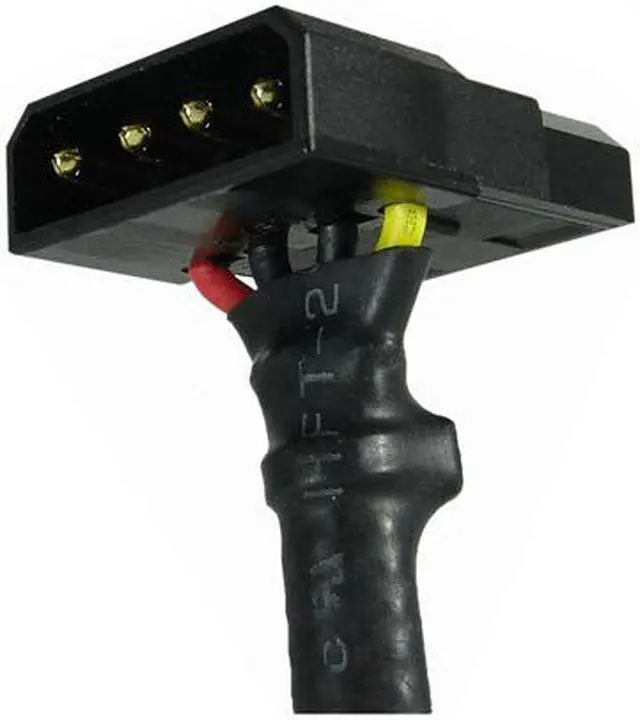

7 x peripheral

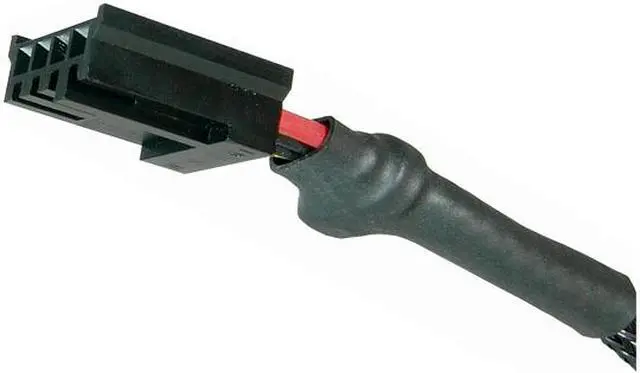

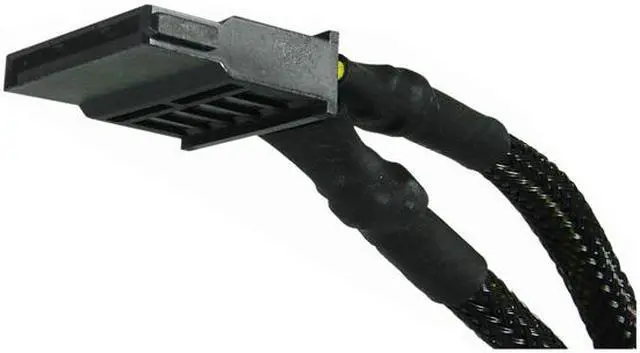

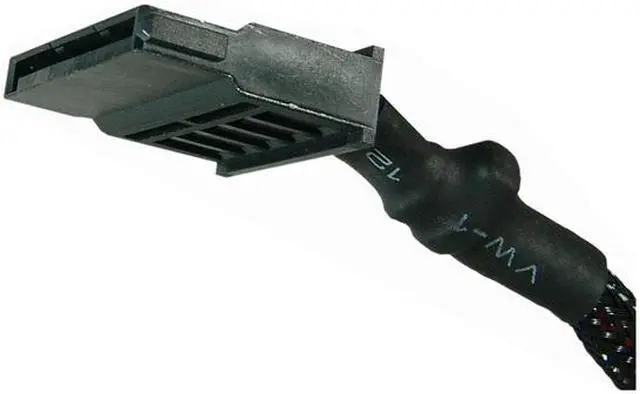

4 x SATA
1 x Floppy
2 x PCI-E |
| Features |
Extender Cable Management System (Patented)
Four Independent +12VDC Outputs
Active PFC: PF Up To 99% & Reduces Distortion
Gold-Plated Connectors - Minimum Power Loss & Optimal Conductivity

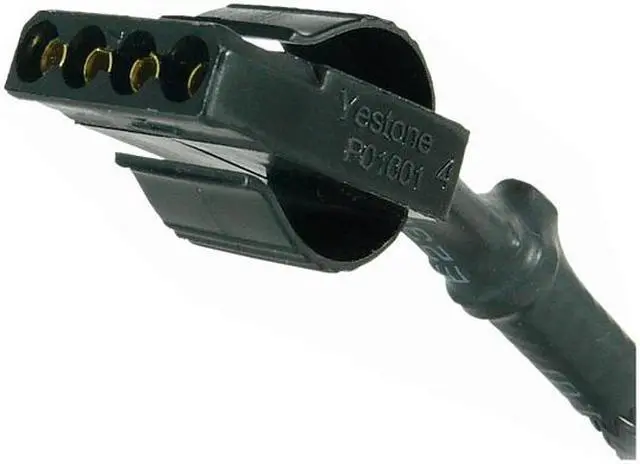

EZ Grip Connectors for ODDs & HDDs
High Quality Sleeved Cabling

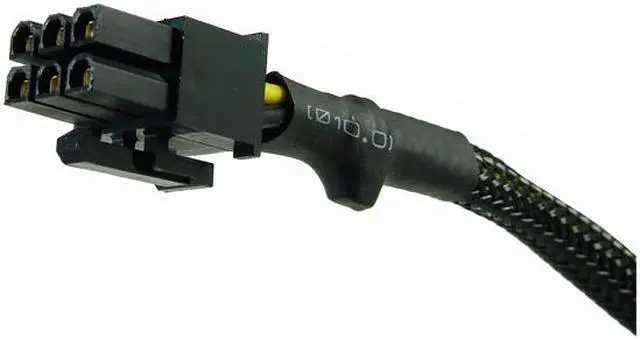

2 x PCI Express Power 6Pin
ATX 24Pin Main Connector
ATX12V CPU 4-Pin & EPS12V CPU 8-Pin |
| Manufacturer Warranty |
| Parts |
3 years limited |
| Labor |
3 years limited |
|
|
Reviewed By: Judge Dredd on 11/9/2008
Tech Level: somewhat high - Ownership: 1 month to 1 year
