Item#: N82E16817139006

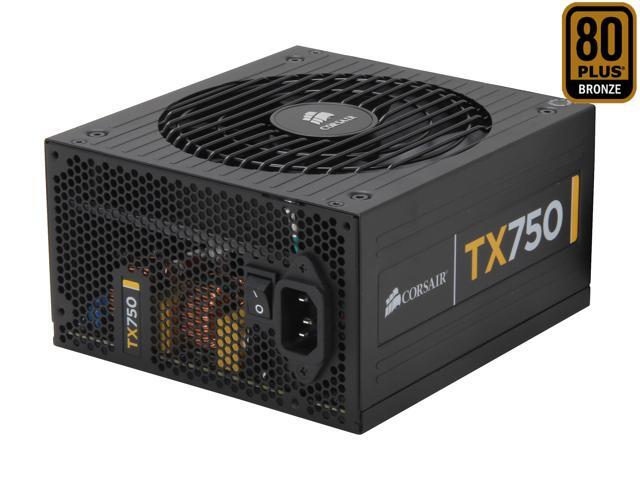

CORSAIR TX Series CMPSU-750TX 750W ATX12V v2.3 SLI Ready CrossFire Ready 80 PLUS BRONZE Certified Active PFC Compatible with Core i7 Power Supply

  • ATX12V v2.3
  • 80 PLUS BRONZE Certified
  • 100 - 240 V
  • Pin It
  • Email this page
ICON Loading...

The quieter TX series redefines reliability for the industry. With fanless mode at low loads and 50C temp rating, the TX series is legendary for being reliable, efficient, and using high-quality components. 0.99 Active Power Factor Correction provides clean and reliable power. Featuring 80 PLUS Bronze efficiency, the TX series uses less power and produces less heat. A dedicated single +12V rail offers maximum compatibility with the latest components. Each PSU also includes long, pre-sleeved cables, perfect for modern cases with the PSU on bottom.

  • newegg Cools when needed An ultra-quiet 140mm double ball-bearing fan delivers excellent airflow when needed. When at low loads, the power supply will be in fanless mode.
  • newegg Designed to work under conditions 50°C temp rating and industrial-grade 105°C primary capacitors ensure amazing reliability and stability under extreme conditions.
  • newegg 80PLUS Bronze certification The 80 PLUS Bronze certified power supply provides high power efficiency of at least 82% at any load between 20% and 100%, saving your money on your electrical bill, reducing heat in your computer's system and prolonging its life.
  • newegg SLI and CrossFire Certified Featuring four 6+2-pin PCI-E power connectors, the Corsair CMPSU-750TX power supply has gone through a series of rigorous SLI and CrossFire certification tests for maximum system stability when building SLI and CrossFire PCs.

Learn more about the Corsair CMPSU-750TX

Model

Brand
CORSAIR
Model
CMPSU-750TX
Series
TX Series

Spec

Type
ATX12V v2.3
Maximum Power
750W
Fans
1
PFC
Active
Main Connector
20+4Pin
+12V Rails
Single
PCI-Express Connector
4 x 6+2-Pin
SATA Power Connector
8
SLI
SLI Ready
CrossFire
CrossFire Ready
Modular
No
Efficiency
Up to 85%
Energy-Efficient
80 PLUS BRONZE Certified
Input Voltage
100 - 240 V
Input Frequency Range
47 - 63 Hz
Input Current
4 - 12A
Output
+3.3V@30A, +5V@30A, +12V@62A, -12V@0.8A, +5VSB@3.0A
MTBF
100,000 Hours
Dimensions
5.9"(W) x 3.4"(H) X 6.3"(L)
Weight
7.2 lbs.

Features

Connectors
1 x Main connector (20+4Pin)
1 x 12V(4/8Pin)
8 x Peripheral
8 x SATA
2 x Floppy
4 x PCI-E
Features
Fanless mode at low loads for quiet operation, with an ultra-quiet 140mm double ball-bearing fan that delivers excellent airflow when needed.

Up to 85% energy efficiency means less heat generation and lower energy bills.

0.99 Active Power Factor Correction provides clean and reliable power.

Universal AC input from 100~240V.

A dedicated single +12V rail offers maximum compatibility with the latest components.

Over-voltage and over-power protection, under-voltage protection, and short circuit protection provide maximum safety to your critical system components.

Extra long fully-sleeved cables support full tower chassis.

It supports the latest ATX12V v2.3 standard and is backward compatible with ATX12V 2.2 and ATX12V 2.01 systems.

Manufacturer Warranty

Parts
5 years limited
Labor
5 years limited

Quick Info

Warranty

  • Limited Warranty period (parts): 5 years
  • Limited Warranty period (labor): 5 years


Customer Reviews of the Corsair CMPSU-750TX

Do you own this product? Write a Review

Filter Results

Go
  • N/A
  • 5/20/2013 1:58:22 PM
  • Tech Level: High
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggsReliable

Pros: Had this since 2009 October, still kicking it. Survived two sudden blackouts. I have surge protector but I've had PSU that die even with a surge protector before.

Cons: Not Modular, not really not a big deal(it doesnt bother me)

Did you find this review helpful? Yes No

  • jackswift
  • 5/18/2013 12:48:04 PM
  • Tech Level: Somewhat High
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggsStill going strong!

Pros: It's been in my rig for over 4 years now, nothing but smooth handling of my power hungry 955 BE and GTX260. I'm thinking about upgrading my rig soon, and I'll definitely be keeping this PSU.

Cons: It's not modular, but I knew that going in. Not a problem in my case, since I have a full tower, the unused medusa cords sit at the bottom of my case, not obstructing anything.

Did you find this review helpful? Yes No

  • N/A
  • 5/13/2013 10:41:54 PM
  • Tech Level: Average
  • Ownership: more than 1 year
  • Verified Owner

2 out of 5 eggsworked great for 3 years

Pros: Ran my system without issue for 3 years

Cons: Died too early

Did you find this review helpful? Yes No

  • Nick
  • 5/9/2013 12:51:44 PM
  • Tech Level: High
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggsWorks fine 5 years later

Pros: The five year anniversary of this running a hefty computer (including SLI'd power hungry cards) without any problems is coming up in a month. Still going strong, I've never had any problems. Extremely solid power supply, supports everything I could throw at it, no regrets whatsoever.

Cons: Doesn't have modular cables, and there are a LOT of cables.

Other Thoughts: Corsair is a great brand for power supplies, I've owned a few of them and have never had problems.

Did you find this review helpful? Yes No

  • alendar
  • 5/2/2013 11:58:46 AM
  • Tech Level: Average
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsVery quiet

Pros: It's very quiet and I like the sturdiness of the connectors. It's extremely heavy, which I was told by an engineer that that's a good way to tell. A good power supply needs lots of metal. Cheapos are very light.

Cons: The fan goes off at low nor no load, which is fine, except that I forgot it was on, being so use to my old loud PSUs. So I pulled a memory chip out, and ZAP! So too quiet. Board and memory are hosed. Don't know about the CPU.

Other Thoughts: I'm getting the modular one next time so I can reduce the cable tangle.

0 out of 1 people found this review helpful. Did you? Yes No

  • N/A
  • 5/1/2013 1:18:58 PM
  • Tech Level: Average
  • Ownership: less than 1 day
  • Verified Owner

1 out of 5 eggsDOA

Pros: None that I saw

Cons: Dead out of the box. Huge in size and with the massive bundle of cables(pro?) it made it a paint to work with.

1 out of 1 people found this review helpful. Did you? Yes No

  • N/A
  • 4/25/2013 8:53:11 PM
  • Tech Level: Average
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsEasy to install, no mess, no problem

Pros: I would say it functions perfectly and comes with everything you need for ATX.

Cons: None to think of, works perfectly

Did you find this review helpful? Yes No

  • Kitt
  • 4/22/2013 11:35:52 AM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsNew Build

Pros: I chose an over powered PS for future upgrades and this was exactly what a needed, priced right and burly enough to handle my current build and the upgrades I plan to install over the next year.

Cons: Wish the cable management on it was easier, but you know that going into it when you purchase it.

Did you find this review helpful? Yes No

  • BattlePope
  • 4/22/2013 8:49:40 AM
  • Tech Level: High
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggsCornerstone of Corsair's Reputation

Pros: Good efficiency, relatively quiet (for what it is), generous supply of connections, rock solid 12v rail for enthusiasts.

Cons: Fairly large, lots of excess cabling. Clearly designed for a larger case, but most enthusiast level components are.

Other Thoughts: Purchased originally back in 2008 when the TX series supplies were labeled in that strange brown-orange lettering. Corsair were new to the power supply market but made a huge splash with this unit especially. Mine has run since day 1 powering an i5-750 running at a modest 4ghz aircooled overclock. I haven't lost any components to power failure or otherwise so that's a win in my book. I have heard that Corsair has experienced some periodic quality hangups over the last year or so - hopefully a trend that doesn't continue. If they continue selling PSUs with the same quality as the one in my PC, I will continue buying them for every PC I build.

Did you find this review helpful? Yes No

  • N/A
  • 4/16/2013 4:34:46 PM
  • Tech Level: Average
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsAwesome PSU

Pros: Gets me all the power I need. Will be adding a GPU soon so we'll see how it handles.

Cons: It crapped out on me after about three weeks, but I immediately got an RMA and had a new unit the next week. Good thing I had a back up unit. Can't really dock an egg for that though. Customer service was wonderful from Newegg.

1 out of 1 people found this review helpful. Did you? Yes No
