Item#: N82E16817139009

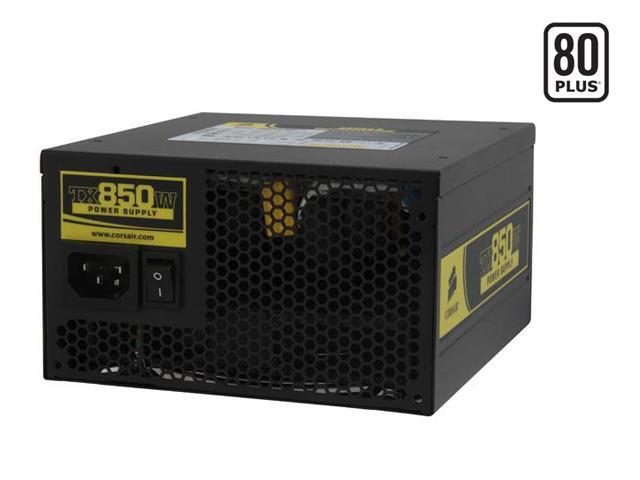

CORSAIR Enthusiast Series CMPSU-850TX 850W ATX12V v2.2 / EPS12V v2.91 SLI Certified CrossFire Ready 80 PLUS Certified Active PFC Power Supply

  • ATX12V v2.2 / EPS12V v2.91
  • 80 PLUS Certified
  • 100 - 240 V 50/60 Hz
  • +3.3V@30A, +5V30A, +12V@70A, -12V@0.8A, +5VSB@3A
ICON Loading...

If you're looking for a power supply to feed your hungry system, look no further. The new TX850W PSU from Corsair puts out an impressive 850 watts of power and supports the latest ATX12V v2.2 standards as well as EPS12V 2.91 standards. The unit is 80 Plus certified and has a 99% Active Power Factor Correction to ensure maximum efficiency.

The cables are extra long to work in the largest tower. They are fully sleeved for easy routing and bundling. There are four 8-pin PCIe power connectors so you can build up a CrossFire or SLI system using today’s high end video cards. There are also 8 SATA and 8 Molex connectors so you can connect multiple drives and peripherals.

Keeping it all cool is a temperature-controlled 140mm fan. Air is vented through the hexagon mesh back panel. The universal input accepts voltages from 90-264 so you no longer have to worry if the switch was in the right position.

  • newegg ATX12V and EPS12V Compatible Compatible with the ATX12V v2.2 and EPS12V v2.91 standards, the Corsair CMPSU-850TX provides maximum power stability to drive the latest Intel and AMD processors as well as other components for desktop and server computer systems.
  • newegg 850W Maximum Power The Corsair CMPSU-850TX provides a maximum power of 850W for a safe, reliable output for high-end computer systems.
  • newegg 80 PLUSCertified The 80 PLUS certified power supply provides high power efficiency of at least 80% at any load between 20% and 100%, saving your money on your electrical bill, reducing heat in your computer's system and prolonging its life.
  • newegg Four PCI-E Connectors With four 6+2-pin PCI-E connectors, the Corsair CMPSU-850TX is ideal for building up a SLI or CrossFire gaming system.
  • newegg 140mm Silent Cooling Fan The Corsair CMPSU-850TX features a 140mm thermally controlled fan for increased overall airflow and heat dissipation in the power supply enclosure.

Learn more about the Corsair CMPSU-850TX

Model

Brand
CORSAIR
Model
CMPSU-850TX
Series
Enthusiast Series

Spec

Type
ATX12V v2.2 / EPS12V v2.91
Maximum Power
850W
Fans
1 x 140mm double ball-bearing fan
PFC
Active
Main Connector
20+4Pin
+12V Rails
Single
PCI-Express Connector
4 x 6+2-Pin
SATA Power Connector
8
SLI
SLI Certified
CrossFire
CrossFire Ready
Modular
No
Efficiency
> 80%
Energy-Efficient
80 PLUS Certified
Over Voltage Protection
Yes
Overload Protection
Yes
Input Voltage
100 - 240 V
Input Frequency Range
50/60 Hz
Input Current
12A
Output
+3.3V@30A, +5V30A, +12V@70A, -12V@0.8A, +5VSB@3A
MTBF
>100,000 Hours
Dimensions
5.9"(W) x 3.4"(H) x 6.3"(L)

Features

Connectors
1 x Main connector (20+4Pin)
1 x 4+4 Pin EPS/ATX12V
4 x PCI-E
2 x Floppy
8 x Peripheral
8 x SATA Power
Features
Supports ATX12V v2.2 standard and older ATX12V 2.01 spec

Ultra-quiet 140mm double ball-bearing fan delivers excellent airflow

80%+ energy efficiency at 20%, 50% and 100% load condition for less heat generation and lower energy bill

99% Active Power Factor Correction provides clean and reliable power to your system

Universal AC input 90~264V automatically scans and detects the correct voltage

Dedicated single +12V rail offers maximum compatibility with latest components

Over Current/Voltage/Power Protection, Under Voltage Protection, and Short Circuit Protection provide maximum safety to your critical system components.

High quality Japanese capacitors provide uncompromised performance and reliability.

Extra long cables support full tower size chassis.

Manufacturer Warranty

Parts
5 years limited
Labor
5 years limited

Quick Info

Warranty

  • Limited Warranty period (parts): 5 years
  • Limited Warranty period (labor): 5 years


Customer Reviews of the Corsair CMPSU-850TX

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Duane V.
  • 3/17/2014 11:27:56 AM
  • Tech Level: Somewhat High
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggsBest PSU I've ever owned

Pros: Lots of cables, 12V rail is very strong and handles more than what it's rated for with video cards. Currently running 2 GTX 560's in SLI under 6 core processer for 3 yrs. I do believe proper power is why components last longer and this power supply is no slouch.

Cons: None so far after 3 yrs of faithful service.

Other Thoughts: Although the 850W rating seems a little low for some considering what components I am running, the 70A 12V rail is overkill for my hardware and all the accessories.

Did you find this review helpful? Yes No

  • Cameron B.
  • 1/23/2014 6:36:28 AM
  • Tech Level: High
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggsWell worth it.

Pros: Very good looking (if that matters to you), put out a lot of power...

Cons: None Reall

Other Thoughts: I run crossfired graphics cards, a 3rd GPU, 5 HDD, an optical drive, my CPU, and about 14 fans on this PSU.

Also, all my components (RAM, CPU, GPU) are overclocked very heavily, and this power supply hasn't slipped once in over 3 years.

Did you find this review helpful? Yes No

  • Aimee R.
  • 12/10/2013 7:36:49 AM
  • Tech Level: Somewhat High
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggsGreat product. died after 3 years of use but corsair happily sent me a new one in a timely manner. great company to deal with

Pros: everything I need

Cons: none

Did you find this review helpful? Yes No

  • coram m.
  • 11/28/2013 9:46:13 AM
  • Tech Level: High
  • Ownership: more than 1 year
  • Verified Owner

2 out of 5 eggsNot Great

Pros: Ok while worked

Cons: Died after about 2 years
Not buying again

Did you find this review helpful? Yes No

  • Timothy B.
  • 10/15/2013 12:06:25 PM
  • Tech Level: Somewhat High
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggsGreat PSU

Pros: AWesome PSU. Have had this since 11/2009 and it's still going strong. Spent most of its career powering an i7 920 and a 5770 in a P6T Deluxe. Now it's going to power my i5 3570K, and I feel confident it will keep going for some time to come.

Cons: None

Other Thoughts: Substantial PSU. Too bad they're discontinued.

Did you find this review helpful? Yes No

  • Joseph L.
  • 9/23/2013 10:42:14 AM
  • Tech Level: Somewhat High
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggsGreat product

Pros: Solid. Lots of connections.

Cons: None.

Other Thoughts: Lots of connections, easy install, never had an issue. I bought this 4 years ago for my build and it's never failed me. Recommended.

Did you find this review helpful? Yes No

  • Brett g.
  • 9/3/2013 7:25:41 AM
  • Tech Level: Low
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggsStill Kicking

Pros: Purchased this Feb '11. Runs like a champ. Writing this review as I plan to upgrade my system. This however, will not be upgraded. Fantastic that its still running the show.

Cons: None that I am aware of.

Other Thoughts: Feels pretty solid, as I have moved three times in the last few year. Definently got banged around a little bit. (Sadface). Though happy to report, still runs like a spring chicken.

Did you find this review helpful? Yes No

  • Tim T.
  • 8/27/2013 5:44:07 PM
  • Tech Level: Somewhat High
  • Ownership: more than 1 year
  • Verified Owner

2 out of 5 eggsI can see why it has been discontinued!

Pros: It looks nice, comes with plenty of connections, and the wires are sleeved in black, all of which are quite nice.

Cons: It isn't built to last. I have had mine for 4/1/2009 , a little over five years and it's already causing power failures do to broken/melted components. One of the 24-pin connectors is missing a pin, and one of the 8-pin connectors melted and broke off. I have since been forced to switch back to my old 350 Watt PSU--which is already working better than this one.

Other Thoughts: Aside from it causing power failures and not lasting more than it should, it was a decent PSU for a limited time.

0 out of 4 people found this review helpful. Did you? Yes No

  • Bruce N.
  • 8/23/2013 8:59:00 PM
  • Tech Level: High
  • Ownership: more than 1 year

5 out of 5 eggsworking for almost 4 years!

Pros: I believe I bought this power supply from Best Buy in store. the great news is that I purchased it around January 2010 (verified by looking at my newegg.com order history and the rest of the pc parts are all on that list except for the power supply), well its 8-23-2013 so 3.5 more months and it will be about 4 years since this has been running in my pc. I have never had one run this long and trouble free. heres the specs of the rest of the system. note: all of the other components of this system have also given me about 4 years trouble-free use. I built this pc for gaming but actually ended up playing r2: yuri's more than 3d games. the cpu can be 4 core unlocked but also I never unlocked it in bios.

1 x COOLER MASTER RC-690-KKN1-GP Black SECC/ ABS ATX Mid Tower Computer Case

GIGABYTE GA-MA785GM-US2H AM3/AM2+/AM2 AMD 785G HDMI Micro ATX AMD Motherboard
Write Review
1 x GIGABYTE GA-MA785GM-US2H AM3/AM2+/AM2 AMD 785G HDMI Micro ATX AMD Motherboard

EVGA 512-P3-N871-AR GeForce 9800 GTX+ 512MB 256-bit DDR3 PCI Express 2.0 x16 HDCP Ready SLI Support Video Card
Write Review
1 x EVGA 512-P3-N871-AR GeForce 9800 GTX+ 512MB 256-bit DDR3 PCI Express 2.0 x16 HDCP Ready SLI Support Video Card

AMD Phenom II X2 550 Black Edition Callisto 3.1GHz Socket AM3 80W Dual-Core Processor HDZ550WFGIBOX
Write Review
1 x AMD Phenom II X2 550 Black Edition Callisto 3.1GHz Socket AM3 80W Dual-Core Processor HDZ550WFGIBOX

G.SKILL 4GB (2 x 2GB) 240-Pin DDR2 SDRAM DDR2 800 (PC2 6400) Dual Channel Kit Desktop Memory Model F2-6400CL5D-4GBPQ
Write Review
1 x G.SKILL 4GB (2 x 2GB) 240-Pin DDR2 SDRAM DDR2 800 (PC2 6400) Dual Channel Kit Desktop Memory Model F2-6400CL5D-4GBPQ

Western Digital WD Black WD6401AALS 640GB 7200 RPM 32MB Cache SATA 3.0Gb/s 3.5" Internal Hard Drive
Write Review
1 x Western Digital WD Black WD6401AALS 640GB 7200 RPM 32MB Cache SATA 3.0Gb/s 3.5" Internal Hard Drive

Arctic Silver Ceramique Thermal Compound
Write Review
2 x Arctic Silver Ceramique Thermal Compound - OEM

LG 22X DVD±R DVD Burner Black IDE Model GH22NP20
Write Review
1 x LG 22X DVD±R DVD Burner Black IDE Model GH22NP20 - OEM

ARCTIC Freezer 7 Pro Rev. 2, CPU Cooler - Intel & AMD, Multi-Directional Mount, 92mm PWM Fan
8/20/2013
1 x ARCTIC Freezer 7 Pro Rev. 2, CPU Cooler - Intel & AMD, Multi-Directional Mount, 92mm PWM Fan

Cons: none really!

Did you find this review helpful? Yes No

  • Dustin P.
  • 7/3/2013 4:10:23 AM
  • Tech Level: Average
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggs3 Yeas

Pros: Runs great! Going on 3 years now, No noises or any hiccups. Sometimes I would have it on for a week. I'm a heavy gamer, what else do you need to know :P

Cons: N/A

Other Thoughts: N/A

Did you find this review helpful? Yes No
