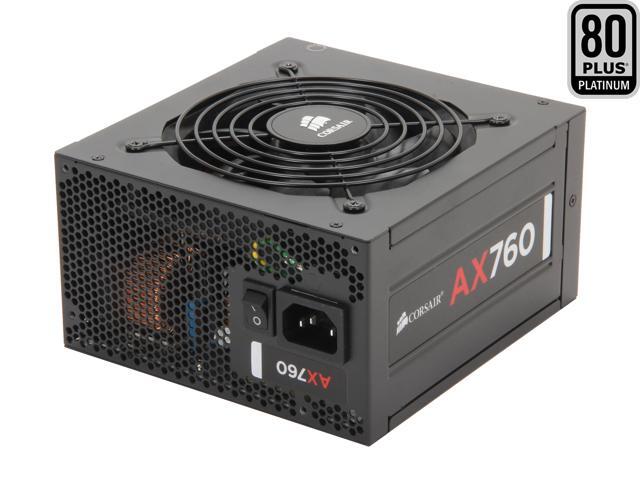

CORSAIR AX series AX760 760W ATX12V / EPS12V SLI Ready CrossFire Ready 80 PLUS PLATINUM Certified Full Modular Active PFC Power Supply New 4th Gen CPU Certified Haswell Ready
ATX12V / EPS12V
80 PLUS PLATINUM Certified
100 - 240 V 50/60 Hz
+3.3V@25A, +5V@25A, +12V@63A, -12V@0.5A, +5VSB@3.0A
Warranty & Returns
Learn more about the
Model Brand CORSAIR Model AX760 Series AX series Details Type ATX12V / EPS12V 760W 1 Active 24Pin Single 6 x 6+2-Pin 12 SLI Ready Haswell Support Certified CrossFire Ready Full Modular Energy-Efficient 80 PLUS PLATINUM Certified Yes Input Voltage 100 - 240 V Input Frequency Range 50/60 Hz Input Current 9.5 - 4.5A Output +3.3V@25A, +5V@25A, +12V@63A, -12V@0.5A, +5VSB@3.0A 100,000 Hours Approvals cTUVs, TUV, CB, CE, FCC, CCC, RCM, GOST-R, KC, IRAM, BSMI Dimensions 3.39" x 5.91" x 6.30" Weight 7.25 lbs.
Features Connectors 1 x 24pin ATX 2 x EPS 6 x PCI-E 12 x SATA 8 x Peripheral 2 x Floppy Features The latest ATX12V v2.31 and EPS 2.92 standards and it is backward compatible with ATX12V 2.2 and ATX12V 2.01 systems. Silent at low to moderate load due to high efficiency and zero RPM fanless mode. Ultra quiet at high loads with 120mm dual-ball bearing fan. 80PLUS Platinum certified, delivering over 92% energy efficiency at real world load conditions. Active Power Factor Correction (PFC) with PF value of 0.99. A dedicated single +12V rail offers maximum compatibility with the latest components. Over-voltage and over-current protection, under-voltage protection, and short circuit protection provide maximum safety to your critical system components. High-quality Japanese capacitors provide uncompromised performance and reliability. The completely modular cable system allows you to use only the cables you need. Power supply upgrade and replacement is easy, as the cables only need to be disconnected at the power supply. Low-profile, flat cable design reduces air friction and helps maximize airflow through your computer's chassis.
