Item#: N82E16817139032

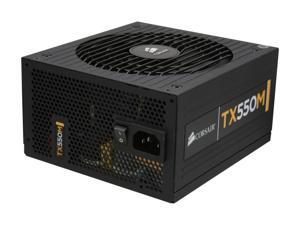

CORSAIR Enthusiast Series TX550M 550W ATX12V v2.31 / EPS12V v2.92 80 PLUS BRONZE Certified Semi Modular High Performance Power Supply

  • ATX12V v2.31 / EPS12V v2.92
  • Semi Modular
  • 80 PLUS BRONZE Certified
  • 90 - 264 V
  • +3.3V@25A, +5V@25A, +12V@45A, -12V@0.8A, +5VSB@3A
ICON Loading...

  • newegg Cable Ready The modular cabling system includes a complete set of flat, detachable cables that allow you to use only the ones you need. This allows you to reduce clutter for a clean-looking system with improved airflow. The attached ATX cable is fully-sleeved for superior protection. And, all cables are extra long to support full-tower PC systems.
  • newegg ATX12V v2.31 and EPS 2.92 Compatible Supporting the latest ATX12V v2.31 and EPS12V v2.92 standards and backward compatible with ATX12V v2.2 and ATX12V v2.01 systems, the CORSAIR Enthusiast Series TX550M provides maximum power stability to drive the processors as well as other components for desktop and server computer systems.
  • newegg 550W Continuous Power with Single +12v Output Enthusiast Series Modular is designed for reliable operation in high-performance PCs where clean, stable power is important. It’s rated for full, continuous 550w power delivery at an ambient temperature of up to 50° Celsius. Robust and dedicated single +12V rail design providing up to 45A ensures the maximum provision of 12V power to energy-hungry components such as CPU and VGA card.
  • newegg 80 PLUS Bronze Certification for Smart, Efficient Power Delivery 80 PLUS Bronze is your guarantee that your Enthusiast Series Modular power supply will deliver 85% efficiency or higher at 50% load. Superior efficiency is essential in a high performance power supply — it runs quieter, generates minimal excess heat, and saves you money every month.
  • newegg Ready to Take the Heat The ultra-quiet, 140mm double ball-bearing fan delivers excellent airflow with exceptionally low noise levels by varying fan speed in response to temperature.
  • newegg Critical Protection for Your Components Adherence to exacting performance standards for voltage regulation helps protect your high-performance gear. Exceptionally clean power output with low ripple and noise and multiple protection mechanisms gives you the confidence you need.


Learn more about the Corsair TX550M

Model

Brand
CORSAIR
Model
TX550M
Series
Enthusiast Series

Spec

Type
ATX12V v2.31 / EPS12V v2.92
Maximum Power
550W
Fans
1 x double ball-bearing
Main Connector
24Pin
+12V Rails
Single
PCI-Express Connector
2 x 6+2-Pin
SATA Power Connector
6
Modular
Semi Modular
Efficiency
up to 85%
Energy-Efficient
80 PLUS BRONZE Certified
Over Voltage Protection
Yes
Input Voltage
90 - 264 V
Output
+3.3V@25A, +5V@25A, +12V@45A, -12V@0.8A, +5VSB@3A
MTBF
>100,000 Hours
Approvals
UL, CUL, CE, CB, FCC Class B, TÜV, CCC, RCM
Dimensions
5.9"(W) x 3.4"(H) x 6.3"(L)
Weight
5.47 lbs

Features

Connectors
1 x Main connector (24Pin)
1 x 4+4-Pin 12V CPU
8 x Peripheral
6 x SATA
2 x Floppy
2 x PCI-E
Features
The latest ATX12V v2.31 and EPS 2.92 standards and it is backward compatible with ATX12V 2.2 and ATX12V 2.01 systems.

An ultra-quiet double ball-bearing fan delivers excellent airflow at an exceptionally low noise level by varying fan speed in response to temperature.

80PLUS Bronze certified, delivering up to 85% energy efficiency at real world load conditions.

Universal AC input from 90~264V. No more hassle of flipping that tiny red switch to select the voltage input!

A dedicated single +12V rail offers maximum compatibility with the latest components.

Over-voltage and over-current protection, under-voltage protection, and short circuit protection provide maximum safety to your critical system components.

Quick Info

Warranty

  • Limited Warranty period (parts): 5 years
  • Limited Warranty period (labor): 5 years


Customer Reviews of the Corsair TX550M

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Nicholas R.
  • 9/17/2014 5:54:31 PM
  • Tech Level: High
  • Ownership: more than 1 year

1 out of 5 eggsWhat a headache

Pros: Look of unit, "brand name" ?

Cons: The plastic of the sata power connectors is so thin that any pressure against them will make them snap and incapable of staying in place. My particular unit was semi modular but whenever I tried to supplement the broken sata connectors with a modular one, the system would not boot. Tried multiple cables to ensure I just didn't have a bad cable. Ultimately the common denominator of all the issues was this PSU... but it managed to put two mother boards and a graphics card into an early grave before I put this PSU into the trash next to bags of used cat litter where it belongs.

Other Thoughts: Got two years out of this thing... a year ago when I tried to add in a 2nd hard drive is when I snapped two sata power connectors with the tiniest bit of force... I should have chucked this PSU then when the thing would not boot using a modular cable.... what made me think I could sneak a new graphics card into this build (card required a 450 watt) is beyond me, and the fact that I subjected not one but two motherboards and a brand new GPU to the abuse of this PSU ... well shame on me.

Did you find this review helpful? Yes No

  • Robert S.
  • 3/20/2012 6:27:52 AM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

1 out of 5 eggsVery Disappointed

Pros: Fit, looks nice

Cons: Unit died after only 3 hours of use. Fan never came on. Definitely stay away. Wish I'd taken other's advice here and stayed away and saved time by having to replace the unit now.

0 out of 1 people found this review helpful. Did you? Yes No

  • Gary S.
  • 12/13/2011 4:04:43 PM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

1 out of 5 eggsVery disappointed

Pros: In the past, I had good experiences with two Corsair TX650w power supplies (circa 2007).

Cons: After a succesful intial POST, and assembly, I never noticed the Power supply fan never worked on this unit. I continued on, completeing a nice Win7 box; but wait, I'm reading a high MB temp..., and geez, look at that, I guess that new Corsair PSU sure was silent. It's fan never came on. Never in its two hour life. I've rebooted it a few more times, it does not move at any temp. Unacceptable Quality Control. Every PSU s/b tested.

Other Thoughts: So...if the fan is not connected or is faulty, what does that say about their QC department, and what of the capacitors and other important components being used? There is no way shipping breaks a heavy duty PSU fan like this. I've probably purchased 50 power supplies in the past 25 years; this is the first time I've had a problem with one. I also read 11.9V at a <2amp load for the big 45amp 12V rail.

Manufacturer Response:

We're sorry you had an issue with the PSU. Unfortunately, PSUs sometimes fail even after our QC efforts which is why we offer a warranty. Please start an RMA for a replacement.

1 out of 8 people found this review helpful. Did you? Yes No

  • Chris N.
  • 12/4/2011 10:51:37 AM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsGreat Little Guy

Pros: No problems with supplying the correct amount of power.
All the cords were the correct lengths.

Cons: I only have a few minor issues but nothing major at all. The power cord going into the PSU has a bit of resistance. There is also a little bit of capacitor noise when the computer is off or sleeping.

Other Thoughts: Overall this is another great corsair PSU.

3 out of 4 people found this review helpful. Did you? Yes No

  • Presley H.
  • 11/17/2011 7:07:28 AM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

2 out of 5 eggsFan make a loud clicking noise

Pros: It works.

Cons: Well for some reason when I first installed it did not cut on. Then I figured loose power switch connector, then it worked. Heard very loud click noise from psu fan. Took build into another room( wife didn't like thing sitting in kitchen) once upstairs in office. Didn't power up. Thought loose power switch but not the case this time. This time power cord was not in tight enough, I guess. Well the fan is very loud I mean my wife is like what is that noise... Look I don't want to be in divorce court over this PSU, so I am going to return it... oh well life goes on

Other Thoughts: I really like my new build now I have to break it down and return the PSU... and I don't have a back up.

1 out of 10 people found this review helpful. Did you? Yes No

  • Osgood B.
  • 11/13/2011 7:52:28 AM
  • Tech Level: High
  • Ownership: 1 month to 1 year

1 out of 5 eggsPoor Quality Control

Pros: Worked well initially - nice looking.

Cons: Lasted less than one year. Was in a very undemanding build that needed nowhere near 550w - still did not supply stable power and caused problems that took some while to sort out - mainly because I assumed that the Corsair PSU could not be the problem - silly me!

Other Thoughts: Replace the Corsair PSU with an old G*****y PSU that I'd replaced years ago - and the system worked fine thereafter.

Manufacturer Response:

We're sorry you had an issue with your PSU. Please RMA it and we'll replace it for you.

0 out of 9 people found this review helpful. Did you? Yes No
