Item#: N82E16817152042

RAIDMAX Blackstone series RX-700AC 700W Continuous Power ATX12V V2.3 / EPS12V V2.91 80 PLUS BRONZE Certified Modular Active PFC Power Supply

  • ATX12V V2.3 / EPS12V V2.91
  • Modular
  • 80 PLUS BRONZE Certified
  • 100 - 240 V
  • Pin It
  • Email this page
ICON Loading...


The RAIDMAX Blackstone Series RX-700AC is a high quality, highly efficient power supply with durable black satin finish. It combines 700 watts of stable and quiet power, dual independent +12V rails with 80 PLUS Bronze efficiency. Factor in the ultra-quiet 135mm blue LED fan and modularized cable design, the RX-700AC blasts ahead of the competition at an amazingly competitive price.





  • newegg 80 Plus BRONZE Certified The 80 PLUS BRONZE certified power supply provides high power efficiency of at least 82% at any load between 20% and 100%, saving you money on your electrical bill, reducing heat in your computer's system and prolonging its life.
  • newegg 700W Continuous Power The RAIDMAX RX-700AC features dual +12V rails each capable of delivering 23A to output unbeatably stable power to feed the latest multi-core CPUs and high-end graphics cards.

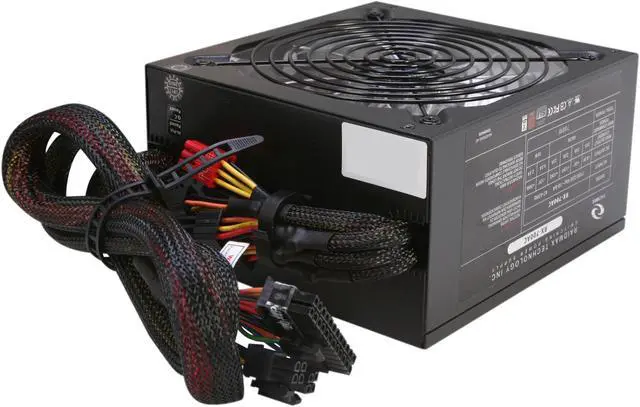

  • newegg Modular Cable Design The modular cable design allows use of only the cables you need resulting in improved internal airflow and reduced system clutter.

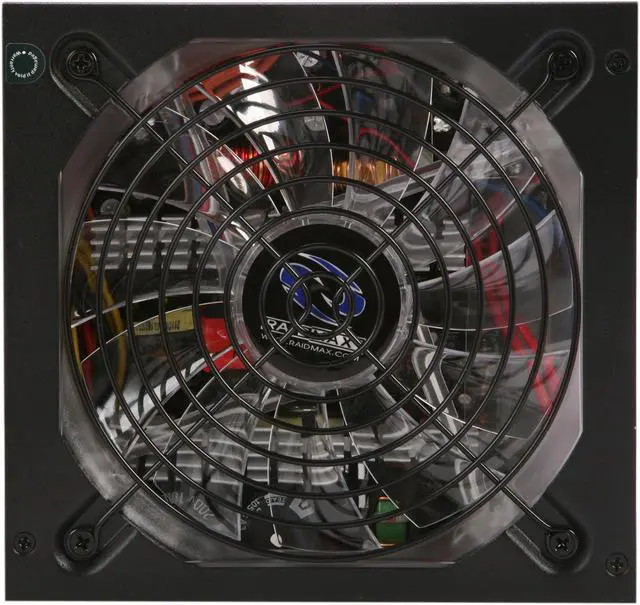

  • newegg High Thermal Performance, Quiet 120mm Fan The internal 135mm blue LED fan maximizes the airflow and guarantees silent operation.
  • newegg Ready for Multi-GPUs 2 x PCI-E connectors are included to fully support a high-end graphics card. The power supply is also ready for NVIDIA SLI or AMD CrossFireX setups due to its modular design.

Learn more about the Raidmax RX-700AC

Model

Brand
RAIDMAX
Model
RX-700AC
Series
Blackstone series

Spec

Type
ATX12V V2.3 / EPS12V V2.91
Maximum Power
700W Continuous Power
Fans
1 x 135mm Blue LED fan
PFC
Active
Main Connector
20+4Pin
+12V Rails
2
PCI-Express Connector
1 x 6-Pin, 1 x 6+2-Pin
SATA Power Connector
4
SLI
No
CrossFire
No
Modular
Modular
Energy-Efficient
80 PLUS BRONZE Certified
Input Voltage
100 - 240 V
Input Frequency Range
47 - 63 Hz
Output

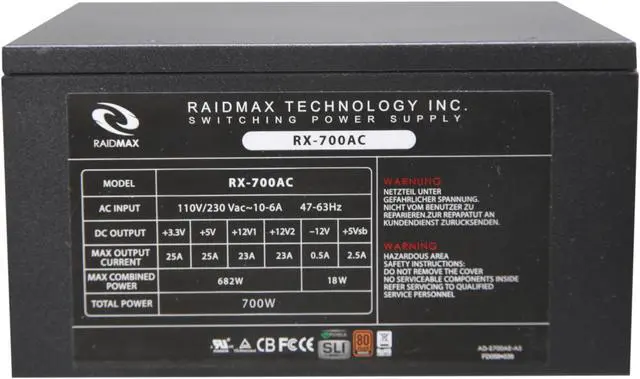

+3.3V@25A, +5V@25A, +12V1@23A, +12V2@23A, -12V@0.5A, +5VSB@2.5A
Approvals
UL, CUL, FCC, TUV, CE
Dimensions
6" x 3.5" x 6.25"

Features

Connectors

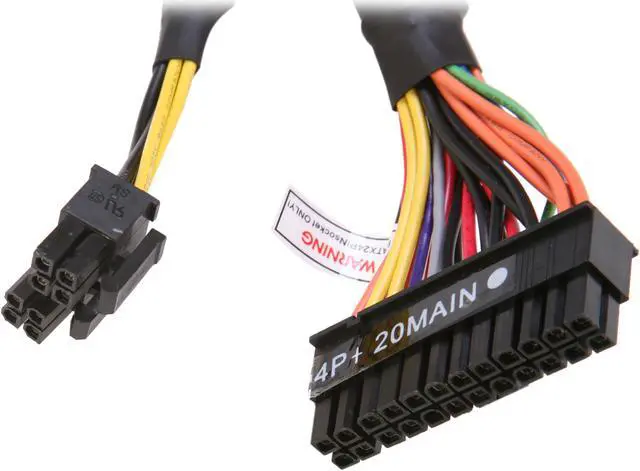

1 x 20+4 pins Main Connector
1 x 4+4 pins ATX 12V/EPS 12V Connector
2 x 6+2 pins PCI-E Connectors
6 x 5 pins SATA Connectors
3 x 4 pins Peripheral Connector
1 x 4 pins Floppy Connector
Features
New Version with Build-in LED fan on/off switch

Dual 12V output circuits provide added system stability

Durable black stain finish

Hexflo honey comb cutouts for maximum airflow

High grade black mesh wrapped cabling

Dimensions & Weight

Dimensions
9.2" x 3.8" x 9"

Manufacturer Warranty

Parts
2 years limited
Labor
2 years limited

Quick Info

Warranty

  • Limited Warranty period (parts): 2 years
  • Limited Warranty period (labor): 2 years


Customer Reviews of the Raidmax RX-700AC

Do you own this product? Write a Review

Filter Results

Go
  • AnamorphicDawn
  • 5/22/2013 3:53:58 PM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

4 out of 5 eggsIFFY A-- FAN!! other than that great unit.

Pros: Great Power Supply LOVE'IN IT!!!

Cons: my fan for the power supply unit decide to stop work but if i manually spin it or touch after the power supply is on it starts spinning i dont know if its a flaw but it happen to me

Did you find this review helpful? Yes No

  • Eryxx
  • 5/22/2013 9:11:44 AM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

4 out of 5 eggsSufficient for many uses

Pros: 80+ Bronze means it won't sock your power bill as hard even when it's not being fully utilized.

Semi-modular cabling reduces case-clutter to only what is needed, no additional wiring to tie-back or otherwise fool with.

Nice blue LED casts a solid-blue glow within the case (if fan is mounted toward the interior) and through the exhaust vent to any surfaces behind.

LED can be turned off, if so desired.

135mm fan is very quiet, so far it has not been heard over the CPU/GPU/case coolers.

Includes a floppy-drive power connector, just in case you still need one.

Easy to install and connect, cable leads are clearly labeled.

Cons: Only has two (2) 12V 23A rails (a total of 46A) which will probably work for most single-GPU applications. However, since the 2nd 12V rail is most likely also used for all HDDs, optical drives, SSDs and any supplemental case fans/lighting, there may not be enough amperage on that rail for another GPU. Anyone wanting to use this for SLI/Crossfire needs to take this into consideration before buying. Other comparable units often supply 10 (or more) amps than this device. Again, for a single-GPU, this unit should be sufficient.

Only one dedicated dual-connector for PCIe, with two 6+2-pin connectors since most newer GPUs have either two 6-pin or a 6-pin/8-pin power setup. Unless you're running two older GPUs with only one 6-pin or 8-pin connector each, you'll need to connect your second GPU using Molex adapters, which are not even included. In this configuration, also refer to the previous Con above. Only one included dual-PCIe connector is almost a tacit acknowledgement from the manufacturer that this unit is primarily intended for single-GPU applications.

Manufacturer's rebate is required to realize the full savings and value of this device (at this time.) A casual poll of buyers of various products reveals they'd most often rather save 1/2 of the offered rebate amount upfront off the purchase price, than have to jump through hoops and wait 8-12 weeks for the entire amount. Also, almost all feel advertising an item at the post-rebate price is deceptive, since the initial payment price is higher than that listed. In a nutshell, customers hate rebates!

Other Thoughts: After a few weeks, this seems like a solid unit for running a single-GPU gaming rig, but only time will tell if this device will hold-up in the long run.

Had the total purchase price for this PSU been any higher, I would have had to deduct 2-Eggs, but for a single-GPU application this is a pretty good value at this price-point.

The PSU that was previously in the same rig (not a RAIDMAX product) blew overnight quite unexpectedly and took out the entire motherboard with it. There were no odors, performance issues or any other indications of trouble, the system simply went into Sleep mode one evening and never woke up again; quite odd, indeed. Thankfully the CPU, RAM and HSF were all salvageable, so the repairs were limited to a new motherboard and this PSU (plus the requisite 10+ hours reloading the OS and all software since the new chipset was an upgrade.) I include this only as a warning to others, as the failed PSU was a bargain model, but ended up costing quite a bit more than what was initially saved. The failed PSU had been in service steadily for ~2 years, but still should not have failed nearly so quickly nor suddenly. TLDR: You still get what you pay for.

Did you find this review helpful? Yes No

  • edjr4
  • 5/13/2013 9:25:32 PM
  • Tech Level: Average
  • Ownership: 1 week to 1 month
  • Verified Owner

3 out of 5 eggs

Pros: 700 watts of power for less than a hundred dollars i was sold.....

Cons: amperage is so low i dont know why there even is an sli option you cant support one GTX 660 on this thing because of the amperage, RMA'd

Other Thoughts: it wouldnt be so bad if you needed lots of wattage and your only using a 650(or radeon equivilant).

Did you find this review helpful? Yes No

  • N/A
  • 5/10/2013 9:53:03 AM
  • Tech Level: Average
  • Ownership: 1 month to 1 year
  • Verified Owner

4 out of 5 eggsGood service, works well

Pros: Power supply worked fine for a while (~8 months). The replacement power supply, however, was sent promptly after RAIDMAX received the defective power supply.

Cons: Power supply failure. After about 8 months, computer had trouble turning on a couple timesbefore the power supply finally failed.

Did you find this review helpful? Yes No

  • N/A
  • 5/2/2013 6:19:33 AM
  • Tech Level: Average
  • Ownership: 1 day to 1 week
  • Verified Owner

1 out of 5 eggsRMA

Pros: Cheap, Runs good. Cooled

Cons: Blew after a day of use on no load.

Did you find this review helpful? Yes No

  • Michael
  • 4/20/2013 6:21:51 PM
  • Tech Level: Somewhat Low
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggsRaidmax Blackstone 700w

Pros: This was a great choice for me, i put together my first pc with this. Managing the cable mess was my biggest concern so i fed all the cables through out the case before finally attaching them to the psu and bolting it in. It was very easy to manipulate the cables that way and the end result was a very clean and pro looking case. The psu itself has run strong and with out issue for over a year now with constant use.

Cons: None.

Other Thoughts: Thank you Paul, and Newegg TV for your 3 part how to build a PC video. I will never buy prebuilt again.

The setup this has been running for over a year.

AMD FX-4100
BIOSTAR TA990FXE
RADEON HD 6850
8 GB (2x4) ddr3 1600
WD 7200 rpm HD
Lite-on dvd burner
Raidmax Helios ( 4 stock fans only)

Did you find this review helpful? Yes No

  • N/A
  • 4/20/2013 10:18:29 AM
  • Tech Level: Average
  • Ownership: 1 day to 1 week
  • Verified Owner

3 out of 5 eggsOkay Power Supply

Pros: Cheap and good wattage.
Looks cool, and having the partial modular cords are awesome.

Cons: Got the power supply and hooked up my computer and it wouldn't power up. After un wiring it and wiring it, I discovered that the cord that plugs into the wall was faulty. Had to go out and buy a new one.

Did you find this review helpful? Yes No

  • N/A
  • 4/13/2013 9:08:32 AM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month

5 out of 5 eggsImportant notes

Pros: Semi-Modular design and seven hundred watt output is great for this price range.

Cons: None at all.

Other Thoughts: This will be my second of these, my first was from a different site but now that newegg has placed this on sale I'll be buying from here VERY IMPORTANT NOTE: The blue LED on this psu CAN BE TURNED OFF with a simple push-button on the back. I actually found myself laughing at the other comments that had not discovered the big red button....

Did you find this review helpful? Yes No

  • N/A
  • 4/12/2013 7:23:00 PM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

4 out of 5 eggsSemi-Modular

Pros: Cables are lengthy. Quiet.

Cons: Not full modular.
P4 port doesn't deliver enough power for a OCed FX8350.
Power cable is loose.

Other Thoughts: It provides enough power but not outstanding.

Did you find this review helpful? Yes No

  • little bee
  • 4/12/2013 6:13:37 PM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsRMA is good

Pros: Plug and play.

Cons: This is the RMA replacement I got. The original one for some reason sucked really bad. Tried everything, but this one seems legit.

Other Thoughts: Along with the jumper issue, this board might have some short circuit issue. Might, not approved.

Did you find this review helpful? Yes No
