Item#: N82E16817153134

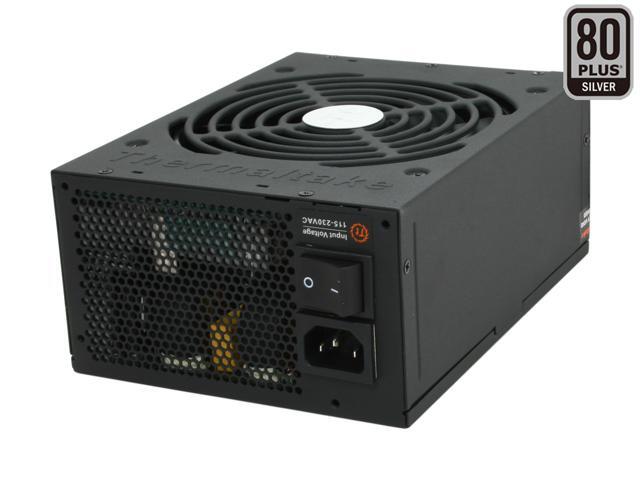

Thermaltake Toughpower TP-1350M 1350W ATX 12V v2.3 / EPS 12V v2.91 SLI Ready CrossFire Ready 80 PLUS SILVER Certified Modular Active PFC Power Supply

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • ATX 12V v2.3 / EPS 12V v2.91
  • Modular
  • 80 PLUS SILVER Certified
  • 115 / 230 V 50/60 Hz
  • +3.3V@25A, +5V@25A, +12V1@60A, +12V2@60A, -12V@0.8A, +5VSB@3.5A
  • ATX12V & EPS12V Power Supply
  • 110 V AC 220 V AC
  • RoHS WEEE ENERGY STAR 80 Plus Silver

LOADING... LOADING...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

The Thermaltake Toughpower TP-1350M is a high-end power supply unit designed to perform at a high efficiency rate, ideal for advanced power users who demand greater cooling and higher power for their systems. The Active Power Factor Corrector (Active PFC) helps the unit to deliver a stable 1350 Watts of continuous output with up to 91% efficiency. Robust and dedicated dual +12V rails(60A for 12V1 & 12V2) design enhances power distribution and provide superior performance for your PC.

The Toughpower TP-1350M is compatible with dual core CPU, quad core CPU, NVIDIA SLI, Quad SLI and ATI CrossFire technologies, with three 6-pin and three 8-pin (downward compatible with 6-pin PCI-E connectors) PCI-E connectors that allow connectivity to multiple graphic cards. Cooling is further boosted with the 14 cm dual ball bearing fan that reduces hot spots, offers excellent heat dissipation, and is extremely silent.

In addition, the Toughpower TP-1350M utilizes industrial grade components with Independent Voltage Circuits for stable and unflappable output, and protection against potential voltage surges. Reliability is ensured with the MTBF of more than 120,000 hours, and it's virtually immune to over voltage, over current, and potential short-circuits.

  • newegg ATX12V and EPS12V Compatible Compatible with the ATX12V v2.3 and EPS12V v2.91 standards, the Thermaltake Toughpower TP-1350M provides maximum power stability to drive the processors as well as other components for desktop and server computer systems.
  • newegg 1350W Maximun Power A maximum power of 1350W delivers safe, reliable output for the most extreme computer systems. A robust and dedicated dual +12V rails ensure the maximum provision of 12V power to energy-hungry components such as CPU and VGA card, minimizing the likelihood of overload shut down.
  • newegg 80 PLUS SILVER Certified The 80 PLUS SILVER certified power supply provides high power efficiency of at least 87% at any load between 20% and 100%, saving your money on your electrical bill, reducing heat in your computer's system and prolonging its life.
  • newegg NVIDIA SLI Certified The Thermaltake Toughpower TP-1350M has gone through a series of rigorous NVIDIA SLI certification tests for maximum system stability when building NVIDIA SLI PCs.
  • newegg Japanese Brand Caps The 105°C Solid state capacitors inside the Thermaltake Toughpower TP-1350M are made from Japanese companies renowned for high durability and long-term reliability.
  • newegg Ultra Silent Operation The Thermaltake Toughpower TP-1350M features a 140mm dual ball bearing fan with intelligent speed control for increased overall airflow and heat dissipation in the power supply enclosure.

Learn more about the Thermaltake TP-1350M

Model

|
Brand
Thermaltake
Model
TP-1350M
Series
Toughpower

Details

|
Type
ATX 12V v2.3 / EPS 12V v2.91
Maximum Power
1350W
Fans
1 x 14cm dual ball bearing Fan, 1900 RPM ±10%
PFC
Active
Main Connector
24Pin
+12V Rails
2
PCI-Express Connector
6 x 6+2-Pin
SATA Power Connector
12
SLI
SLI Ready
CrossFire
CrossFire Ready
Modular
Modular
Power Good Signal
100-500ms
Hold-up Time
16ms min.
Efficiency
85% - 88% efficiency @ 115VAC input
87% - 91 % efficiency @ 230VAC input
Energy-Efficient
80 PLUS SILVER Certified
Over Voltage Protection
Yes
Overload Protection
Yes
Input Voltage
115 / 230 V
Input Frequency Range
50/60 Hz
Input Current
15 A max @ 115 VAC
Output
+3.3V@25A, +5V@25A, +12V1@60A, +12V2@60A, -12V@0.8A, +5VSB@3.5A
MTBF
>120,000 Hours
Approvals
CE, TUV, FCC, UL, CUL, GOST, BSMI
Dimensions
7.87" x 5.91" x 3.39"
Type
ATX12V & EPS12V Power Supply
+12V Rails
2
Modular
Yes
Efficiency
91%
Energy-Efficient
RoHS WEEE ENERGY STAR 80 Plus Silver

Input

|
Input Voltage
110 V AC 220 V AC

Features

|
Connectors
1 x Main connector (24Pin)
1 x 4+4 Pin EPS/ATX 12V
1 x 8 Pin EPS 12V
8 x Peripheral
12 x SATA
1 x Floppy
6 x PCI-E
1 x Peripheral 4pin to PCI-E 8pin adapter
1 x Peripheral 4pin to PCI-E 6pin adapter
Features
Compliance with Intel ATX 12V 2.3 & SSI EPS 12V 2.91 standards

24 / 7 @ 50°C: Guaranteed to deliver 1350W continuous power

80 PLUS Silver certified – with 87-91% efficiency @ 20-100% load under real world load conditions

Double-forward switching circuitry offers low power loss and high reliability

Unparalleled DC to DC converters for 3.3V and 5V outputs to reach high efficiency

Robust and dedicated dual +12V rails(60A for 12V1 & 12V2) design provides superior performance under all types of system loading

High quality 105°C Japanese capacitors: ensure superb performance and reliability

105°C Solid state capacitors: great stability at higher operating temperatures, frequencies and currents

Multi-GPU ready: 8 x PCI-E connectors for PCI-Express graphic cards

Designed to support quad core, Core i7 and Core i5 CPUs

Active Power Factor Correction (PFC) with PF value of 0.99 at 20%, 50% and 100% loading

Ultra-silent operation with intelligent 14cm cooling fan speed control

High reliability: MTBF>120,000 hours

Built-in industry grade protections: Over Current, Over Voltage, Under Voltage, Over power, Over temperature and Short-Circuit protection
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 5 years
  • Limited Warranty period (labor): 5 years
  • Read full details
  • Return Policies
    • Return for refund within: 30 days
    • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Standard Return Policy.
