Question 1

How/why does this connect to the motherboard.  I am looking just to pug the PC into the device?  What am I missing?

Accepted Answer

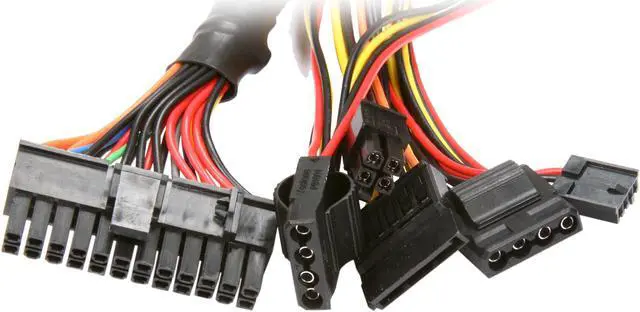

The power supply mounts inside the computer case, on the other side of the power supply is a wiring harness full of connectors that plug into the motherboard and other internal devices.  When you remove the old power supply keep note of where the current connectors were plugged in at.

You should also check the wattage on the current power supply you want to make sure you get at least the same wattage if not more.  More wattage is better it will no overload the system and will put less strain on the power supply.

If this is your first power supply replacement be sure to read up or search for a youtube video on replacing as you don't want to fry your PC by connecting up incorrectly.

Question 2

Hello,

I have a Dell Inspiron 546.  Is this power supply compatible and will it fit the frame?

Thanks,
Sal

Accepted Answer

IF your box is ATX form factor then yes, If not chances it wont fit

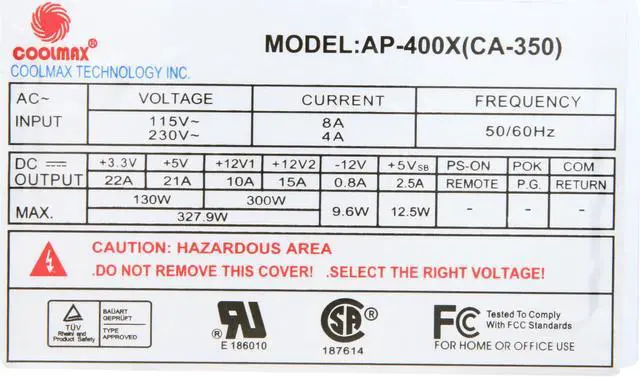

Brand	COOLMAX
Model	CA-350

Type	ATX
Maximum Power	350 W
Fans	1
PFC	No
Main Connector	20Pin
+12V Rails	Single
Over Voltage Protection	Yes
Input Voltage	115 / 230 V
Input Frequency Range	50/60 Hz
Input Current	8A @ 115V, 4A @ 230V

Dimensions	5.60" x 5.90" x 3.30"
Weight	2.99 lbs.

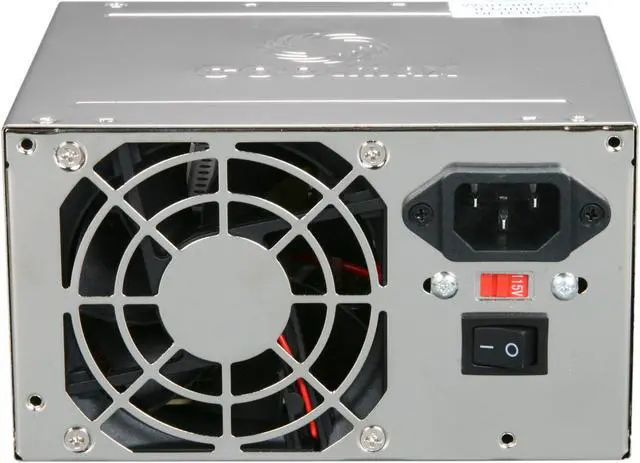

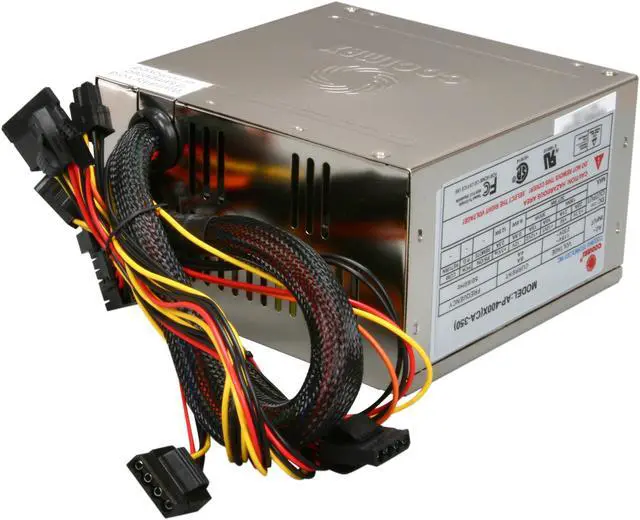

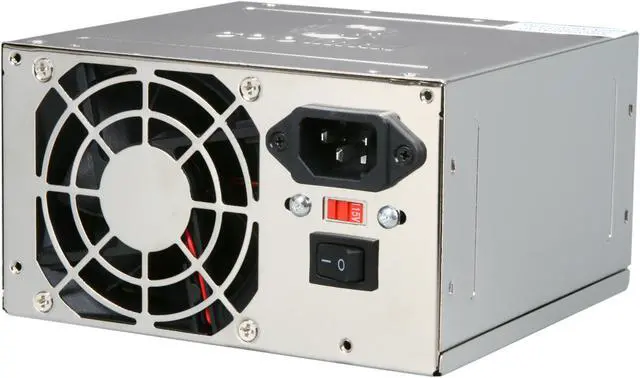

COOLMAX CA-350 350 W ATX Power Supply

Learn more about the CoolMax CA-350

Customer Reviews of the CoolMax CA-350

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Item#: N82E16817159042
