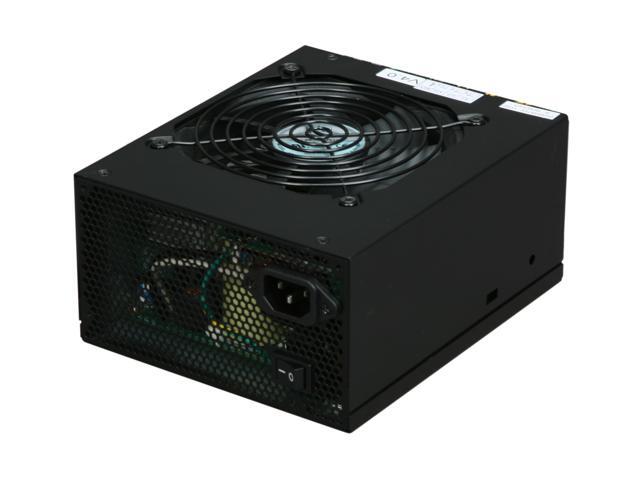

Taking the modular power supply design to the limit, the ST60F combines a core based on the highly acclaimed Zeus ST65ZF and a quiet running 120mm fan to create a truly fantastic package. With the highest number of cables of any power supplies in its class, this 600 watt power supply also has a new environmentally friendly design. SLI ready, it's proofed against the next couple of generations of new system tech,
A 120 mm, sleeve bearing fan ensures effective cooling and noise reduction. It also features Universal Input, which along with ATX12V v2.2 and EPS12V compliancy ensures that you can use it in a variety of situations and almost everywhere, without worrying about input voltages. Your SST-ST60F is designed to last, with its MTBF (Mean Time Before Failure) of 100,000+ hours.
Industrial grade components ensure stable and unflappable output, and protection against power and voltage surges. It comes with one Main connector (20 + 4 pin), one 12V (P4), one 12V (8pin), one Floppy, one AUX power, four peripheral, two PCI-E, and SATA connectors. It also sports four next generation +12V rails (12V1, 12V2, 12V3, 12V4), which allow support for the most high-end of PC systems. This PSU is more than ready to power whatever it finds in your system!
-
- 5
-
- 62%
- 4
-
- 13%
- 3
-
- 7%
- 2
-
- 8%
- 1
-
- 10%
| Product Rating: |

|
| Total Reviews: |
152 |
Watch Your Wiring Connections
- Pros: This is a great modular supply with stable power and is very quiet. It makes it easy to keep a clean wiring job in a pretty new case by only using the connectors you need. All connectors are sleeved (very nice) and the power supply has a great fit and finish. I am generally very finicky, and it meets all my needs very well. It supports my:
Athlon 64 3700+ San Diego
Asus A8N-SLI-Premium
2 gig Corsair XMS
EVGA 7800 GTX w/ ACS
2X WD SE162500KS Raid 0
ABS Stealth ATX Case
- Cons: As previous reviews have said, you need to be extra careful when you use the 4 pin IDE connectors. After reading the previous reviews, I was very faithful and used a DMM to check every pin on the power supply to make sure the voltage was correct. The potential issue is not in the supply or the fact that the modular connectors are assembled incorrectly - but is in the fact that the keying on the plastic molded 4 pin IDE Molex connectors does not prevent them from being plugged in backwards. The result is that you reverse the +5 & +12 volts on your IDE devices. I can attest that DVD burners cannot survive this mistake!!!
- Other Thoughts: With that said, I would still recomend this supply. I would just recommend paying attention to the direction of the 4 pin IDE molex connectors more! This product would have easily been 5 eggs without this issue.
And as always, Newegg service & shipping is the best. Who else could get me a replacement DVD burner in 2 days?! :)
This is a BEAST!!!
- Pros: This is by far the best power supply that I have ever used in a system build(this would be #45). Dont listen to these cty babies that dont know what they are doing this thing puts out contious 600watt and is dead on with the volts, I found very little fluctuation when i tested mine for stability. I love modulat sleeved cables works double time to help system airflow.
- Cons: There are absolutley no cons of any sort with this power supply nothing but excellent things to say. from the sleeved cables to the black screws.
- Other Thoughts: For my system i plugged this into a asus sli premimum with a 3700+ oced to 2.79Ghz with 2gig of ddr550 xms ram with two 7900gts a xfi XM raptor x 150gig 10krpm plextor 18xdvd burner. Dont hesititate every review site i went to came out with positive results make this your final psu purchase for a long time. Enjoy
| Model | ST60F |
| Type | ATX12V / EPS12V |
| Maximum Power | 501 - 600W |
| Fans | 1 |
| PFC | Active |
| Model |
| Brand |
SILVERSTONE |
| Model |
ST60F |
| Spec |
| Type |
ATX12V / EPS12V |
| Maximum Power |
600W |
| Fans |
Single 135mm low noise sleeve bearing fan |
| PFC |
Active |
| Main Connector |
20+4Pin |
| +12V Rails |
2 |
| PCI-Express Connector |
4 x 6-Pin, 1 x 8-Pin |
| SATA Power Connector |
6 |
| SLI |
Ready |
| CrossFire |
Certified |
| Modular |
Yes |
| Efficiency |
80% ~ 85% Efficiency at 20% ~ 100% Loading |
| Energy-Efficient |
80 PLUS BRONZE Certified |
| Over Voltage Protection |
Yes |
| Input Voltage |
90 - 264 V |
| Input Frequency Range |
47 - 63 Hz |
| Output |
+3.3V@25A, +5V@30A, +12V1@32A,
+12V2@32A, -12V@0.5A, +5VSB@3A |
| MTBF |
100,000 hours at 25°C, full load |
| Dimensions |
5.9" x 3.4" x 6.3" |
| Features |
| Connectors |
1 x 24/20-pin motherboard connector. (550mm)
1 x 8/ 4-pin EPS/ATX 12V (750mm)
4 x 6 pin PCI-E (550mm/150mm)
1 x 8 pin PCI-E (550mm)
6 x SATA (500mm/250mm/250mm)
6 x 4pin peripheral and 2 x 4pin floppy (500mm/250mm/250mm/150mm) |
| Manufacturer Warranty |
| Parts |
3 years limited |
| Labor |
3 years limited |
Introduction
Taking the modular power supply design to the limit, the ST60F combines a core based on the highly acclaimed Zeus ST65ZF and a quiet running 120mm fan to create a truly fantastic package. With the highest number of cables of any power supplies in its class, this 600 watt power supply also has a new environmentally friendly design. SLI ready, it's proofed against the next couple of generations of new system tech,
A 120 mm, sleeve bearing fan ensures effective cooling and noise reduction. It also features Universal Input, which along with ATX12V v2.2 and EPS12V compliancy ensures that you can use it in a variety of situations and almost everywhere, without worrying about input voltages. Your SST-ST60F is designed to last, with its MTBF (Mean Time Before Failure) of 100,000+ hours.
Industrial grade components ensure stable and unflappable output, and protection against power and voltage surges. It comes with one Main connector (20 + 4 pin), one 12V (P4), one 12V (8pin), one Floppy, one AUX power, four peripheral, two PCI-E, and SATA connectors. It also sports four next generation +12V rails (12V1, 12V2, 12V3, 12V4), which allow support for the most high-end of PC systems. This PSU is more than ready to power whatever it finds in your system!
Highlights
 |
ATX12V and EPS12V Compatible
Compatible with the ATX12V and EPS12V standards, the SILVERSTONE SST-ST60F provides maximum power stability to drive the latest Intel and AMD processors as well as other components for desktop and entry-level sever computer systems.
|
 |
600W Maximum Power
A maximum power of 600W delivers safe, reliable output for high-end PC systems.
|
 |
Modular Cable Design
The modular cable design allows use of only the cables you need resulting in improved internal airflow and reduced system clutter.
|
 |
Quiet Operation
An intelligent 120mm fan delivers whisper-quiet cooling and ensures quiet operation through fan speed adjustments in response to load conditions.
|
 |
NVIDIA SLI Certified
The SILVERSTONE SST-ST60F has gone through a series of rigorous NVIDIA SLI certification tests for maximum system stability when building NVIDIA SLI PCs.
|
Quick Specs
| Type | ATX12V / EPS12V |
| Maximum Power | 501 - 600W |
| Input Voltage | 90 - 264 V |
| Main Connector | 20+4Pin |
| +12V Rails | 2 |
| Fans | 1 |
| Modular | Yes |
| PFC | Active |
| SLI | Ready |
| Over Voltage Protection | Yes |
|
Reviewed By: Bertman on 12/11/2005
Tech Level: high - Ownership: 1 day to 1 week
