Item#: N82E16817170010

LOGISYS Computer PS550ABK 550Watts ATX12V Power Supply With SATA and 20/24 Pin connectors.

  • ATX12V
  • 100 - 240 V
  • 50/60 Hz
  • Pin It
  • Email this page
ICON Loading...

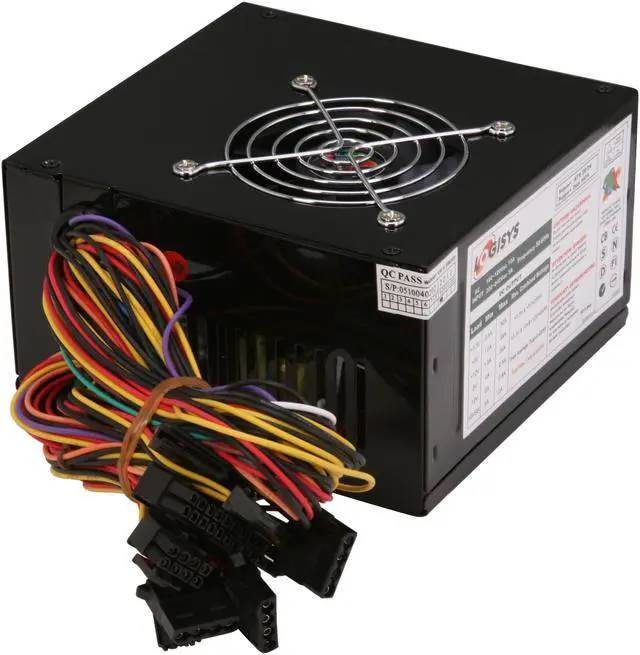

With dual quiet 80MM fans, one on the top and one on the back,the 550W Black Beauty power supply ensures excellent cooling performance. It supplies all components with high quality output with low noise and ripple. The whole body was coated with thick glossy painting for quiet performance. The power supply boast its design with dual 820uF capacities and other necessary components such as resistors of all kinds, which make it a perfect choice for entry level modders and gaming users.

  • newegg 550W Maximum Power The LOGISYS Computer PS550ABK provides maximum 550W power output to all your components.
  • newegg Exceptional Reliability This LOGISYS Computer PS550ABK passes 100% Hi-pot & AND Function testing, and 100% Burn-in test under high ambient temperature (50°c) for superior reliability and stability in harsh environments. Over Power protection and Short Circuit protection delivers maximum safety to your components.

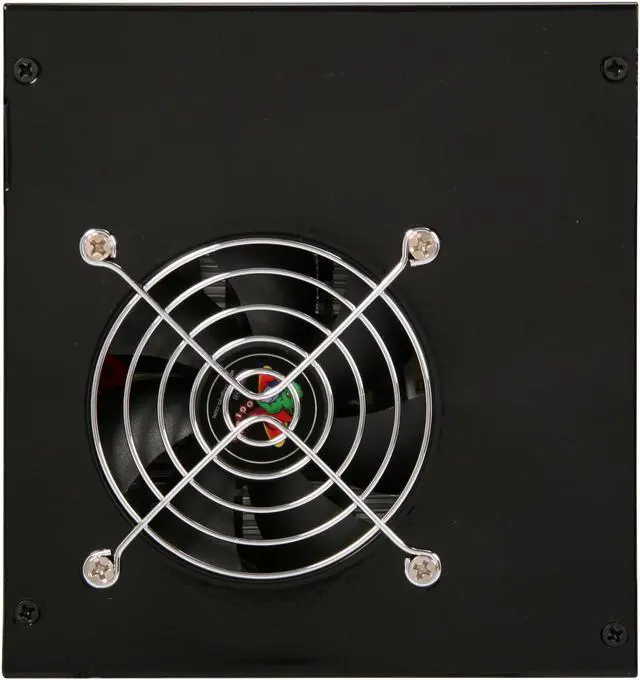

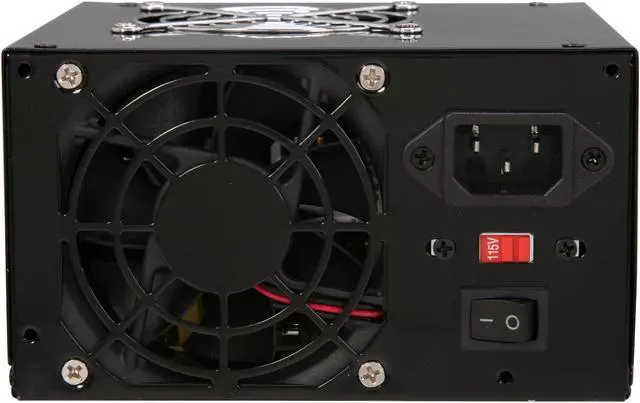

  • newegg Dual Fan Strategically placed two fans deliver efficient yet silent cooling, keeping the PSU running at peak performance.

Learn more about the Logisys Computer PS550ABK

Model

Brand
LOGISYS Computer
Model
PS550ABK

Spec

Type
ATX12V
Maximum Power
550Watts
Fans
2 x 80mm fans
PFC
No
Main Connector
20+4Pin
+12V Rails
Single
PCI-Express Connector
No
SATA Power Connector
2
SLI
No
CrossFire
No
Modular
No
Over Voltage Protection
Yes
Input Voltage
100 - 240 V
Input Frequency Range
50/60 Hz
Input Current
10A @ 115V, 5A @ 230V

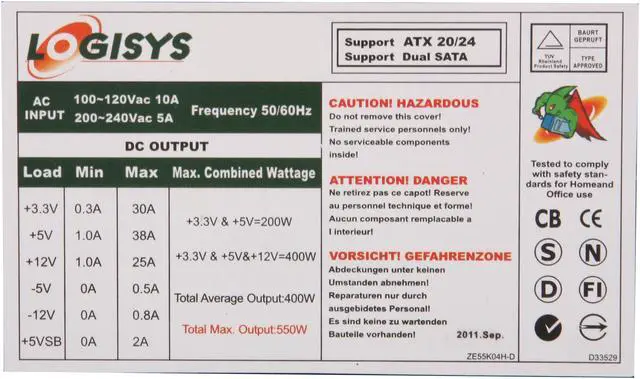

Output
+3.3@30A, +5V@38A, +12@25A, -12V@0.8A, -5@0.5A, +5VSB@2A
MTBF
>100,000 Hours
Dimensions
5.8" X 5.5" X 3.3"

Features

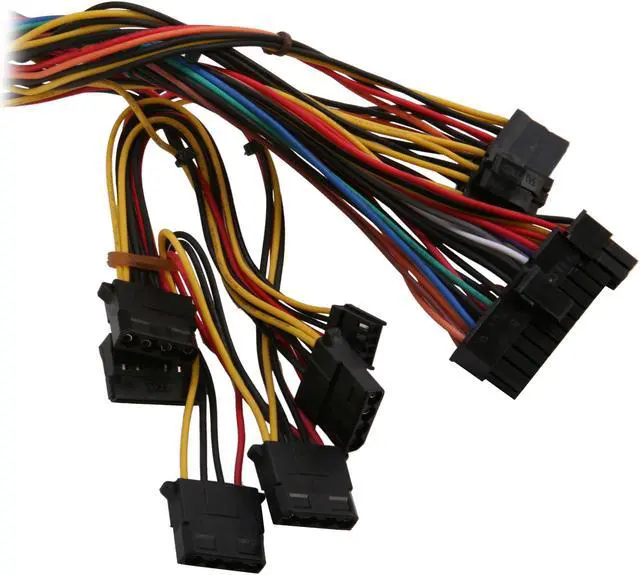

Connectors
1 x Main connector (20+4 pin)
1 x 12V (P4)
4 x peripheral
2 x SATA
1 x Floppy
Features
Complies with FCC part 15J class B 115Vac Operation and CISPR22 230Vac Operation
Meet UL 1950. CSA 22.2 Level 3 Requirement
Over Power protection
Short Circuit Protection
100% Hi-pot & Function (Chroma)tested
100&Burn-in under high Ambient Temperature(50°C)

Dimensions & Weight

Dimensions
3.25" x 6" x 5.5"

Manufacturer Warranty

Parts
1 year limited
Labor
1 year limited

Quick Info

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year


Customer Reviews of the Logisys Computer PS550ABK

Do you own this product? Write a Review

Filter Results

Go
  • N/A
  • 5/17/2013 12:52:33 PM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

1 out of 5 eggsBroken! Twice!

Pros: None!

Cons: Voltages off
Doesn't work

Other Thoughts: Ordered this piece of junk and it got here and my comp would turn off and on. So I knew that it was either a PSU or Mobo issue. So I got out my trusty PSU tester and low and behold the voltages where off! So I sent it back got a new one and it came back and it was messed up as well!!!

Don't buy this! It doesn't matter how cheep it is it won't work.

Did you find this review helpful? Yes No

  • N/A
  • 5/15/2013 12:12:42 PM
  • Tech Level: Somewhat High
  • Ownership: more than 1 year
  • Verified Owner

3 out of 5 eggsBad fans

Pros: Power supply has been reliable with the one noted execption.

Cons: The fans. One of the fans started making noise after about 6 months of use. The noise got to an obscene level. I have alot of extra cooling, so I removed it. The other fan has now started making noise. Not obscene yet, but noticeable.

Did you find this review helpful? Yes No

  • AxEHeaD15
  • 5/14/2013 10:03:39 AM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

3 out of 5 eggsOK, yet terribly inefficient.

Pros: This PSU is a good bargain for sure, it ran my computer fine doing mild gaming on integrated graphics.

The price is fantastic.

Cons: 73% efficiency.

Can't handle a GTX650ti.

Loud.

Other Thoughts: Like I said, if you aren't doing heavy gaming, this PSU will work just fine, but you can't game with it, and it only puts out 400W.

Did you find this review helpful? Yes No

  • N/A
  • 5/6/2013 4:26:48 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

1 out of 5 eggsWhat you would expect.

Pros: Worked long enough for me to get my parts for my new build.

Cons: Voltages are all over the place. Hard drives kept kicking errors due to irregularities.

The fan started making an insane amount of racket after a few months.

Other Thoughts: You get what you pay for. There is a reason it is $30. I got it to throw in a box with some left over parts from old builds. Did the trick. I would never use this in a build with parts I cared about.

Did you find this review helpful? Yes No

  • VX
  • 4/9/2013 10:28:33 PM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year
  • Verified Owner

2 out of 5 eggs Dead after 3 months

Pros: Cheap

Cons: Loud fan
Short life

Other Thoughts: I went through 2 of these in 6 months. Both of them died about 3 months after I bought them.
If you're tight on money and don't have a high end graphics card or CPU, you should probably be okay with it. Otherwise, fork up a little more money for more reliable brand.

Did you find this review helpful? Yes No

  • N/A
  • 3/31/2013 8:41:08 AM
  • Tech Level: Average
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsGotta give this one kudos

Pros: Has been working 9 months when 3 other power supplies quit within a month's time.

Cons: Still working so no complaints.

Other Thoughts: I was trying to fix a computer for a friend of mine who lives in an old house with the screw-in fuses. Her computer was eating power supplies. I was starting to think that her house has serious electricity issues even though she had a decent surge protector. I decided to try one more, and tried this one, been working for 9 months now.

Did you find this review helpful? Yes No

  • J.BlitzAce88
  • 3/21/2013 11:25:28 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

2 out of 5 eggsNot that Reliable

Pros: Inexpensive and high enough watts for mid-range gaming.

Cons: Cheaply made, bearings and/or fan tends to go bad on them. May cause loud noises because of.

Other Thoughts: Decent enough to get by with, but don't put in high-end computers! Not reliably made as compared to higher-end PSU (i.e. Antec, Thermaltake, CoolerMaster, and Corsair).

Did you find this review helpful? Yes No

  • Railgun_Sniper
  • 3/21/2013 8:27:42 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

3 out of 5 eggsIffy, but workable PSU with -5v pinout.

Pros: About the only low priced power supply available for a mini server based on an older MSI board with that dreaded -5v pin on the ATX connector.
And work it does.

Cons: Damaged 4pin molex connector, resulted in constant rebooting when plugged into any internal 4 pint device.
Runs pretty hot. May be a concern if your cooling needs aren't met by your facilty air conditioning system.

Other Thoughts: Aggravated me quite a bit while troubleshooting, and eventually soldered on a different set of connectors and rebuilt the entire output side of the PSU, omitting the use of the damaged connector and adding another half dozen connectors to get to all the hard disks and the other hardware.

Note, you will need something like this to avoid those annoying MSI 'bad cpu' issues during boot (it happens on their higher end old boards if you don't have the -5v pin on there.) I also tested it on an old Intel 810 board for my own curiosity. That CPU also failed to detect with a non -5v PSU. It worked with this one. Word to the wise and to those who absolutely require an older system and can't find a PSU. This one should work, but you may require some hardware skill if things don't work as they should.

** It was on sale for sub 20 bucks when I got it.

Did you find this review helpful? Yes No

  • N/A
  • 3/13/2013 11:42:35 AM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggs

Pros: Nice compact size, cable length works for desktop to mid tower sizes...

Cons: If your looking for a power supply for a full size tower or to power video cards, (in SLI or Crossfire) then this is not for you...

1 out of 1 people found this review helpful. Did you? Yes No

  • maiden504
  • 2/28/2013 12:46:32 PM
  • Tech Level: High
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggsGood Value, Work's Great

Pros: 2 fan's, long cables, plenty of power for everyday Systems

Cons: None

Other Thoughts: I have bought many of these, they always fire up right out of the box

Did you find this review helpful? Yes No
