Item#: N82E16817170018

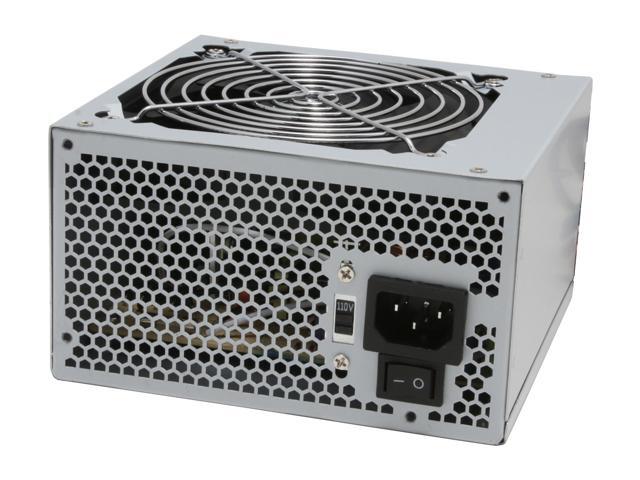

LOGISYS Computer PS480E12 480W ATX12V Power Supply

  • ATX12V
  • 100-120Vac/ 200-240Vac
  • 1 x 120mm Ball bearing fan
  • Pin It
  • Email this page
ICON Loading...

With 120mm ball bearing fan with a 75CFM air flow and 2000RPM speed,this 480W power supply delivers powerful and quiet performance. The power was integrated with dual SATA connectors, four 4-pin molex connectors, one 20pin+4pin ATX connector and one P4 4pin connector. It was made by sturdy Korean made anti-rusty steel to ensure the life time performance. It is 110~220V switchable. With high efficient 470uF 200V capacity, it supplies with steady and clean DC power output.

  • newegg 480W Maximum Power The LOGISYS Computer PS480E12 provides maximum 480W power output to all your components.
  • newegg Exceptional Reliability This LOGISYS Computer PS480E12 passes 100% Hi-pot & AND Function testing, and 100% Burn-in test under high ambient temperature (50°c) for superior reliability and stability in harsh environments. Over Voltage protection, Over Power protection and Short Circuit protection delivers maximum safety to your components.

Learn more about the Logisys Computer PS480E12

Model

Brand
LOGISYS Computer
Model
PS480E12

Spec

Type
ATX12V
Maximum Power
480W
Fans
1 x 120mm Ball bearing fan
PFC
No
Main Connector
20+4Pin
+12V Rails
Single
PCI-Express Connector
No
SATA Power Connector
2
SLI
No
Modular
No
Over Voltage Protection
Yes
Input Voltage
100-120Vac/ 200-240Vac
Input Frequency Range
50/60 Hz
Input Current
10/ 5A
Output
+3.3V@28A, +5V@36A, +12V@16A, -12V@0.8A, +5VSB@2.0A
MTBF
>100,000 Hours
Approvals
cUL, CSA, FCC, CB, CE, TUV

Features

Connectors
1 x Main connector (20+4Pin)
1 x 12V(P4)
4 x peripheral
2 x SATA
1 x Floppy
Features
4 Pin + 12V Power Connector for P4
Complies with FCC part 15J class B 115Vac Operation and CISPR22 230Vac Operation
Meet UL 1950. CSA 22.2 Level 3 Requirement
Over Voltage protection
Over Power protection
Short Circuit Protection
100% Hi-pot AND Function (Chroma) tested
100 Burn-in under high Ambient Temperature(50°C)
Low Noise and Ripple
Energy Star Efficiency

Dimensions & Weight

Dimensions
3.25" x 5.75" x 5.5"

Manufacturer Warranty

Parts
1 year limited
Labor
1 year limited

Quick Info

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year


Customer Reviews of the Logisys Computer PS480E12

Do you own this product? Write a Review

Filter Results

Go
  • N/A
  • 4/27/2013 6:21:38 AM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

3 out of 5 eggsBad fan, decent PSU

Pros: Electrical elements seem to work well. I have this in a mItx Celeron 847 box and it has not blown up.

Cons: Fan started making noise after a couple weeks. Not a big deal for me, swapped it out with spare 120mm and it's right as rain.

Did you find this review helpful? Yes No

  • N/A
  • 4/25/2013 9:03:22 PM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year
  • Verified Owner

2 out of 5 eggsHad better and worse

Pros: It runs.

Cons: Overheats. The cooling setup for it is somewhat ineffective. Likes to shut itself off sometimes. Not intolerable.

Other Thoughts: It's a cheap Power Supply, expect issues.

Did you find this review helpful? Yes No

  • Reid and Company
  • 4/22/2013 8:51:39 PM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

3 out of 5 eggsgreat price poor quality

Pros: price is good
480 watt is respectable for a entry level system
has sata support and 24+4 pin connection

Cons: bad quality
no 4, 6, or 8 pin pci-e power support
comes with thin power cord

Other Thoughts: purchased for a cheap home server build to run in a server closet with proper ventilation... product ran perfect for 3 days and then blew a capacitor (which is a horrible smell btw.) once again newegg stepped in and took the product back with no problems and sent another this way (although I ended up ordering a thermaltake t2 600w because it is a more reputable brand and was built much better). I gave this product the benefit of the doubt and gave it 3 eggs due to newegg's great customer service and for the value of this product as it IS a good value for a budget system that does not need gfx or special raid cards etc...

Did you find this review helpful? Yes No

  • nick
  • 3/12/2013 12:44:49 PM
  • Tech Level: Average
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggsGreat Product

Pros: easy installation, has lasted me 2.5 years without a single issue

Cons: none

Did you find this review helpful? Yes No

  • Ninja1507
  • 2/28/2013 6:19:20 PM
  • Tech Level: High
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggsAMAZING

Pros: - Longevity
- Decent Power
- Price

Basically, I bought this for a secondary system a while ago. I got a new one for that system now and this is now in a media center PC. This PSU is still chugging after years of constant use.

Cons: - None for the price. Its hard to complain about something so cheap.

Other Thoughts: Really, unless you're using this for a gaming build. This will be more than enough for you or your mother/grandparents. Or like me, Use it in a Media box.

1 out of 1 people found this review helpful. Did you? Yes No

  • Peta1p
  • 2/26/2013 8:40:46 PM
  • Tech Level: Average
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsGood Power Supply Unit!

Pros: Large quiet fan with good ventilation. Good length cables. Easy install. Decent power. Much better than original oem unit. Great value.

Cons: None

Other Thoughts: Newegg fast ship with excellent pricing and support is a real plus.

Did you find this review helpful? Yes No

  • Mr. Bluebird
  • 1/13/2013 3:26:10 PM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsGood for the price

Pros: Good device, installs easy and powers devices without an issue.

Cons: Could use a second SATA out, but the use of 4-pin peripheral to SATA cord (not included) remedied things.

Other Thoughts: Ubuntu 12.10, LightScribe DVD+RW Drive, Seagate 7200 RPM drive, Athlon II X4 640, Gigabyte GA-78LMT-USB3, XigmaTek Card Reader, 1 stick of DDR3 1066 RAM. No power issues whatsoever. May handle a lightweight GPU well, not recommended for the big guns.

Did you find this review helpful? Yes No

  • comphoarder
  • 11/6/2012 10:41:33 AM
  • Tech Level: Somewhat High
  • Ownership: more than 1 year
  • Verified Owner

4 out of 5 eggsStill Works

Pros: Still working after almost 4 years of use. The fan isn't loud and it's a great alternative to an old system that doesn't require much power. This is for a basic system and that's about it. You get the life out of a PSU if you know what to expect. Running anything else than the bare components with this PSU will probably cause an early exit for this PSU and your components.

Cons: This is not a true 480 watt psu, so don't think it will power a mid to high end card in today's era. The 5v drops below 3.0v sometimes, but only for a few secs. The specs say's its max 480 watts and 330 watts total, which that 330 watts probably isn't right either. Very light weight which means it doesn't have a lot of components built into it. Wires are short and really meant for a top mounted case.

Other Thoughts: This is a good PSU for an old system that doesn't require much power. Running the bare minimum is probably the only thing this PSU can do. This PSU doesn't have the over surge or under surge protector so you don't wanna use any expensive components with it. If you need a replacement PSU for an old dell or hp system of that nature that uses a 250watt PSU then it is adequate, but adding a video that needs power, I would say look else where.

Did you find this review helpful? Yes No

  • jduck777
  • 10/26/2012 7:35:29 AM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsDoes the job

Pros: Needed to replace a PSU in a custom built computer. This did the job.

Cons: Hopefully will hold up.

Did you find this review helpful? Yes No

  • zyphoid
  • 10/14/2012 11:27:55 AM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

1 out of 5 eggsbrown dumpling

Pros: cheap price

Cons: this little brown dumpling was a waste of time . after 3 weeks intermitent shut down then power rail went out. running on an older hp that was previous 230watt.

Other Thoughts: got a bad one and looks like the line is long for it not even worth returning for new 1.

0 out of 1 people found this review helpful. Did you? Yes No
