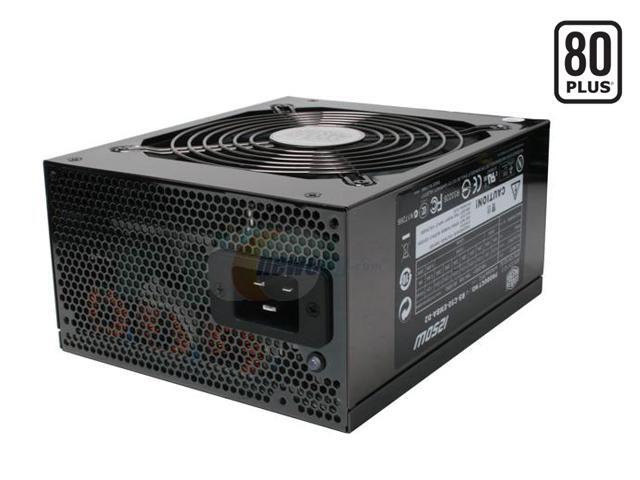

COOLER MASTER Real Power Pro RS-C50-EMBA-D2 1250W ATX Form Factor 12V V2.3 / SSI standard EPS 12V V2.92 SLI Ready CrossFire Ready 80 PLUS Certified Active PFC Power Supply

Sold and Shipped by Newegg

ATX Form Factor 12V V2.3 / SSI standard EPS 12V V2.92
80 PLUS Certified
100 - 240 V 50/60 Hz
+3.3V@40A, +5V@40A, +12V1@20A, +12V2@20A, +12V3@28A, +12V4@28A, +12V5@28A, +12V6@20A, -12V@0.8A, +5VSB@6.0A

Overview
Specifications
Warranty & Returns
Reviews
Q&A

Today’s workstations and gaming PCs require more power to support multiple hard drives, processors and high-end graphics cards. Cooler Master is ready with the solution with their reengineered line of Power Supplies with built-in cooling units.

The Real Power Pro series continues to earn the reputation as one of the most reliable names in high-end PSUs in the 80 Plus Silver Category. In addition to the stable and clean power, the advanced features include Quad GPU compatibility, Quad CPU support, and an 87% efficiency rating. The 1250 ATX delivers up to 1250W of continuous DC power and includes a wide range of sleeved cables for neat management and airflow improvement.

These units deliver higher efficiency with integrated protection circuitry for a more stable and reliable source of power. The intelligent 135mm fan control varies speed for superb heat dissipation with minimum noise. High quality electroplating and compact design make this a must have for the PC gaming enthusiast in your life.

Power for Four! This power supply features Quad GPU and Quad core CPU compatibility which allows this unit to perform in the most high end gaming rigs.
Efficiency and Power Together 1250w of continuous power at 87% efficiency. Enough to power the most advanced hardware with minimal energy waste.
Well-Tailored Sleeves The Cables are sleeved for improved airflow and easy cable management.
Controlled Cooling An Intelligent 135mm fan speed controller is integrated into this unit. The fan is ultra silent and will operate and the correct speeds according to the load on the power supply. This maximizes efficiency and allows the unit to run as quietly as possible.

Learn more about the Cooler Master RS-C50-EMBA-D2

Model

Brand: COOLER MASTER

Model: RS-C50-EMBA-D2

Series: Real Power Pro

Details

Type: ATX Form Factor 12V V2.3 / SSI standard EPS 12V V2.92

Maximum Power: 1250W

Fans: Ultra-silent 135mm fan with intelligent speed control

PFC: Active

Main Connector: 24Pin

+12V Rails: 6

PCI-Express Connector: 4 x 6-Pin, 3 x 8-Pin

SATA Power Connector: 8

SLI: SLI Ready

CrossFire: CrossFire Ready

Power Good Signal: 100-500ms

Hold-up Time: 17ms min.

Efficiency: > 87%

Energy-Efficient: 80 PLUS Certified

Over Voltage Protection: Yes

Overload Protection: Yes

Input Voltage: 100 - 240 V

Input Frequency Range: 50/60 Hz

Input Current: 19A @ 115V, 10A @ 230V

Output: +3.3V@40A, +5V@40A, +12V1@20A, +12V2@20A, +12V3@28A, +12V4@28A, +12V5@28A, +12V6@20A, -12V@0.8A, +5VSB@6.0A

MTBF: >100,000 Hours

Approvals: CE, cUL, TUV, NEMKO, BSMI, FCC/CCC/C-tick

Dimensions: 5.9" x 7.1" x 3.4"

Features

Connectors: 1 x Main connector (24Pin)
1 x 12V(P4)
1 x 12V(8Pin)
7 x peripheral
8 x SATA
2 x Floppy
7 x PCI-E

Features: World's first six +12V rails for better power distribution in Quad-SLI and 2 ways server system
Six 6 pin PCI-e connectors offer great future upgradeability
Three 8 pin PCI-e connectors are compatible with future graphic card upgradeability
Compliance with the newest Intel standard ATX 12V V2.3
Compliance with the newest SSI standard EPS 12V V2.92
Ultra-silent operation with intelligent 135mm fan speed control (< 16dBA)
Eco-design for energy and money saving by Active PFC.(>0.99)/
Power Failure Detector will light up when Over-Voltage,Under-Voltage,
Over-Temperature, Over-Current, Over-Loading, and Short circuit occur
