In today's power hungry world you need a PSU that can deliver and the Rosewill RD500-2DB does. With 500W of total output power there's plenty of juice for the most demanding situations. Dual 12V rails with 31 amps of power provide plenty of independent, reliable power.
As in all cases, being well connected is of major importance, and sprouting from the housing are a multitude of mesh wrapped cables to connect all your components. The mesh wrapping keeps things neat and helps promote better airflow and cooling. Universal motherboard connectivity is ensured with the 20+4 main connector and 4/8 pin EPS connector.
All these are enclosed in a flat black housing with multiple ventilation holes and dual 80mm cooling fans. The smart temperature sensor intelligently adjusts the fan speed according to the system temperature for minimized operation noise. For an added bit of style, the fans are equipped with blue LEDs for an otherworldly look when operating.
Pros: got this powering a overclocked brisbane 4000+ x2 to around a 5200+ x2 (thats 89 watts), soon to be a 7750 kuma, a 8800GS (overclocked pulling 129 watts), my 4830 will be here friday, 3 250 gig WD RE SATA HDD's in RAID0, 2 dvd burners (pulling 80 watts), 4 gigs wintec 800mhz ram (overclocked to 898 pulling 90 watts) 5 80mm fans, 2 120mm fans, 2 cathodes, an alpine cooler 64 pro...and it replaces a thermal**** tr2 430 errr i mean 350 watt power supply..i can tell a huge difference..load times are quicker, everything is running cooler, everything is Uber stable and i got plenty of room to grow on...plus the lights are great and go with all the blue in my pc..oh..and its cold as ice..ill post a hard copy of my rails in other thoughts
Cons: no cons here, this thing is HEAVY, so thats always a good thing, the wires are kinda odd, they have a yellowish gold stripe that throws off the colors in my pc, but then again, they got a different look to them and they glow under a uv, so i guess thats a nice touch by rosewill...which has the best customer service since newegg
Other Thoughts: Temperatures
Motherboard 28 °C (82 °F) CPU 32 °C (90 °F) CPU #1 / Core #1 15 °C (59 °F) CPU #1 / Core #2 11 °C (52 °F) MCP 50 °C (122 °F) Aux 32 °C (90 °F) GPU 51 °C (124 °F) GPU Memory 42 °C (108 °F) GPU Ambient 33 °C (91 °F) WDC WD2500YD-01NVB1 35 °C (95 °F)
Cooling Fans
CPU 2136 RPM Chassis 1688 RPM
Voltage Values
CPU Core 1.31 V +3.3 V 3.30 V +5 V 4.92 V +12 V 12.14 V +5 V Standby 4.87 V GPU Vcc 3.28 V
all from everest ultimate right now, my thermalspank would plunctuate between 12.04 - 11.88, this thing goes between 12.09 - 12.14...which i know its best to have 1%
22 out of 23 people found this review helpful.
Did you?
Thanks for the valuable feedback you provided!
Best PSU in it's class.
Reviewed By: DARIN C. HUDSON on 1/29/2009
Tech Level: high - Ownership: 1 week to 1 month
This user purchased this item from Newegg
Pros: Looks amazing...black box with black sleeved cables that are striped yellow, they glow in the dark under black light. Blue led on both fans. The best feature besides the (2) 12v rails w/500 watts, is the length and quantity of the cables, they are plenty long to reach the lower bay drives and MB connections, especially if you have a full ATX size MB like my ECS A780GM-A I bought here at the egg. In fact, the colors on the board - black, yellow, orange match the PSU's cable colors-very nice combo. I looked at ALOT of PSU's before choosing this one and so far I could not be happier.
I ordered Wed. morning arrived Thurs afternoon...how the heck do they do that? AMAZING!
Shipping has always been great at the egg, it does depend on what state you live though. If you live in Cali like me and all the items on your order are in stock at one of their Cali distribution centers then it has always been next day...love it!
Cons: None...NEWEGG IS THE BEST E-COMMERCE SITE/SERVICE, PERIOD. Have only bought else where or local if I needed something right away and the egg was out of stock.
Other Thoughts: Stone Temple Pilots and Scott Weiland rule the earth...
16 out of 16 people found this review helpful.
Did you?
Pros: Cables are well wrapped, great quality, lights are cool.
Cons: Not modular, runs a little loud and hot.
Other Thoughts: This PSU performs great, it arrived in a nice box and was ready to go. It runs a little loud, but that's because it has two fans instead of just one. It runs warms though. I gripe about the cables not being modular but the cables are well wrapped for good airflow.
Did you find this review helpful?
Thanks for the valuable feedback you provided!
Rosewill Stallion Series RD500-2DB 500W ATX12V Power Supply - Retail
Reviewed By: on 11/15/2009
Tech Level: high - Ownership: 1 month to 1 year
This user purchased this item from Newegg
Pros: Cheap; blue light looks cool; works as expected
Cons: The power connector on the PSU sticks out, so it didn't fit exactly with my case, had to bend a small piece of metal on my case to fit this PSU.
Did you find this review helpful?
Thanks for the valuable feedback you provided!
Gamer?
Reviewed By: JonnyQuattro on 10/28/2009
Tech Level: high - Ownership: 1 month to 1 year
This user purchased this item from Newegg
Pros: Power supply runs great easily cleaned stays blue
Cons: if you're looking to buy a gaming pc at this point go for a better one.
Other Thoughts: good power supply. Just no use for it its a 500W doesn't hold up anymore

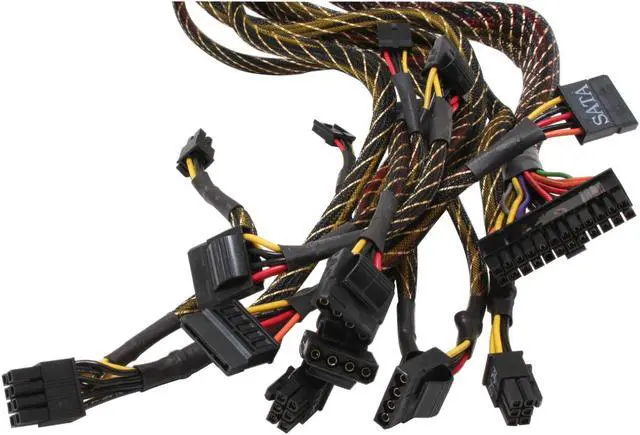

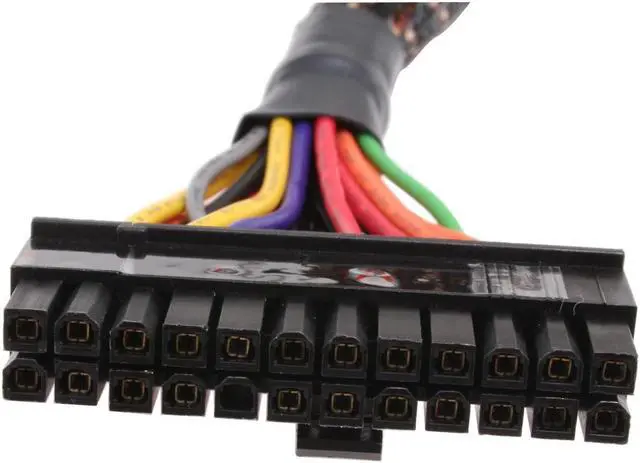

1 x 20+4Pin Main Connector 1 x 4Pin ATX12V Connector 1 x 8Pin EPS12V Connector 2 x 6Pin PCI-Express Connector 2 x 4Pin Peripheral Connector (Quick-release) 4 x 5Pin SATA Connector 1 x 4Pin Floppy Connector
Features
Supports both Intel and AMD Systems Dual 12V rails provide independent reliable power Dual 80mm 2 ball-bearing Fans with Smart Temperature Sensor 20+4 pin main connector for universal motherboard compatibility Mesh sleeving on all cables for easier cable routing and better ventilation Built-in inrush current, over temperature/current/voltage protection circuits Safety & EMI Approval: CSA, UL, TUV, FCC
Unit Weight: 5.2 lbs.
Introduction
In today's power hungry world you need a PSU that can deliver and the Rosewill RD500-2DB does. With 500W of total output power there's plenty of juice for the most demanding situations. Dual 12V rails with 31 amps of power provide plenty of independent, reliable power.
As in all cases, being well connected is of major importance, and sprouting from the housing are a multitude of mesh wrapped cables to connect all your components. The mesh wrapping keeps things neat and helps promote better airflow and cooling. Universal motherboard connectivity is ensured with the 20+4 main connector and 4/8 pin EPS connector.

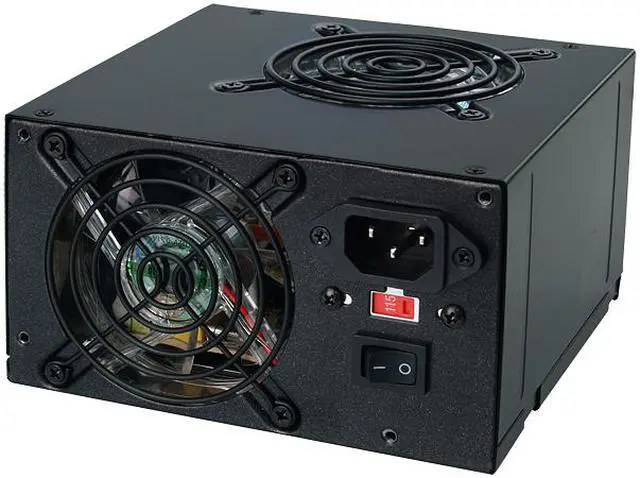

All these are enclosed in a flat black housing with multiple ventilation holes and dual 80mm cooling fans. The smart temperature sensor intelligently adjusts the fan speed according to the system temperature for minimized operation noise. For an added bit of style, the fans are equipped with blue LEDs for an otherworldly look when operating.
Highlights
ATX12V v2.2 Compatible Compatible with the ATX12V v2.2 standard, thee Rosewill RD500-2-DB power supply provides maximum power stability to drive the processors as well as other system components.
500W Maximum Power A maximum power of 500W delivers safe, reliable output for average gaming computer systems. Two industry-leading independent +12v rails are provided for more stable and safer power output.

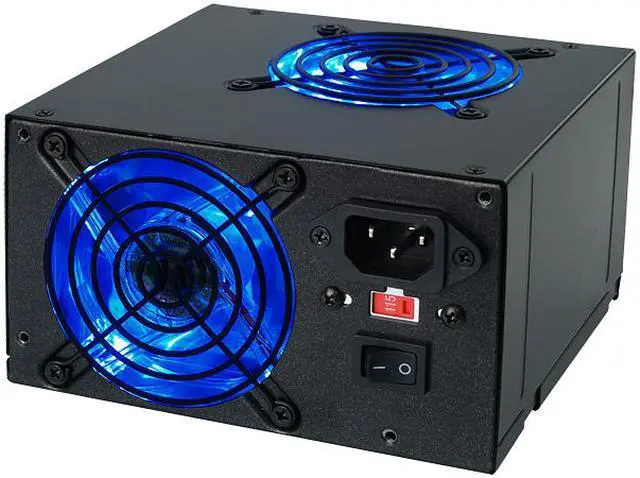

Quiet Operation Dual 80mm blue LED fans with Smart Temperature Sensor delivers whisper-quiet cooling through fan speed adjustments in response to load conditions.
Excellent Mesh Cable Sleeving The Rosewill RD500-2-DB power supply’s cables are wrapped in mesh sleeving so your chassis stays neat for optimized air flow and enhanced cooling.
Reviewed By: Jody B on 3/4/2009
Tech Level: high - Ownership: 1 day to 1 week
