Manufacturer Warranty
Beyond any applicable Newegg return policy, this item is warranted independently by the product's Manufacturer. Below is a summary provided for convenience only and may not be accurate or current.
Use this link for full details.
- Manufacturer Limited Warranty period (parts): 2 years
- Manufacturer Limited Warranty period (labor): 2 years
Manufacturer Contact Info
Return Policies
This item is covered by Newegg.com's Standard Return Policy.
- Return for refund within: 30 days
- Return for replacement within: 30 days
- Restocking Fee: Yes
|
-
- 5
-
- 70%
- 4
-
- 7%
- 3
-
- 3%
- 2
-
- 5%
- 1
-
- 15%
| Product Rating: |

|
| Total Reviews: |
128 |
Straightforward power supply
- Pros: Simple, straightforward power supply, no LEDs, gimicky fans or other "bling" type stuff. Read the detailed specs and ratings for yourself, but it has 630W continous rating for reliable steady power (600 W/50 A on the +12's) and 80 PLUS certification green energy efficiency and cost savings. Power cables were plenty long enough for me, and netted to help keep things clean and neat. Solid feel to the whole build.
- Cons: None so far.
- Other Thoughts: Some of the mounting holes did not line up perfectly with my Antec Three Hundred case. I won't knock an Egg off for this, but as a bit of a perfectionist it bugged me to have to leave out a couple of screws.
Nice power supply
- Pros: Plenty of power for my setup. Cables are nicely wrapped in the netting sleaves. I found the cables to be plenty long in my case. I have the power supply installed at the bottom of my case. See other thoughts section for configuration. I would buy this power supply again.
- Cons: None.
- Other Thoughts: My configuration this power supply is powering is as follows.
Artic Cooler Freezer pro 7 rev. 2
Gigabyte GA-MA790GPT-UD3H
AMD Phenom II 550 Black (Overclocked)
G.skill 2x2 gig ripjaws F3-128600CL9
2 500 GB WD Caviar black drives
1 Sony Optiarc DVD drive
5 fans (4 x 120mm and 1 x 140mm)
No additional video card. MoBo has build in graphics.
Nice
- Pros: Provides power to my System Adequately and I have extra to spare. Plenty of extra peripheral connectors and nice cable lengths. Ultimate Bang for your buck
- Cons: None I can think of.
- Other Thoughts: Powers up my
ATI Radeon HD4890
Intel Core 2 Duo E7300 @3.01 GHz
3 Hard Drives, 1 DVD-Rom Drive
5 Case fans Including heatsink
flawlessly.
| Model |
| Brand |
Rosewill |
| Model |
RG630-2 |
| Spec |
| Type |
ATX12V v2.3 |
| Maximum Power |
Continuous 630W@40°C |
| Fans |

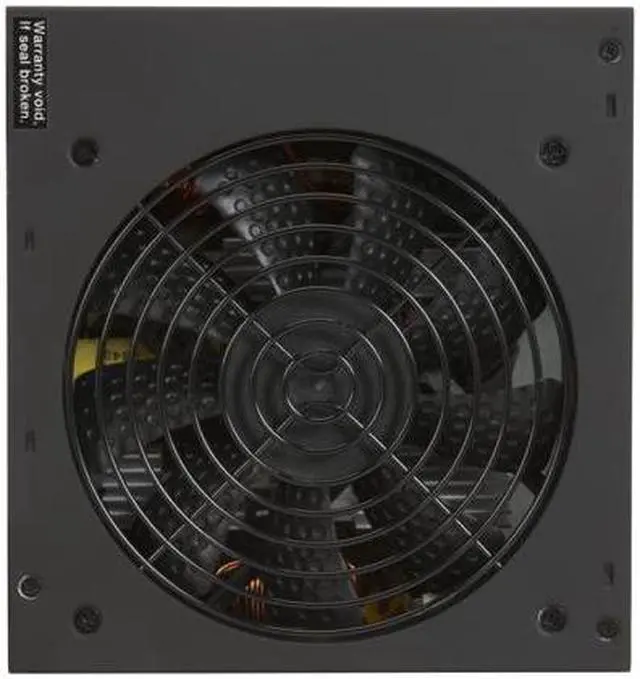

Silent 120mm Golf Fan |
| PFC |
Active |
| Main Connector |
20+4Pin |
| +12V Rails |
4 |
| PCI-Express Connector |
1 x 6-Pin, 1 x 6+2-Pin |
| SATA Power Connector |
6 |
| SLI |
Ready |
| CrossFire |
Ready |
| Modular |
No |
| Power Good Signal |
100-500ms |
| Hold-up Time |
16ms min. |
| Efficiency |
>80%, Up to 85% |
| Energy-Efficient |

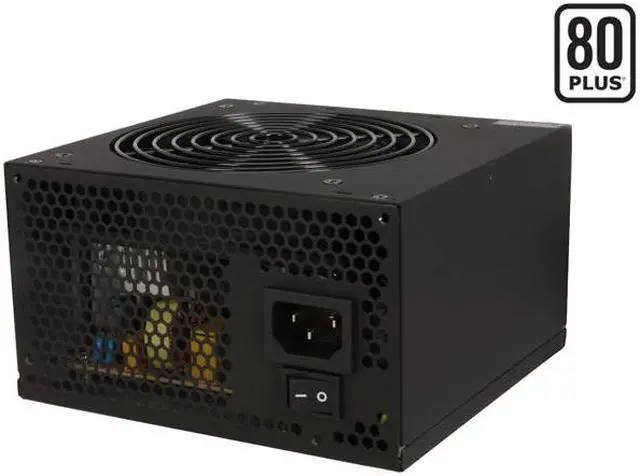

80 PLUS Certified |
| Over Voltage Protection |
+3.3V, +5V, +12V1, +12V2, +12V3, +12V4 |
| Input Voltage |
100 - 240 V |
| Input Frequency Range |
47 - 63 Hz |
| Input Current |
10A @ 115V, 5A @ 230V |

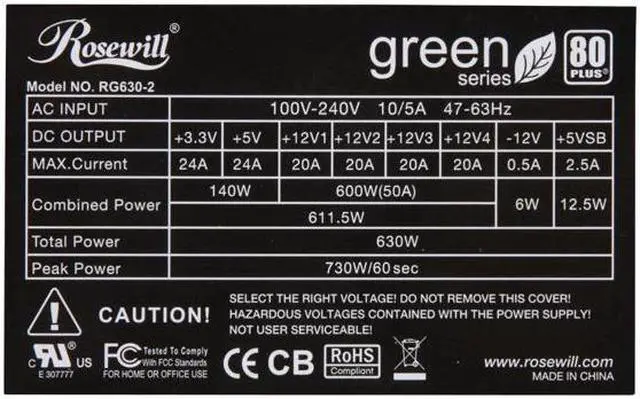

| Output |
+3.3V@24A,+5V@24A,+12V1@20A,+12V2@20A,+12V3@20A, +12V4@20A,-12V@0.5A,+5VSB@2.5A |
| MTBF |
>100,000 Hours |
| Approvals |
UL, FCC, CE, CB, ROHS |
| Dimensions |
5.91" x 3.39" x 5.51" |
| Weight |
4.62 lbs. |
| Features |

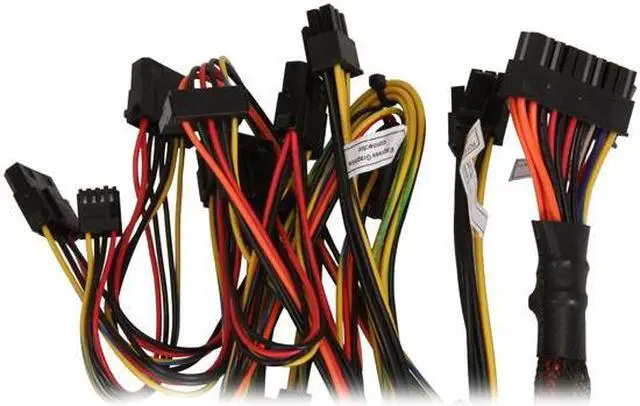

| Connectors |

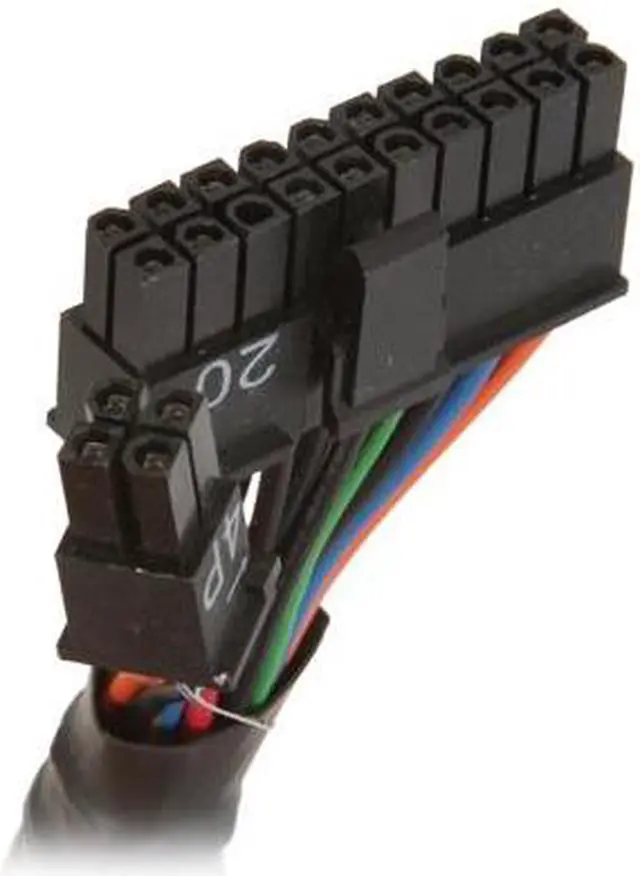

1 x 20+4Pin Main Connector
1 x 4+4Pin ATX12V/EPS12V Connector
1 x 6Pin PCI-E Connector
1 x 6+2Pin PCI-E Connector
6 x 4Pin Peripheral Connector
6 x 5Pin SATA Connector
1 x 4Pin Floppy Connector |
| Features |
Supports ATX12V v2.3 standard and older ATX12V v2.01 spec
Supports both Intel and AMD Systems
Four 12V rails provide independent reliable power
Active power Factor Correction(PFC) provides clean and reliable power to your system
Universal AC input 90~264V automatically scans and detects the correct voltage
SLI Ready – 1x 6pin & 1x 6+2pin Connectors
MAX 12V Combined Output 600W (50A)
MAX 3.3V, 5V Combined Output 140W
MAX 3.3V, 5V, 12V Combined Output 611.5W
1x Silent 120mm Golf Fan with Auto Fan Speed Control for better silence
Black Coating Housing

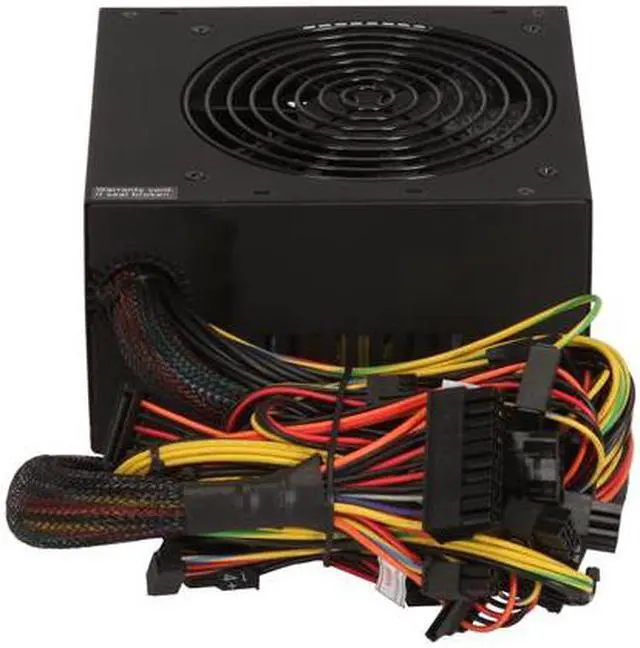

Mesh sleeving on all cables for easier cable routing and better ventilation
Over Temperature/Current/Voltage/Power Protection, Under Voltage Protection, and Short Circuit Protection provide maximum safety to your critical system components |
| Manufacturer Warranty |
| Parts |
2 years limited |
| Labor |
2 years limited |
|
Reviewed By: Marlowe on 12/17/2009
Tech Level: somewhat high - Ownership: 1 month to 1 year
