Item#: N82E16817182202

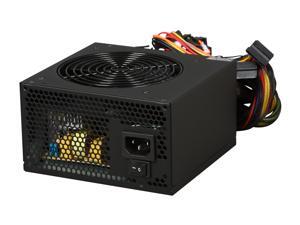

Rosewill Green Series RG430-S12 430W Continuous @40°C, 80 PLUS Certified, Single 12V Rail, Active PFC "Compatible with Core i7,i5" Power Supply

  • ATX12V v2.3
  • Single 12V Rail
  • 80 PLUS Certified
  • Pin It
  • Email this page
ICON Loading...

Today’s premium computer parts require quality power, but that doesn’t mean you have to spend a fortune. The Rosewill Green Series RG430-S12 430W power supply offers you everything you need to run contemporary PC components with ease.

The RG430-S12 has all of the connections you need for today’s hottest peripherals, including four 5pin SATA connectors for fast data transfer and a 6pin PCI-e connector for the most powerful video cards. The typical 4pin ATX12V/EPS12V connector is expandable to 8pins so you can use this power supply with your Core i5 or i7 Intel processor.

The RG430-S12 will also look great in your case with its black coating housing. All of the connectors are sleeved in mesh for better cable management and routing for increased air flow. Best of all, your system components are protected from under voltages and short circuits. Experience the Rosewill quality and build your next PC with the RG40-S12 430W power supply today!

  • newegg ATX12V and EPS12V Compatible Compatible with the ATX12V v2.3 & EPS12V v2.92 standards, the Rosewill Green Series RG430-S12 provides maximum power stability to drive the processors as well as other components for desktop and server computer systems.
  • newegg 430W Continuous Power A continuous power of 430W delivers safe, reliable output for mainstream computer systems. A strong +12 single rail ensures the maximum provision of 12V power to energy-hungry components such as CPU and VGA card, minimizing the likelihood of overload shut down.
  • newegg 80 PLUS Certified The 80 PLUS certified power supply provides high power efficiency of at least 80% at any load between 20% and 100%, saving your money on your electrical bill and reducing heat in your computer’s system and prolonging its life.
  • newegg Efficient Cooling A 120mm silent Golf fan plus Hexflo honey comb cutouts increase overall airflow in the power supply enclosure and help remove heat from the chassis simultaneously.

Learn more about the Rosewill RG430-S12

Model

Brand
Rosewill
Model
RG430-S12
Series
Green Series

Spec

Type
ATX12V v2.3 & EPS12V v2.92
Maximum Power
430W
Fans
1 x Silent 120mm Golf Fan
PFC
Active
Main Connector
20+4Pin
+12V Rails
Single
PCI-Express Connector
1 x 6-Pin
SATA Power Connector
4
Modular
No
Efficiency
> 80%, Up to 85%
Energy-Efficient
80 PLUS Certified
Over Voltage Protection
Yes
Overload Protection
Yes
Input Voltage
100 - 240 V
Input Frequency Range
47 - 63 Hz
Input Current
10A @ 115V, 5A @ 230V
Output
+3.3V@24A, +5V@24A, +12V@33A, -12V@0.5V, +5Vsb@2.5A
MTBF
>100,000 Hours
Approvals
UL, CUL, TUV, CB, FCC, ROHS
Dimensions
5.91" x 3.39" x 5.51"
Weight
3.85 lbs.

Features

Connectors
1 x 20+4-Pin Main Connector
1 x 4+4-Pin ATX12V/EPS12V Connector
1 x 6-Pin PCI-E Connector
6 x 4-Pin Peripheral Connector
4 x 5-Pin SATA Connector
1 x 4-Pin Floppy Connector
Features
Single 12V rail provide stable reliable power
Active power Factor Correction(PFC) provides clean and reliable power to your system
Universal AC input 90~264V automatically scans and detects
Black Coating Housing
Mesh sleeving on main cable for easier cable routing and better ventilation
Over Temperature/Current/Voltage/Power Protection, Under Voltage Protection, and Short Circuit Protection provide maximum safety to your critical system components

Manufacturer Warranty

Parts
2 years limited
Labor
2 years limited

Quick Info

Warranty

  • Limited Warranty period (parts): 2 years
  • Limited Warranty period (labor): 2 years


Customer Reviews of the Rosewill RG430-S12

Do you own this product? Write a Review

Filter Results

Go
  • N/A
  • 4/3/2013 10:34:42 AM
  • Tech Level: Average
  • Ownership: 1 month to 1 year
  • Verified Owner

4 out of 5 eggsWorks well, but...

Pros: Works well

Cons: Power cord disconnects at the slightest bump, turning the computer off.

1 out of 1 people found this review helpful. Did you? Yes No

  • Threefingers
  • 10/26/2012 9:34:04 AM
  • Tech Level: Somewhat Low
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsso far so good

Pros: Good power, not real hard to install. I think is a keeper.

Cons: None yet.

1 out of 1 people found this review helpful. Did you? Yes No

  • N/A
  • 10/10/2012 2:32:41 PM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggs RG 430

Pros: Provides good clean power
80 plus
Sleeved cables

Cons: None

1 out of 1 people found this review helpful. Did you? Yes No

  • none
  • 9/26/2012 3:19:34 PM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

4 out of 5 eggsRMA - All turned out OK

Pros: It works fine.
Cable for CPU power long enough for ATX mid tower housing to go to tower's cable compartment on the other side (not beneath MB) ....not too much extra but enough.

Cons: Instructions too brief.

Other Thoughts: I bought it and it did not seem to have voltages. Did RMA. What I forgot about was that these power supplies do not turn on most voltages until the PC is connected and turned on. If yours does not seem to work before installation...INSTALL IT. Feel stupid. Just wish I could retract the previous low (1 egg) rating I gave it before.

1 out of 1 people found this review helpful. Did you? Yes No

  • QuadroNVS
  • 9/25/2012 6:44:14 PM
  • Tech Level: Average
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggsStill running 1yr later

Pros: This PSU has been a champ its running my R6570 with my AMD phenom 6core at 3.0Ghz turbo , i havent had an issue with this PSU i hope it keeps running untill i plan to upgrade, the fan is still quiet and in ambient temps of 80- 90 F (my room temp in the summer)it still performed well i am very impress for what i payed for it

Cons: it a rosewill not a silverstone

Other Thoughts: great for the entry level gamer and great replacement PSU for an OEM machine

2 out of 2 people found this review helpful. Did you? Yes No

  • FLUFFDAD
  • 9/8/2012 3:57:02 PM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsworks

Pros: using the KILL A WATT meter it only draw 80-114 watts

Cons: the female plug (above the switch) on the PSU is loose. kind of makes me feel uncomfortable.

Other Thoughts: MY SPECS
CPU
AMD A8-3870K Unlocked Llano 3.0GHz Socket FM1 100W Quad-Core Desktop APU

MOBO
ASUS F1A55-M/CSM FM1

CPU COOLER
COOLER MASTER GeminII M4 RR-GMM4-16PK-R2

HTPC case
SILVERSTONE Black Aluminum / Steel Grandia Series SST-GD08B

RAM
G.SKILL Ripjaws X Series 8GB (2 x 4GB) DDR3 SDRAM DDR3 1866 Model F3-14900CL9D-8GBXL

WiFi Card
Rosewill RNX-N300X

PSU
Rosewill Green Series RG430-S12 430W 80 PLUS Certified

KEYBOARD/MOUSE
IOGEAR GKM561R Black 2.4GHz Wireless HTPC Multimedia Keyboard with Laser Trackball and Scroll Wheel

2 out of 2 people found this review helpful. Did you? Yes No

  • Groundrat
  • 8/18/2012 9:59:23 AM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsPlain jane performs

Pros: -Single 12V rail is dependable and robust.
-Matte black finish is classy.
-Mesh wrapped cables slide well and all connectors are sturdy and well made.

Cons: -At this price point, there frankly aren’t any.

Other Thoughts: GigaByte GA-GF1MT MB
4GB Gskill DDR3 @1033
160GB Samsung HD @7800
XFX 9800 GTX GPU
RG-430 430W PS

NEVER buy a power supply that isn't a single rail. They die. They fry your components.

1 out of 1 people found this review helpful. Did you? Yes No

  • King_Arthur
  • 8/13/2012 11:23:23 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

4 out of 5 eggsGood Budget PSU

Pros: I picked these up at a seriously discounted price for a generic 2U virtualization lab build out. Reasonable build quality (see cons), quiet, good packaging.

Cons: Molex connectors aren't the highest quality. I was installing Antec and Thermaltake PSUs along side these and I could tell a difference when plugging fans up to the molex connectors. One of the PSUs (out of 4) also had a loose AC plug receptacle.

Other Thoughts: I would buy these at the discounted price again without hesitation, but I likely wouldn't pay full price and I wouldn't use them in a high power desktop build.

1 out of 1 people found this review helpful. Did you? Yes No

  • N/A
  • 8/7/2012 7:33:13 PM
  • Tech Level: Average
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsbest psu under 50?

Pros: Great PSU. Im using it in my gaming rig with a mid range processor and video card. It runs cool, almost no hot air coming out of it. Its 80 plus certified of course. Has black sleeved cable for a clean, organized case. Cables are long enough and have a lot of connections.

Cons: none so far, wish i had a modular one though but thats just nitpicking

1 out of 2 people found this review helpful. Did you? Yes No

  • tdemore
  • 7/18/2012 2:39:54 PM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsWorks Great

Pros: 80 PLUS Certified, Active PFC, Very quiet 120mm temperature controlled fan, small size works well in smaller microATX cases.

Cons: None

Other Thoughts: Provides plenty of power for a system with an Intel i5-3570K processor, 8GB of DDR3 1600 memory, 2 Western Digital 7200 RPM 1GB Black hard drives in RAID 1 array, 60GB mSata SSD, ASUS 24x DVD burner and a Roswill 74 in 1 memory card reader. UPS software indicates power usage is usually below 100 watts, and never exceeds 110 watts.

1 out of 1 people found this review helpful. Did you? Yes No
