XCLIO STABLEPOWER 850W 850W ATX CrossFire Ready Active PFC Power Supply

(25) Write a Review
  • ATX
  • 100 - 240 V
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (25)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the XClio STABLEPOWER 850W

General
Brand XCLIO
Model STABLEPOWER 850W
Details
Type ATX
Maximum Power 850 W

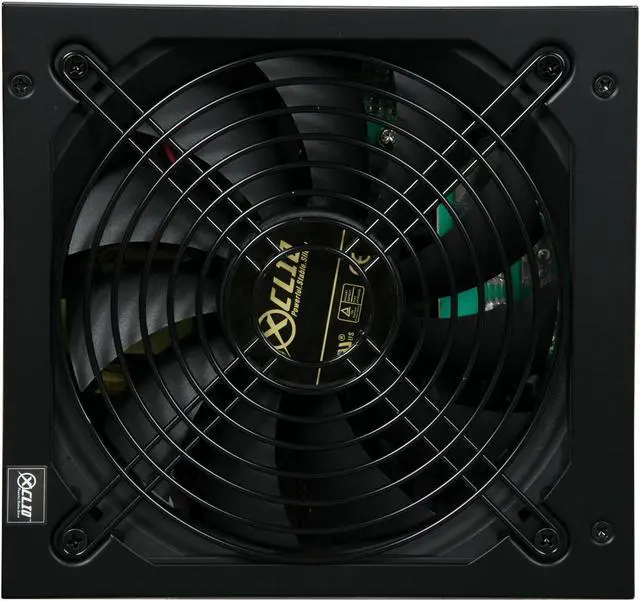

Fans 1 x 14cm
PFC Active
Main Connector 20+4Pin
+12V Rails 2
PCI-Express Connector 4 x 6-Pin
SATA Power Connector 8
CrossFire CrossFire Ready
Modular No
Power Good Signal 100-500ms
Hold-up Time 17ms min.
Efficiency 80% under full Load at nominal input voltage
Over Voltage Protection YES, +3.3V, +5V and +12V.
Overload Protection YES, +3.3V, +5V.
Input Voltage 100 - 240 V
Input Frequency Range 50/60 Hz
Input Current 12 - 6A

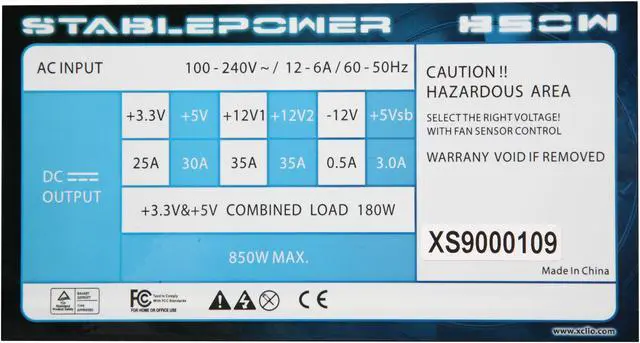

Output +3.3V@25A, +5V@30A, +12V1@35A, +12V2@35A, [email protected], [email protected]
MTBF 100K hrs minimum, 25°C ambient
Approvals UL, CUL, TUV, CB, VDE, FIMKO, DEMKO, NEMKO, SEMKO

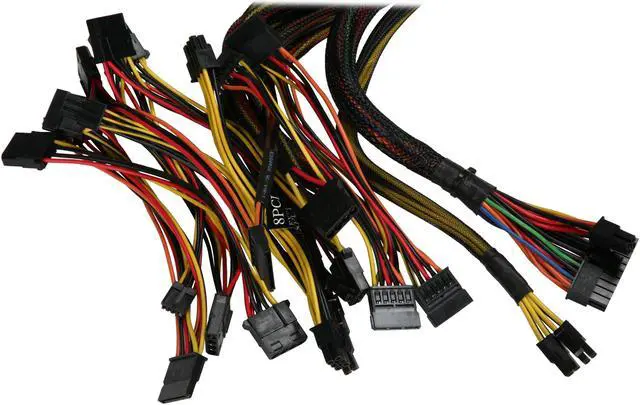

Connectors 1 x Main connector (20+4Pin)
1 x 12V(4+4Pin)
8 x peripheral
8 x SATA
1 x Floppy
4 x PCI-E
Features
Features 1. Maximum continuous total DC output power should not exceed 850W for STABLEPOWER 850W
2. Maximum continuous combined load on +3.3 VDC and +5 VDC outputs shall not exceed 180W for STABLEPOWER 850W.
3. Maximum peak total DC output power should not exceed 900W for STABLEPOWER 850W.
4. Peak power and current loading shall be supported for a minimum of 12 second.
5. Maximum combined current for the 12 V outputs shall be 70A.
6. Peak current for the combined 12V outputs shall be 70A.
Additional Information
First Listed on Newegg November 01, 2006

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
