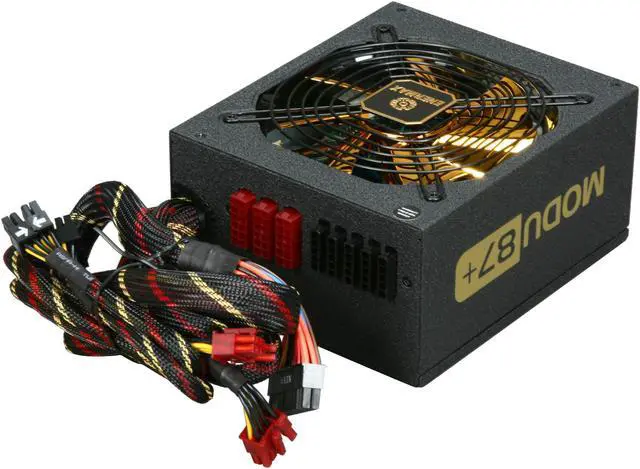

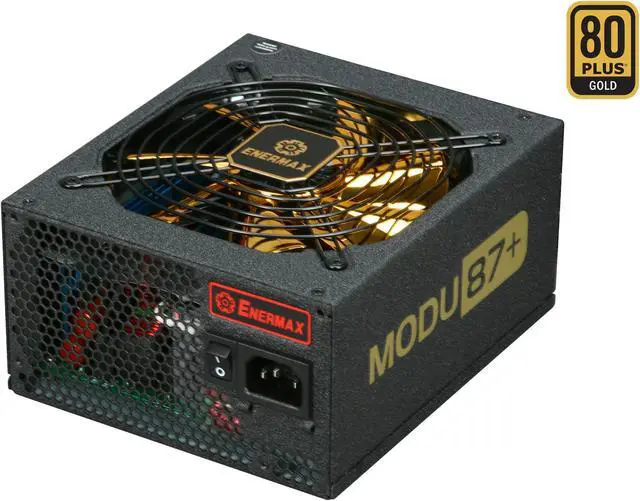

ENERMAX MODU87+ EMG900EWT 900W (Peak 990W) ATX12V v2.3 / EPS12V SLI Ready CrossFire Ready 80 PLUS GOLD Certified Modular Active PFC Power Supply
- ATX12V v2.3 / EPS12V
- Modular
- 80 PLUS GOLD Certified
- 100 - 240 VAC, (Max. range: 90 - 265 VAC) 50/60 Hz
- +3.3V@24A, +5V@24A, +12V1@30A, +12V2@30A, +12V3@30A, +12V4@30A, [email protected], [email protected]
Specs
Reviews (9)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ENERMAX EMG900EWT
| Brand | ENERMAX |
|---|---|
| Series | MODU87+ |
| Model | EMG900EWT |
| Type | ATX12V v2.3 / EPS12V |
|---|---|
| Maximum Power | 900W (Peak 990W) |

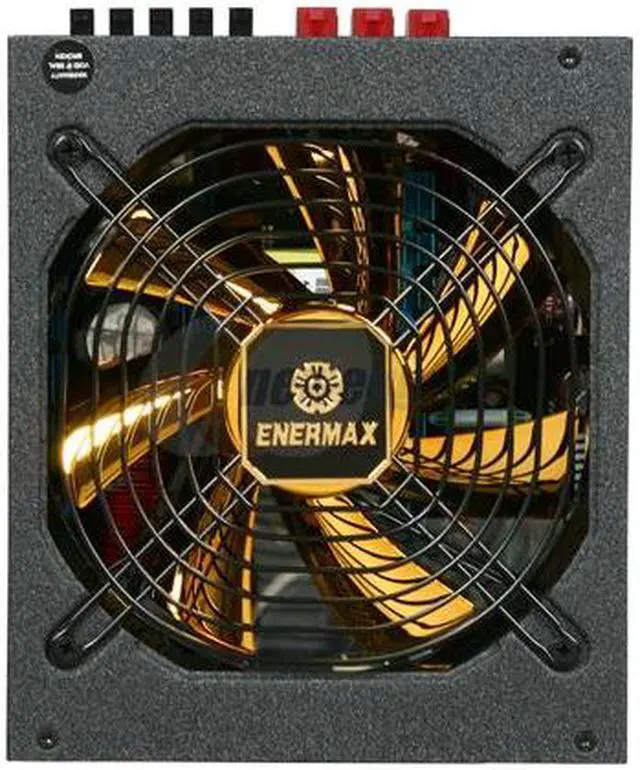

| Fans | 1 x 139mm twister bearing fan |
| PFC | Active |
| Main Connector | 24Pin |
| +12V Rails | 4 |
| PCI-Express Connector | 6 x 6+2-Pin |
| SATA Power Connector | 12 |
| SLI | SLI Ready |
| CrossFire | CrossFire Ready |
| Modular | Modular |
| Energy-Efficient | 80 PLUS GOLD Certified |
| Over Voltage Protection | Yes |
| Input Voltage | 100 - 240 VAC, (Max. range: 90 - 265 VAC) |
| Input Frequency Range | 50/60 Hz |
| Input Current | 11.5A - 5A |

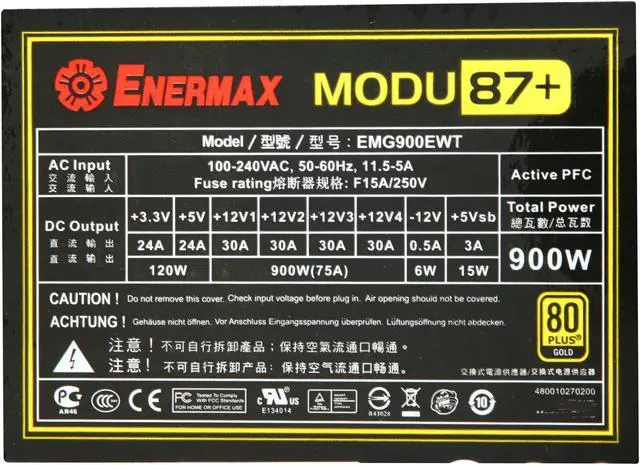

| Output | +3.3V@24A, +5V@24A, +12V1@30A, +12V2@30A, +12V3@30A, +12V4@30A, [email protected], [email protected] |
| MTBF | >100,000 Hours |
| Approvals | Safety: UL/cUL(Level 6), TUV, CCC, GOST, CB, BSMI EMC: CE, FCC, KCC |

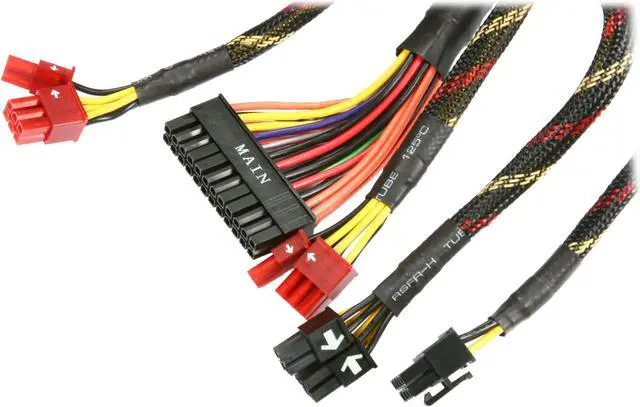

| Connectors | 1 x Main connector (24 Pin) 1 x 4+4 Pin 12V 1 x 8 Pin 12V 8 x Peripheral 12 x SATA 1 x Floppy 6 x PCI-E |
| Features | 87PLUS ready - Extreme efficiency PSU series with 87-92% efficiency @ 20-100% load. Certified to meet 80 PLUS GOLD requirements Speed Guard - The world’s leading fan control starting with unmatched 330RPM to a maximum of 1000RPM for optimal cooling and minimum noise Dynamic Hybrid Transformer Topology - Technological breakthrough topology using a staged dynamic transformer array for extremely high efficiency with the most durable and stable output at any load Hybrid Capacitor Array - High-performance capacitor array of heavy-duty solid state capacitors & Japanese electrolytic capacitors to ensure tightest DC stability and regulation C6 & Hybrid ready - Maximum compatibility with C6 & hybrid states of current and future CPU & GPU generations by ZERO LOAD Design (no minimum load) Future ready - 12P modular design for possibly upcoming new CPU and GPU 10P and/or 12P connectors DXXI ready - 100% 6+2P (8P) PCI-E connector to support new generation DXXI graphic cards 24/7 @ 50°C ready - Non-Stop industrial class performance at 50°C ambient GAMING ready - ATX12V v2.3 support for latest Intel Core 2 Duo/Quad/Extreme/i7/i5, and AMD Athlon 64X2 & Phenom II Heat Guard - Keeping PSU fan running for 30-60 seconds after shutdown to dissipate the remaining system heat and prolonging system lifetime SafeGuard- Industry-leading octuple protection circuitry of OCP, OVP, AC UVP, DC UVP, OPP, OTP, SCP & SIP |
|---|
| Dimensions | 6.30" x 5.91" x 3.39" |
|---|
| Date First Available | August 17, 2010 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 5 years
- Limited Warranty period (labor): 5 years
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-626-913-8899
- Support Email: [email protected]
- Support Website
